ebm-papst D2E 097 Series Centrifugal Fan, 230 V ac, AC Operation

RS Stock No.:: 826-1109
Mfr. Part No.:: D2E097-CB01-02
Manufacturer:: ebm-papst

ebm-papst D2E 097 Series Centrifugal Fan, 230 V ac, AC Operation

Stock check temporarily unavailable - call for stock availability

Added

Price Each

MYR1,009.18

Units	Per Unit
1 - 5	MYR1,009.18
6 - 14	MYR980.93
15 - 24	MYR940.56
25 +	MYR914.33

RS Stock No.:: 826-1109
Mfr. Part No.:: D2E097-CB01-02
Manufacturer:: ebm-papst

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: DE

Product Details

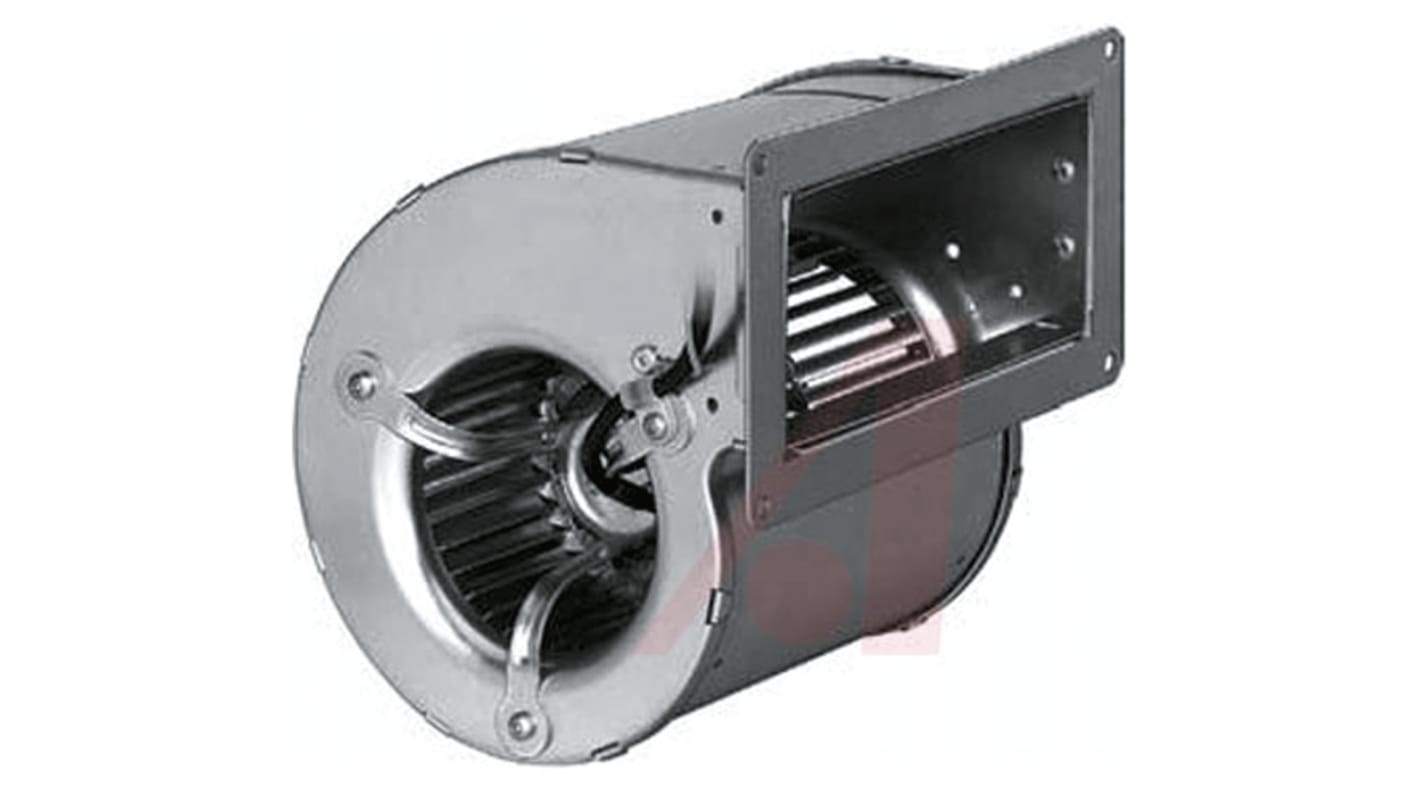

ebm-papst AC Centrifugal Fan

The ebm-papst dual inlet centrifugal fan has an airflow of 180m³/h (for 50Hz) at 1650rpm fan speed and has a supply voltage rating of 230VAC. It is a high-performance fan motor blower with an external rotor motor. The fan is featured with the forward curved, long blade. This dual inlet centrifugal blower is integrated within the impeller that reduces installation dimensions. Constructed from die-cast aluminium, ebm-papst blowers are rugged and have a long life.
Note:
To prevent overloading the motor, these blowers must be operated against the minimum static pressures.

Features and Benefits

Sealed for life
Maintenance free
Class B insulation
Impeller is forward curved multi-vane type
Scroll die-cast with motor capacitor, mounting flange and finger guard/ filter fixings
Ball bearing type, may be mounted in any position

Applications

Industrial use
Central air conditioning units or building ventilation systems
Automobile

Certifications

CE certified

Note

Capacitor not supplied with the centrifugal fan

Specifications

Attribute	Value
Supply Voltage	230 V ac
Blower Type	Centrifugal
AC or DC Operation	AC
Series	D2E 097
