- RS Stock No.:
- 191-9433
- Mfr. Part No.:
- 9TN24P1H01
- Manufacturer:
- Sanyo Denki
- RS Stock No.:
- 191-9433
- Mfr. Part No.:
- 9TN24P1H01
- Manufacturer:
- Sanyo Denki
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- PH

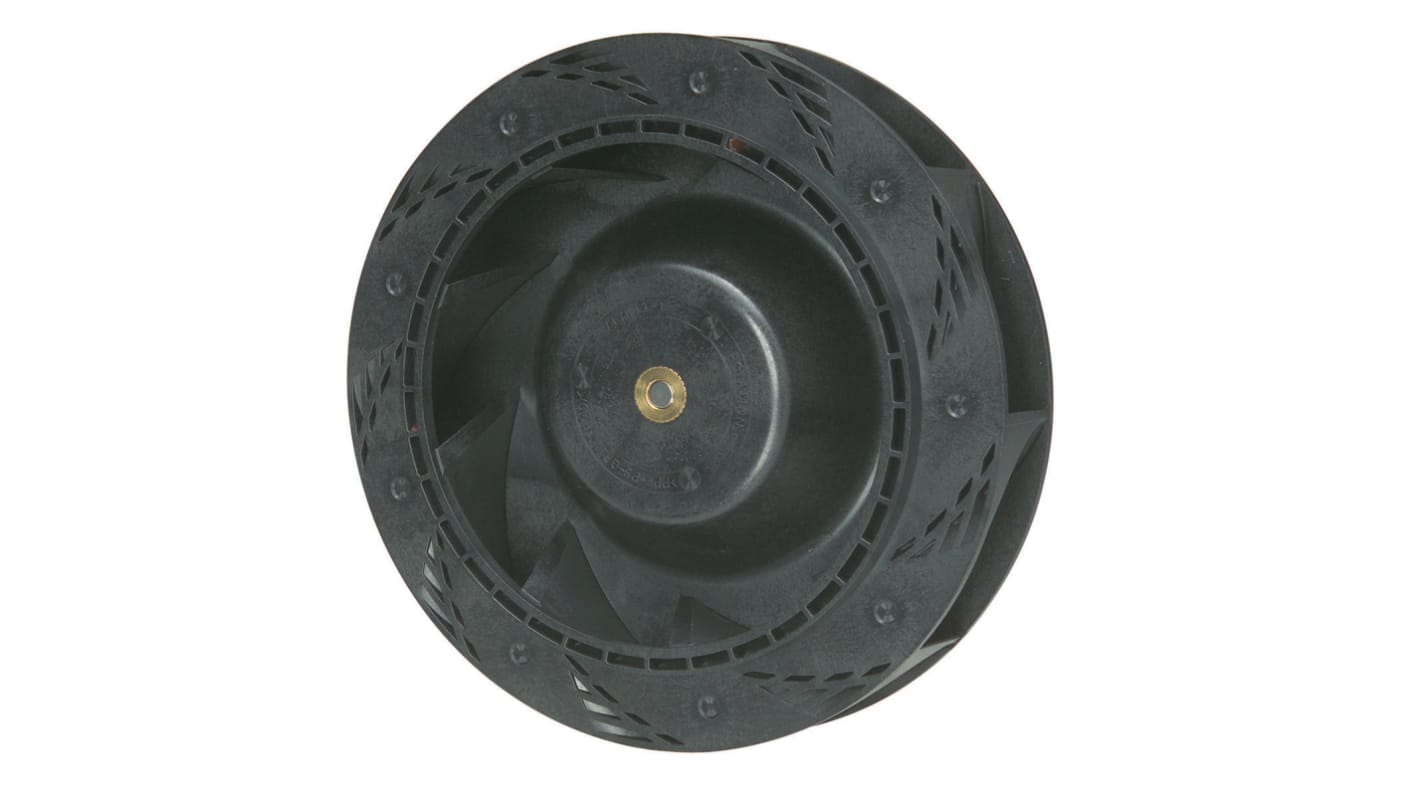

Product Details
Centrifugal Fans blow air perpendicular to the inlet direction. They particularly excel in static pressure, and are ideal for cooling high mounting density equipment including servers storage systems, and heat exchangers.
Specifications
Attribute | Value |
---|---|
Supply Voltage | 24 V dc |
Blower Type | Centrifugal |
AC or DC Operation | DC |
Air Flow | 135cfm |
Series | San Ace C150 |
Height | 150mm |
Width | 150mm |
Depth | 35mm |
Dimensions | 150 x 150 x 35mm |
Fan Speed | 3800rpm |
Noise Level | 59dB(A) |
Mounting Hole Spacing | 64mm |
Direction of Curve | Forward |
Static Pressure | 410Pa |
Maximum Current | 620mA |
Sensor Type | PWM |
Termination Type | Lead Wire |
Special Features | 50/60 Hz, 500 VAC, for 1 Minute, Impeller:Plastic (Flammability: UL 94V-0), Locked Rotor Burnout Protection, Motor Case:Aluminum (Black Coating), Reverse Polarity Protection |
Inlet Diameter | 105mm |
Mounting Hole Diameter | 4mm |
Outlet Diameter | 0 |
Horizontal Hole Spacing | 64mm |
Vertical Hole Spacing | 64mm |
