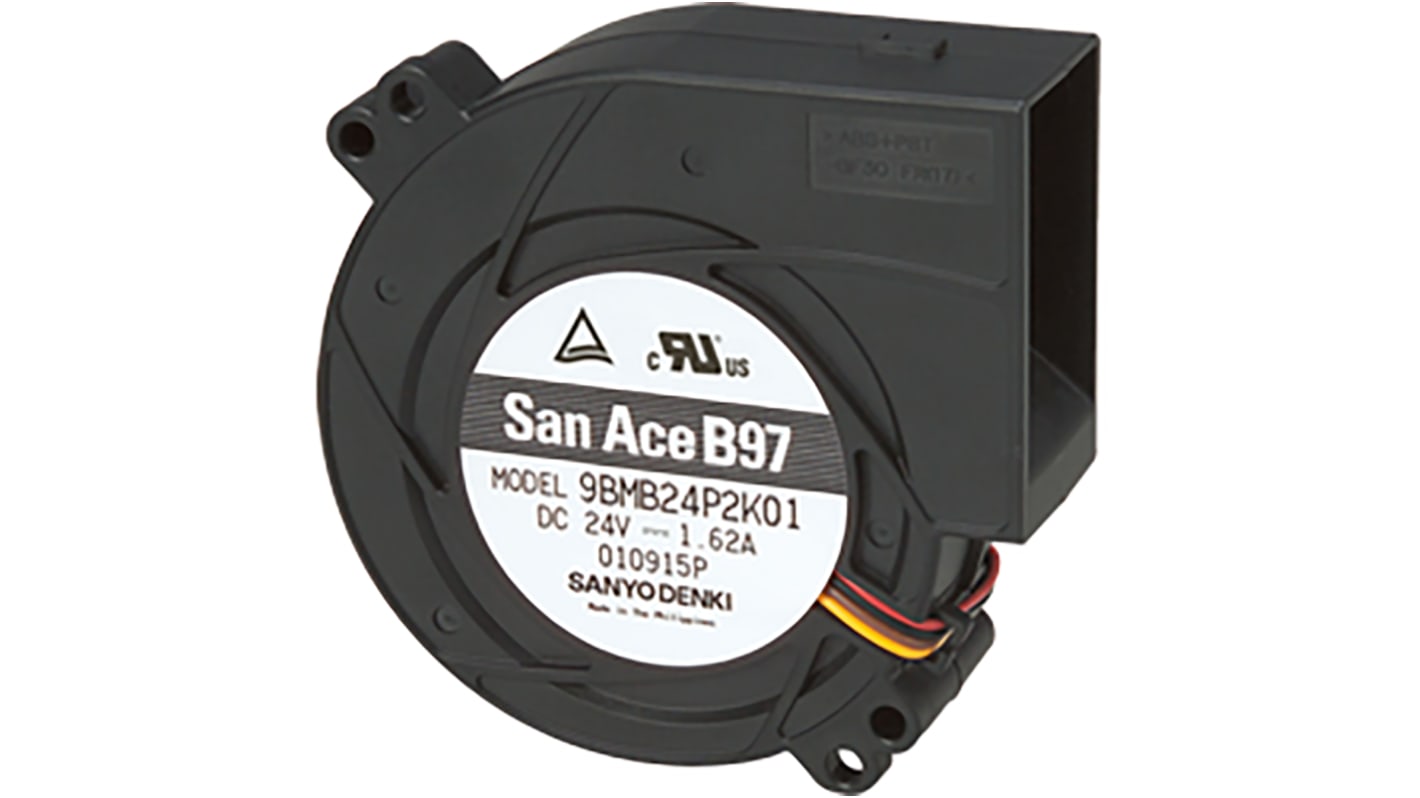

Sanyo Denki San Ace B97 Series Blower, 24 V dc, 43.1cfm, DC Operation, 97 x 97 x 33mm
- RS Stock No.:
- 191-9314
- Mfr. Part No.:
- 9BMB24S201
- Manufacturer:
- Sanyo Denki
52 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR227.18
| Units | Per Unit |
| 1 - 4 | MYR227.18 |
| 5 - 9 | MYR222.41 |
| 10 - 24 | MYR215.75 |
| 25 - 49 | MYR210.46 |
| 50 + | MYR205.85 |
- RS Stock No.:
- 191-9314
- Mfr. Part No.:
- 9BMB24S201
- Manufacturer:
- Sanyo Denki
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- PH
Product Details
With high static pressure, Blowers are suitable for cooling equipment with high system impedance and high heat generation such as servers, storage systems, and base stations.
Specifications
Attribute | Value |
|---|---|
| Supply Voltage | 24 V dc |
| Blower Type | Blower |
| AC or DC Operation | DC |
| Air Flow | 43.1cfm |
| Series | San Ace B97 |
| Height | 97mm |
| Width | 97mm |
| Depth | 33mm |
| Dimensions | 97 x 97 x 33mm |
| Fan Speed | 5250rpm |
| Noise Level | 59dB(A) |
| Mounting Hole Spacing | 71 x 71mm |
| Direction of Curve | Backward |
| Maximum Current | 700mA |
| Static Pressure | 610Pa |
| Termination Type | Lead Wire |
| Vertical Hole Spacing | 71mm |
| Inlet Diameter | 56mm |
| Sensor Type | PWM |
| Special Features | 50/60 Hz, 500 VAC, for 1 Minute, Frame:Plastic (Flammability: UL 94V-0), Impeller:Plastic (Flammability: UL 94V-0), Locked Rotor Burnout Protection, Reverse Polarity Protection |
| Horizontal Hole Spacing | 71mm |
| Mounting Hole Diameter | 4.5mm |
