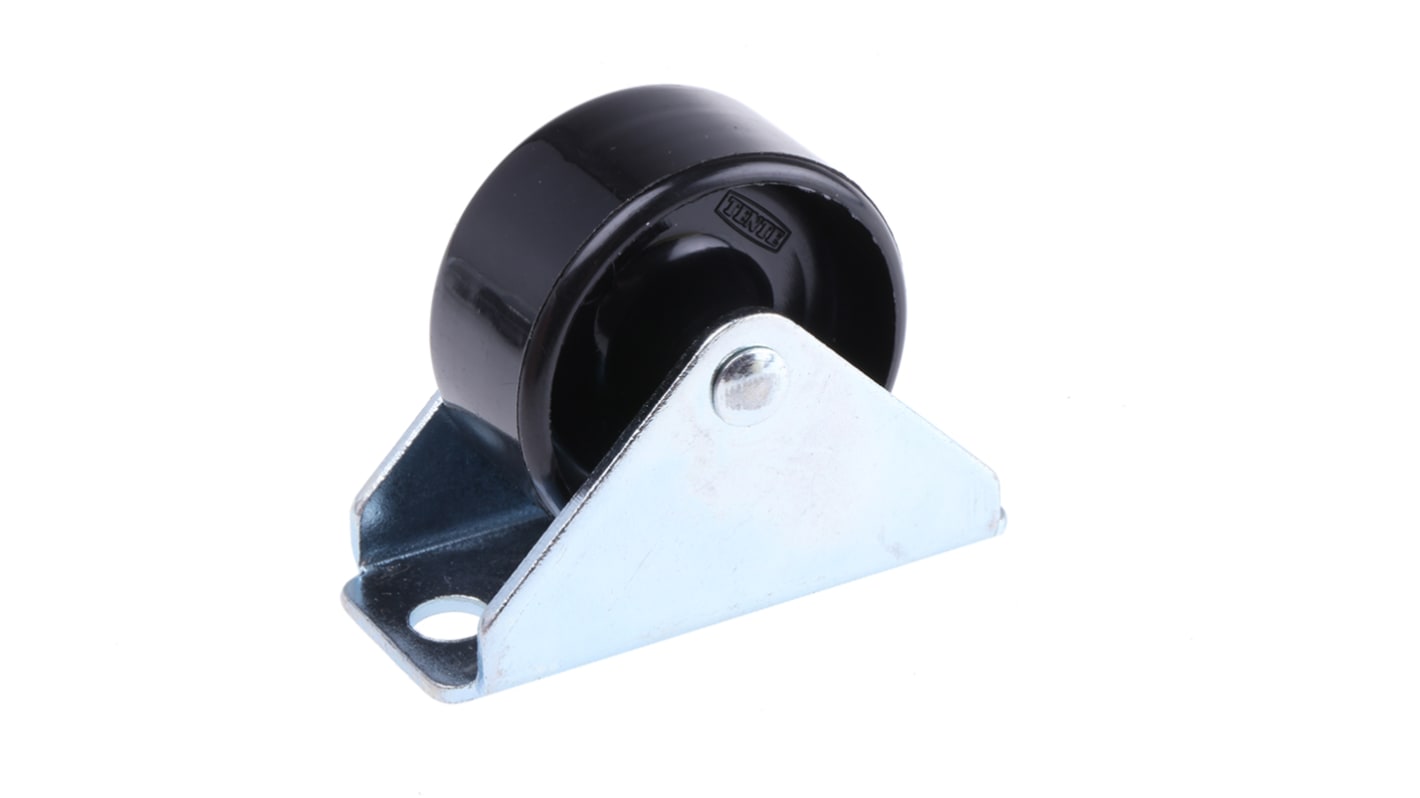

Tente Fixed Castor Wheel, 60kg Load Capacity, 30mm Wheel Diameter

  • RS Stock No. 795-6238
  • Mfr. Part No. 2198UOI030P60-45x20
  • Manufacturer Tente
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Tente Fixed Rectangular Plate Castor

Pressed steel fixed castor in a rectangular plate design. Series offers a compact & lighweight option for light-duty applications. Available in both 25 & 30mm wheel diameters, they offer excellent attrition properties, with good roll performance & low movement noise

Bright Zinc plated pressed fixed castor in a rectangular mounting plate design
Polyamide wheel centre accompanied by a plain bearing
D 75 Shore hardness
25kg (50kg static) & 30kg (60kg static) load capacities available
25 & 30mm wheel diameters available

Standards

EN 12528

Specifications
Attribute Value
Wheel Diameter 30mm
Load Capacity 60kg
Overall Height 34mm
Wheel Width 15mm
Fixing Plate Dimensions 20 x 45mm
Rotation Fixed
Application Institutional
Tyre Material Polyamide
Includes Brake No
Weight Class Light Duty
Features Corrosion Resistant
Number of Fixing Holes 2
Fixing Hole Size 5.5mm
Hub Bearing Type Plain Bearing
Hub Material Polyamide
66 In Global stock for delivery within 4 - 6 working days
Price 1 Bag of 10
MYR 40.52
Bag(s)
Per Bag
Per unit*
1 - 5
MYR40.52
MYR4.052
6 - 11
MYR39.53
MYR3.953
12 +
MYR38.69
MYR3.869
*price indicative
