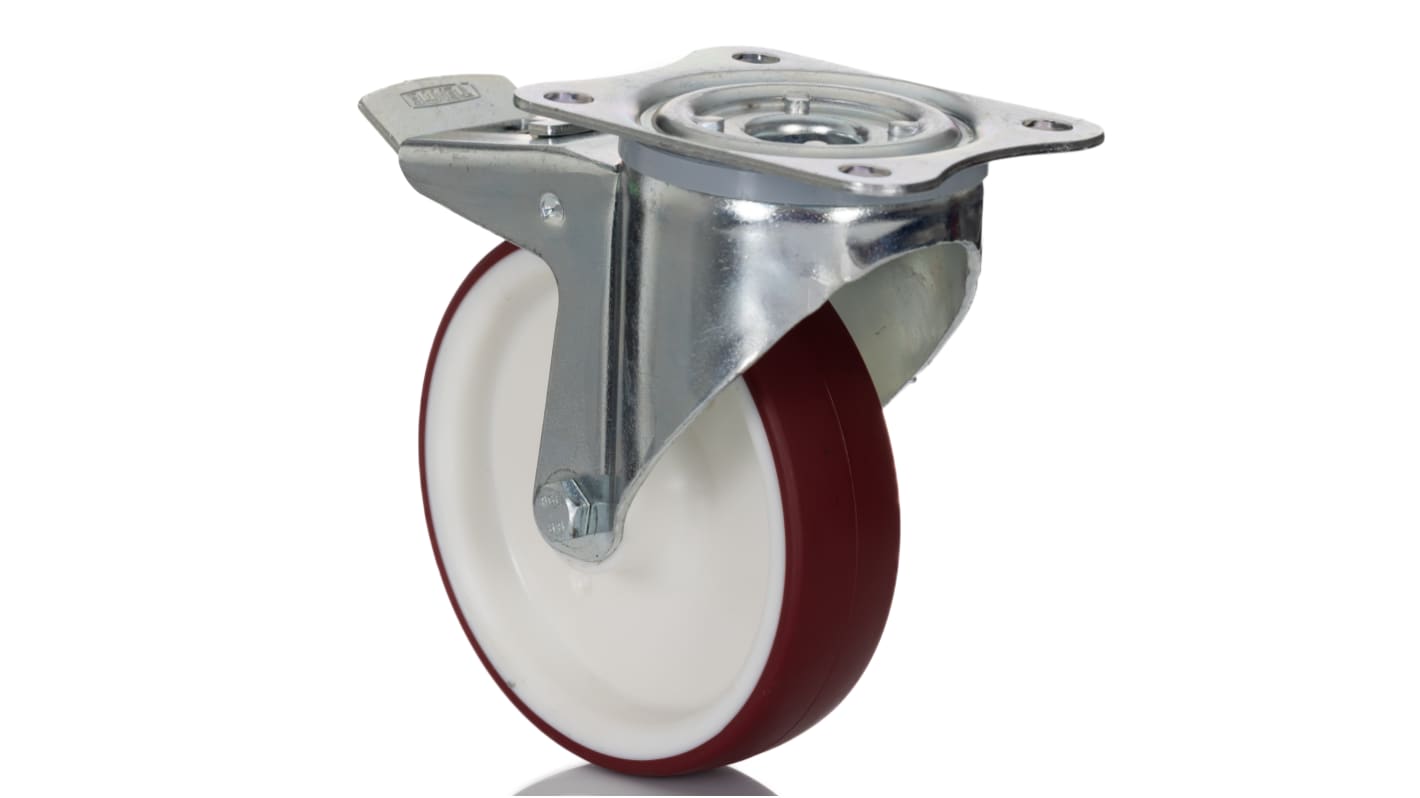

Tente Swivel Castor, 300kg Load Capacity, 125mm Wheel Diameter

  • RS Stock No. 787-1402
  • Mfr. Part No. 3477UAR125P62 red
  • Manufacturer Tente
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Red Polyurethane Tyre, Zinc Plated, Tente

Tente Zinc plated castor. These castors are available as locking or non-locking and feature universal fittings for easy alteration and maintenance. The body is manufactured from zinc plated steel that has been blue passivated for improved corrosion resistance. The wheels are manufactured from durable nylon polyamide with roller bearing and polyurethane tread. These castors are a good alternative for those wanting a quieter castor with softer contact.

Swivel head versions have a double ball bearing head
Polyamide wheel with roller bearing
Red polyurethane tread
Passivated Body for corrosion resistance

Tente 300 kg Red Nylon Polyamide Wheel - Roller Bearing and Zinc Plated Castors

Tente swivel castor wheel range are made of durable red nylon polyamide with roller bearing, this material makes them strong, touch and impact resistant. Polyamide is also high temperature and solvent resistant. Zinc plated steel has been used for the body which has also been blue passivated for improved corrosion resistance. Hard tread wheels are easier to push and provide ease of movement and mobility whilst making them ideal for a heavy load.


Solid Nylon is used for the tread of the wheels and is a popular choice for quieter caster wheels as they a provider a softer contact with the floor. Unaffected by water the Nylon wheels have a heavy load capacity also.

Features and Benefits:

• Low rolling resistance which is ideal for heavy duty and industrial environments
• Total lock (braked) with dust guard
• Withstand temperatures of -40°C to 80°C
• Heavy duty and durable
• Swivel
• Plate fitting

Applications:

Food processing areas
Cold rooms
Industrial
Medical

Specifications
Attribute Value
Wheel Diameter 125mm
Load Capacity 300kg
Overall Height 155mm
Wheel Width 32mm
Fixing Plate Dimensions 105 x 85mm
Rotation Braked Swivel
Application Industrial
Tyre Material Polyamide
Includes Brake Yes
Fixing Centres 80 x 60mm
Weight Class Heavy Duty
Features Roller Bearing
Number of Fixing Holes 4
Fixing Hole Size 9mm
Hub Bearing Type Roller Bearing
Hub Material Polyamide
264 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 72.24
units
Per unit
1 - 5
MYR72.24
6 - 11
MYR70.45
12 +
MYR68.58
