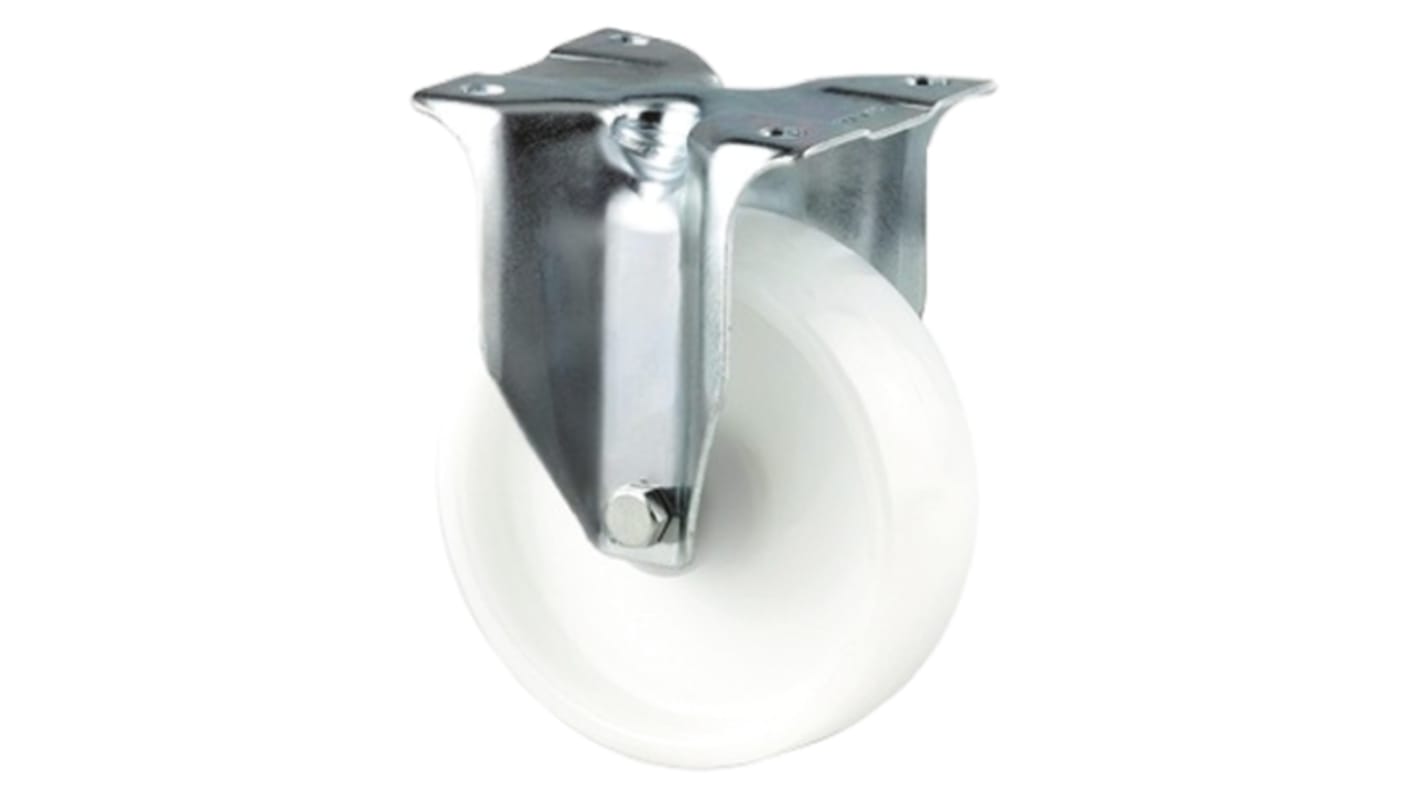

Tente Fixed Castor Wheel, 400kg Load Capacity, 100mm Wheel Diameter

  • RS Stock No. 787-1348
  • Mfr. Part No. 3478UOR100P62
  • Manufacturer Tente
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Nylon Polyamide Wheel - Roller Bearing, Zinc Plated, Tente

Tente Zinc plated castor. These castors are available as locking or non-locking and feature universal fittings for easy alteration and maintenance. The wheels are manufactured from durable nylon polyamide with roller bearing. The body is manufactured from zinc plated steel that has been blue passivated for improved corrosion resistance. These castors have a low rolling resistance and are very durable.

Swivel head versions have a double ball bearing head
Polyamide wheel with roller bearing
Passivated Body for corrosion resistance

Hard Tread - Polyamide / Nylon Wheel

Hard tread wheels are the easiest to push and offer the easiest movement and mobility. Solid Nylon is a floor-friendly alternative to cast iron, which is unaffected by water and has a load capacity approaching that of cast iron. Solid Nylon wheels are the most popular choice as they will not damage solid compacted floors such as cement or tile etc and have good load carrying capacity. Nylon wheels are used widely in food processing areas.

Specifications
Attribute Value
Wheel Diameter 100mm
Load Capacity 400kg
Overall Height 128mm
Wheel Width 36mm
Fixing Plate Dimensions 85 x 103mm
Rotation Fixed
Application Industrial
Tyre Material Polyamide
Includes Brake No
Fixing Centres 60 x 80mm
Weight Class Heavy Duty
Features Corrosion Resistant
Number of Fixing Holes 4
Fixing Hole Size 9mm
Hub Material Polyamide
Hub Bearing Type Roller Bearing
99 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 23.74
units
Per unit
1 - 5
MYR23.74
6 - 11
MYR22.55
12 +
MYR21.34
