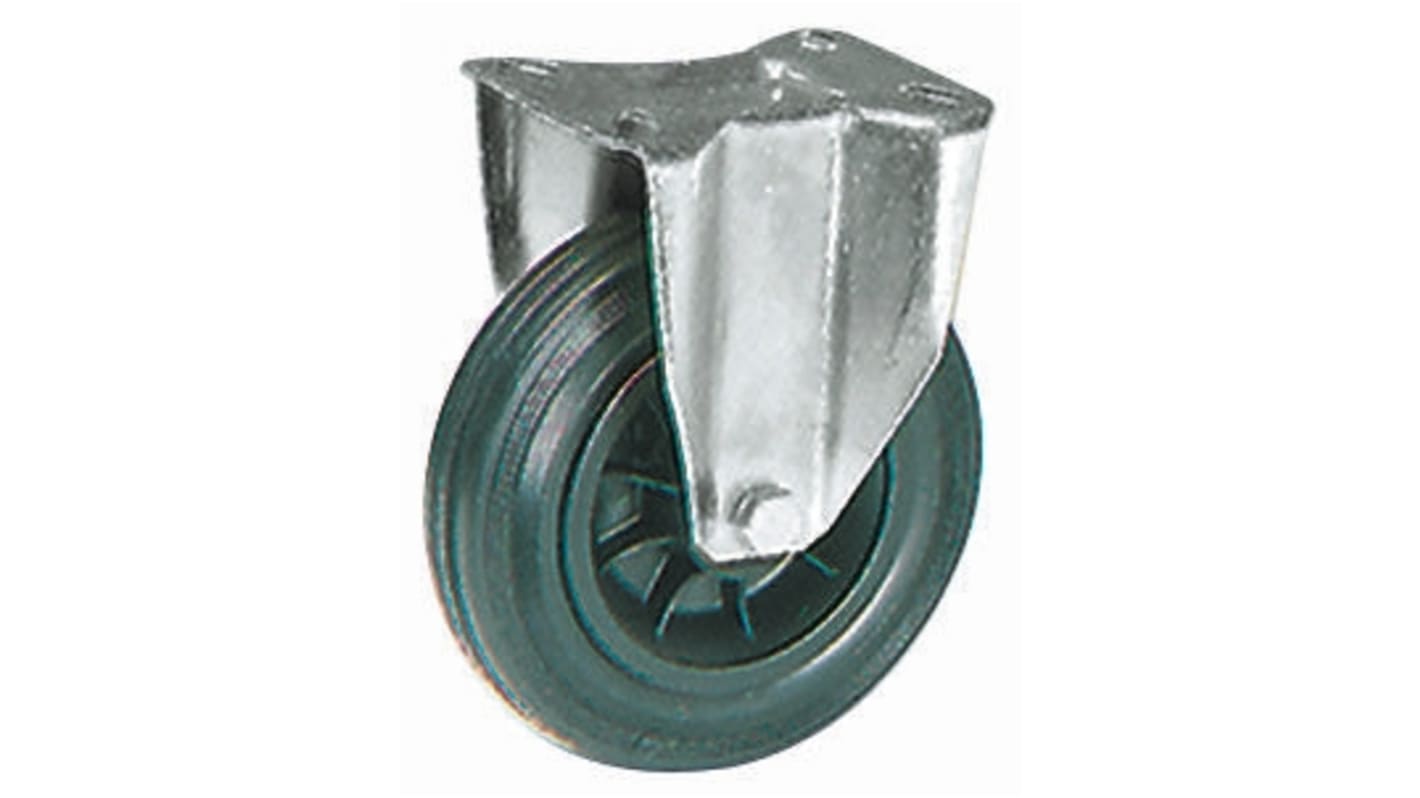

LAG Fixed Castor Wheel, 75kg Load Capacity, 100mm Wheel Diameter

  • RS Stock No. 667-9472
  • Mfr. Part No. 14108
  • Manufacturer LAG
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): IT
Product Details

Black Rubber Tyre, RoHS, Black Nylon Hub, Medium Duty, Series M22

Black rubber tyre, plastic hub; electro-zinc plated castor, white RoHS compliant
Suitable for use on medium to poor surfaces
Fitted with PA6 plain bearings
Double ball race swivel head castor
Temperature range -20°C to +60°C
Hardness 85+/-5 Shore A
Wheel series D

Rubber tyred wheels are available in a wide range of sizes, load capacities and colours with a choice of nylon, plastic, cast iron and pressed metal centres. Rubber tyred wheels are suitable for use on most floors.

Specifications
Attribute Value
Wheel Diameter 100mm
Load Capacity 75kg
Overall Height 128mm
Wheel Width 30mm
Fixing Plate Dimensions 102 x 83mm
Rotation Fixed
Application Industrial
Tyre Material Rubber
Includes Brake No
Fixing Centres 80 x 60mm
Weight Class Light Duty
Number of Fixing Holes 4
Fixing Hole Size 8mm
Hub Bearing Type Plain Bore
Hub Material Thermoplastic
13 In Global stock for delivery within 4 - 6 working days
Price Each
Was MYR42.52
MYR 39.60
units
Per unit
1 - 7
MYR39.60
8 - 23
MYR38.20
24 +
MYR36.56
