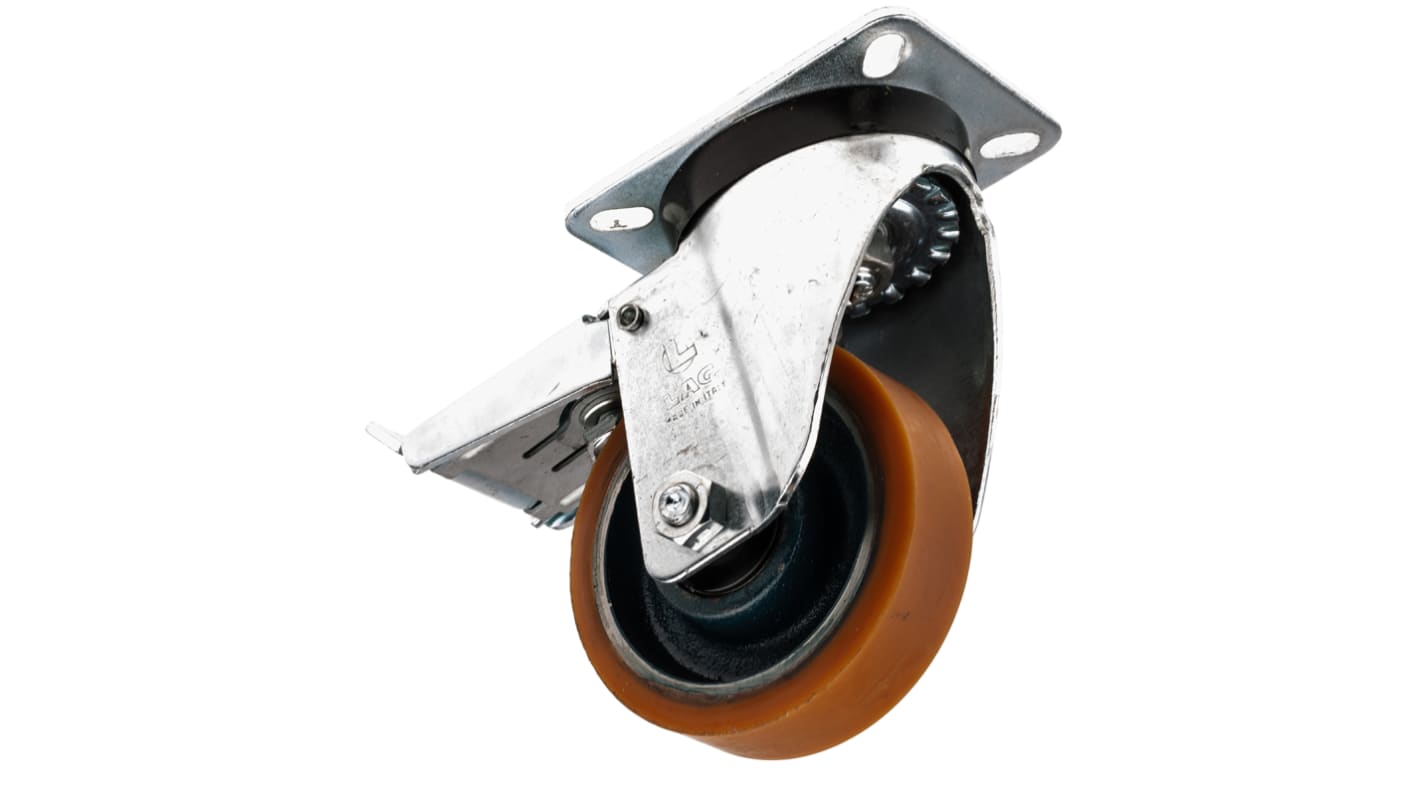

LAG Braked Swivel Castor Wheel, 300kg Capacity, 100mm Wheel
- RS Stock No.:
- 667-9419
- Mfr. Part No.:
- 23603 FR
- Manufacturer:
- LAG
19 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR421.68
| Units | Per Unit |
| 1 - 5 | MYR421.68 |
| 6 - 11 | MYR412.83 |
| 12 + | MYR400.45 |
- RS Stock No.:
- 667-9419
- Mfr. Part No.:
- 23603 FR
- Manufacturer:
- LAG
Legislation and Compliance
- COO (Country of Origin):
- IT
Product Details
Polyurethane Tyre, Cast Iron Hub, Heavy Duty, Series M40
Heavy duty castor, white zinc plated, top-plate mounting with a polyurethane tyred cast iron hub.
Central king-pin and self-locking nut
High resistance to abrasion, tearing, oils, petrol, greases etc
Wheels fitted with ball bearings
Temperature range -30°C to +80°C
Hardness 95+/-3 Shore A
Wheel series Z
High resistance to abrasion, tearing, oils, petrol, greases etc
Wheels fitted with ball bearings
Temperature range -30°C to +80°C
Hardness 95+/-3 Shore A
Wheel series Z
Polyurethane tyred wheels have high tear strength and abrasion resistance which gives them a life of up to 10 times that of rubber under similar operating conditions. Polyurethane is able to carry loads approaching that of cast iron. Polyurethane has a lower tractive resistance than rubber for the same load so is better for manual handling of very heavy loads. Polyurethane is not affected by greases and mineral oils.
Specifications
Attribute | Value |
|---|---|
| Wheel Diameter | 100mm |
| Load Capacity | 300kg |
| Mounting Type | Plate |
| Includes Brake | Yes |
| Overall Height | 137mm |
| Wheel Width | 30mm |
| Rotation | Braked Swivel |
| Tyre Material | Polyurethane |
| Fixing Centres | 80 x 60mm |
| Housing Material | Zinc Plated Steel |
| Fixing Plate Dimensions | 105 x 85mm |
| Number of Fixing Holes | 4 |
| Fixing Hole Size | 8mm |
| Weight Class | Medium Duty |
| Hub Bearing Type | Ball Bearing |
| Hub Material | Cast Iron |
