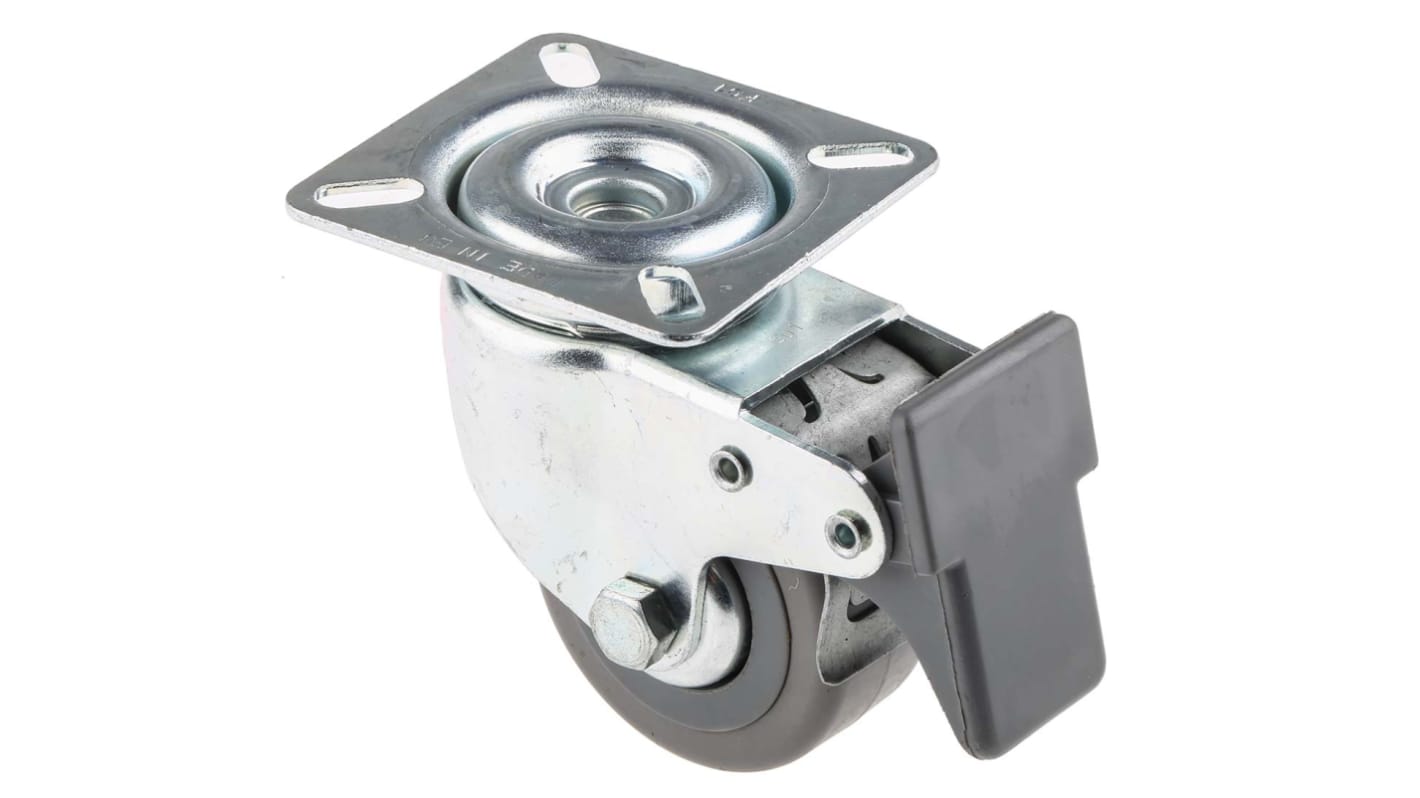

Tente Swivel Castor, 55kg Load Capacity, 50mm Wheel Diameter

  • RS Stock No. 458-9721
  • Mfr. Part No. 1677UHO050P40PAF
  • Manufacturer Tente
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
Product Details

Tente Agila Castor Wheel

The Agila series from Tente is a practical castor system with technical components allowing central locking, variable fitting options and optimised steering.

Features and Benefits

Directional lock for improved steering around bends and straight lines Easy plug-in fittings for fast assembly
Simultaneous locking using a central actuation lever
Variable fitting options for a large range of applications
Extra soft wheels with good shock-absorbing properties
Total lock for simultaneously locking the wheel and swivel housing
Wheels for steam sterilisation in autoclaves used in sterile areas
Black housing with bump and scratch resistant cathode immersion paint
Duratech wheels made of heat resistant material for use in extreme environments
All metal components made of stainless steel
Sealed bearings to protect against spray water and dirt
Soft wheel versions for a quiet working environment
Reduced abrasion and little cleaning requirement
Non-staining on contact with floors during long standing periods. Can also be used for floors made of untreated wood and natural stone
Thread guards for unobstructed operation with minimal cleaning effort
Threaded axles allow effortless wheel change
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI)

Product Application Information

The Agila series of castor wheels from Tente have been designed for institutional applications.

Agila 1677UHO050P40PAF

Steel sheet housing, broad reinforced fork, two ball races, total lock tail end of castor, polyamide wheel, antistatic tread, plain bearing without threadguards, 50 mm wheel diameter, square plate.

Specifications
Attribute Value
Wheel Diameter 50mm
Load Capacity 55kg
Overall Height 72mm
Wheel Width 22mm
Fixing Plate Dimensions 67 x 67mm
Rotation Braked Swivel
Application Institutional
Tyre Material Rubber
Includes Brake Yes
Fixing Centres 48 x 48mm
Weight Class Light Duty
Features Corrosion Resistant
Number of Fixing Holes 4
Fixing Hole Size 6mm
Hub Material PP
Hub Bearing Type Plain Bore
251 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 29.36
units
Per unit
1 - 5
MYR29.36
6 - 24
MYR28.92
25 - 49
MYR28.61
50 +
MYR28.08
