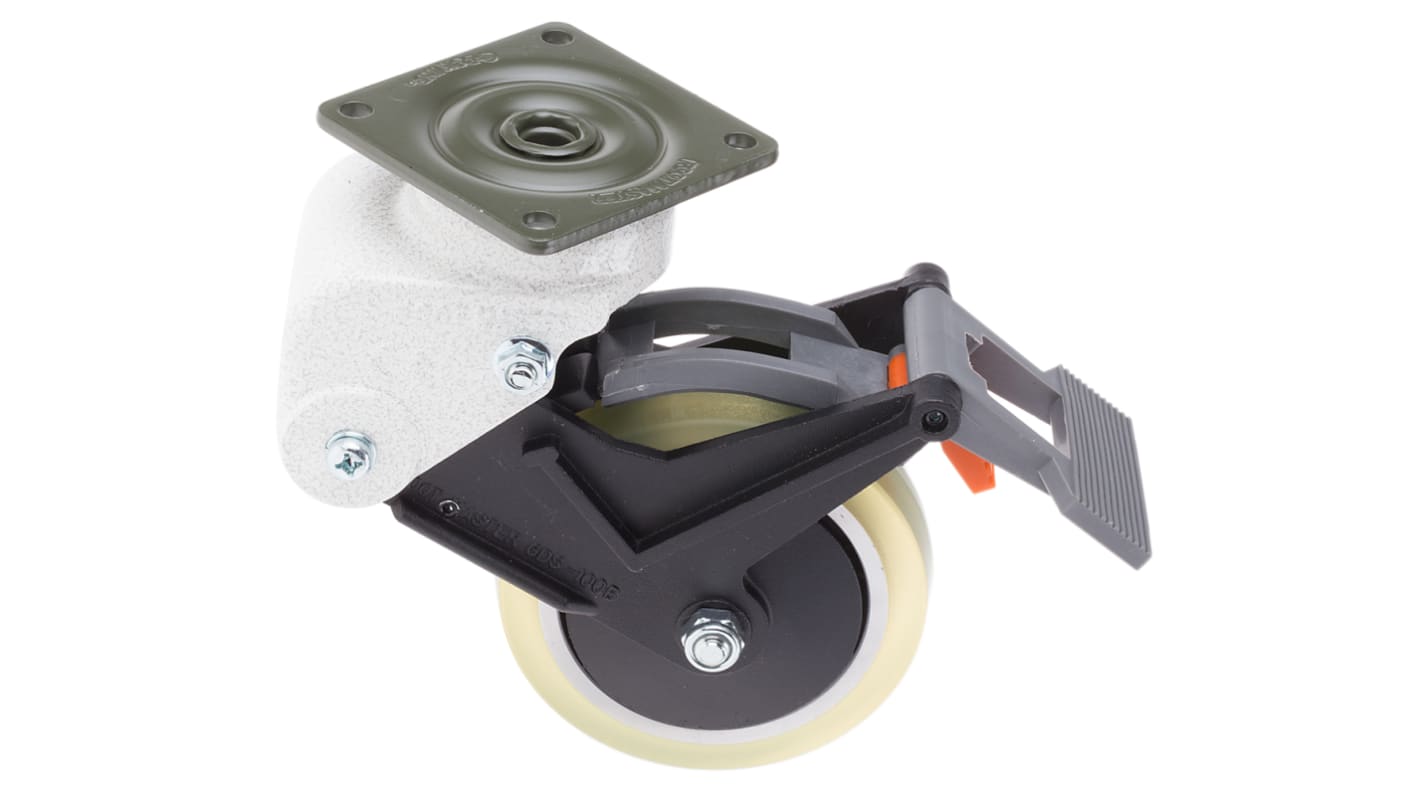

RS PRO Swivel Castor, 110kg Load Capacity, 100mm Wheel Diameter

  • RS Stock No. 296-2871
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): KR
Product Details

Shock Absorbing Castors

These shock absorbing castors have a high quality polyurethane tread and an aluminium hub.

Cast Aluminium Wheel
Fitted with Solid Rubber Shock Absorbing Block for Vibration-Free Operation
Braked Option Available (stock no. 296-2871)

RS PRO Swivel Castor 110kg Load Capacity

Shock Absorbing Castors provide vibration or jolts which can often damage equipment. They achieve optimal shock reduction which is needed in industrial environments or rough terrain. The tread is made from polyurethane which is ideal for heavy duty load bearing capacities and provides the advantages of rubber tread in caster wheels. Polyurethane tread offers high-quality noise and friction reduction and floor protection, it offers higher abrasion, tear and cut resistance than rubber. This material is also rated with a higher hardness.

Features and Benefits:

• Cast aluminium 100 mm wheel
• Solid rubber shock absorber
• Swivel rotation
• Roller bearing hub
• Non-marking
• Braked Option Available (stock no. 296-2871)

Specifications
Attribute Value
Wheel Diameter 100mm
Load Capacity 110kg
Overall Height 160mm
Wheel Width 30mm
Fixing Plate Dimensions 73 x 73mm
Rotation Braked Swivel
Tyre Material PUR
Includes Brake Yes
Fixing Centres 58 x 58mm
Weight Class Medium Duty
Features Quiet Operation, Shock Absorbing
Number of Fixing Holes 4
Fixing Hole Size 6.5mm
Hub Bearing Type Roller Bearing
Hub Material Aluminium
37 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 277.56
units
Per unit
1 - 5
MYR277.56
6 - 11
MYR272.02
12 +
MYR267.50
