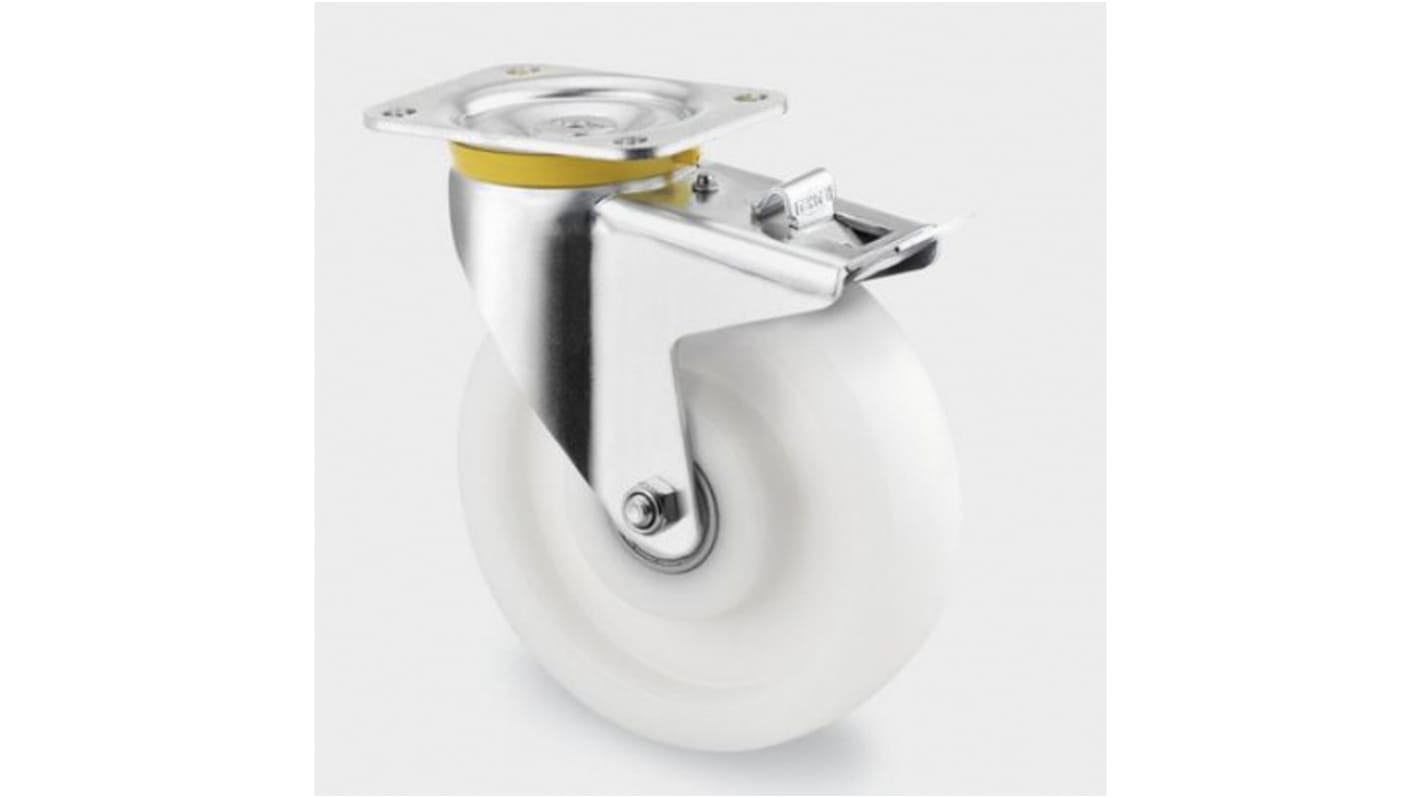

Tente Braked Swivel Castor Wheel, 800kg Capacity, 160mm Wheel
- RS Stock No.:
- 172-1160
- Mfr. Part No.:
- 4687TOP160P63
- Manufacturer:
- Tente
1 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR393.92
| Units | Per Unit |
| 1 + | MYR393.92 |
- RS Stock No.:
- 172-1160
- Mfr. Part No.:
- 4687TOP160P63
- Manufacturer:
- Tente
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- DE
Product Details
Swivel castor with total lock, tail end of castor, housing made of very heavy pressed steel, reinforced, bright zinc plated, blue passivated, sealed swivel double ball bearing, reinforced and heat-treated ball covers, riveted king pin, dust ring with integrated grease nipple, wheel axle with nut, plate fitting. Wheel centre made of Polyamide, heavy duty, precision ball bearing
Specifications
Attribute | Value |
|---|---|
| Wheel Diameter | 160mm |
| Load Capacity | 800kg |
| Mounting Type | Plate |
| Includes Brake | Yes |
| Overall Height | 200mm |
| Wheel Width | 50mm |
| Rotation | Braked Swivel |
| Tyre Material | Polyamide |
| Fixing Centres | 105 x 80 x 75mm |
| Fixing Plate Dimensions | 137 x 105mm |
| Number of Fixing Holes | 4 |
| Fixing Hole Size | 11mm |
| Weight Class | Heavy Duty |
| Hub Bearing Type | Ball Bearing |
| Hub Material | Polyamide |
