RS PRO Swivel Castor, 230kg Load Capacity, 125mm Wheel Diameter

  • RS Stock No. 171-8310
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

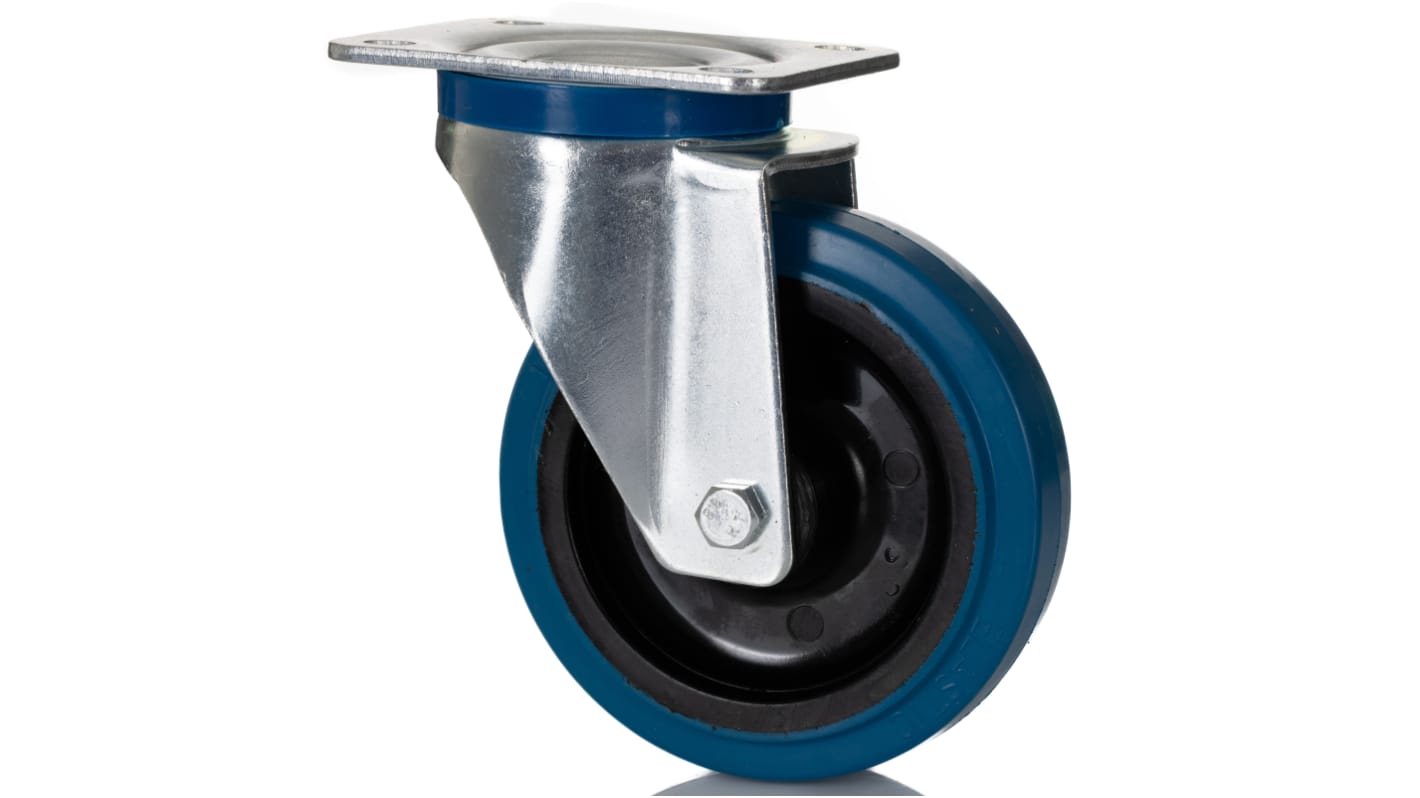

RS PRO castor wheel

The RS PRO heavy duty swivel castor wheel is suitable for large loads up to 230kgs. The wheel centre is made up of polyamide material for increased strength. The castor has been specifically designed to reduce the applied swivelling force as much as possible. It has been made to meet the ergonomic needs of the industry even in most challenging environments.

Features and Benefits

• Brakes for improved control
• Corrosion resistant
• High durability
• Wheel diameter is 125mm

Applications

• Automotive industry
• Equipment cart
• Hospital beds
• IV poles
• Manufacturing industry
• Office desks
• Stretchers
• Surgical tables

Specifications
Attribute Value
Wheel Diameter 125mm
Load Capacity 230kg
Overall Height 155mm
Wheel Width 36mm
Fixing Plate Dimensions 105 x 85mm
Rotation Swivel
Tyre Material Elastic
Includes Brake No
Fixing Centres 80 x 60mm
Weight Class Heavy Duty
Features Corrosion Resistant
Fixing Hole Size 9mm
Hub Bearing Type Roller Bearing
Hub Material Polyamide
Temporarily out of stock - back order for despatch 13/11/2019, delivery within 4 working days from despatch date
Price Each
MYR 88.17
units
Per unit
1 - 4
MYR88.17
5 - 9
MYR85.52
10 +
MYR82.87
