HellermannTyton Natural PA 4.6 Cable Tie, 100mm x 2.5 mm, T18R HR Series

  • RS Stock No. 359-2029
  • Mfr. Part No. 116-01816 T18R-PA66-BU (100)
  • Manufacturer HellermannTyton
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

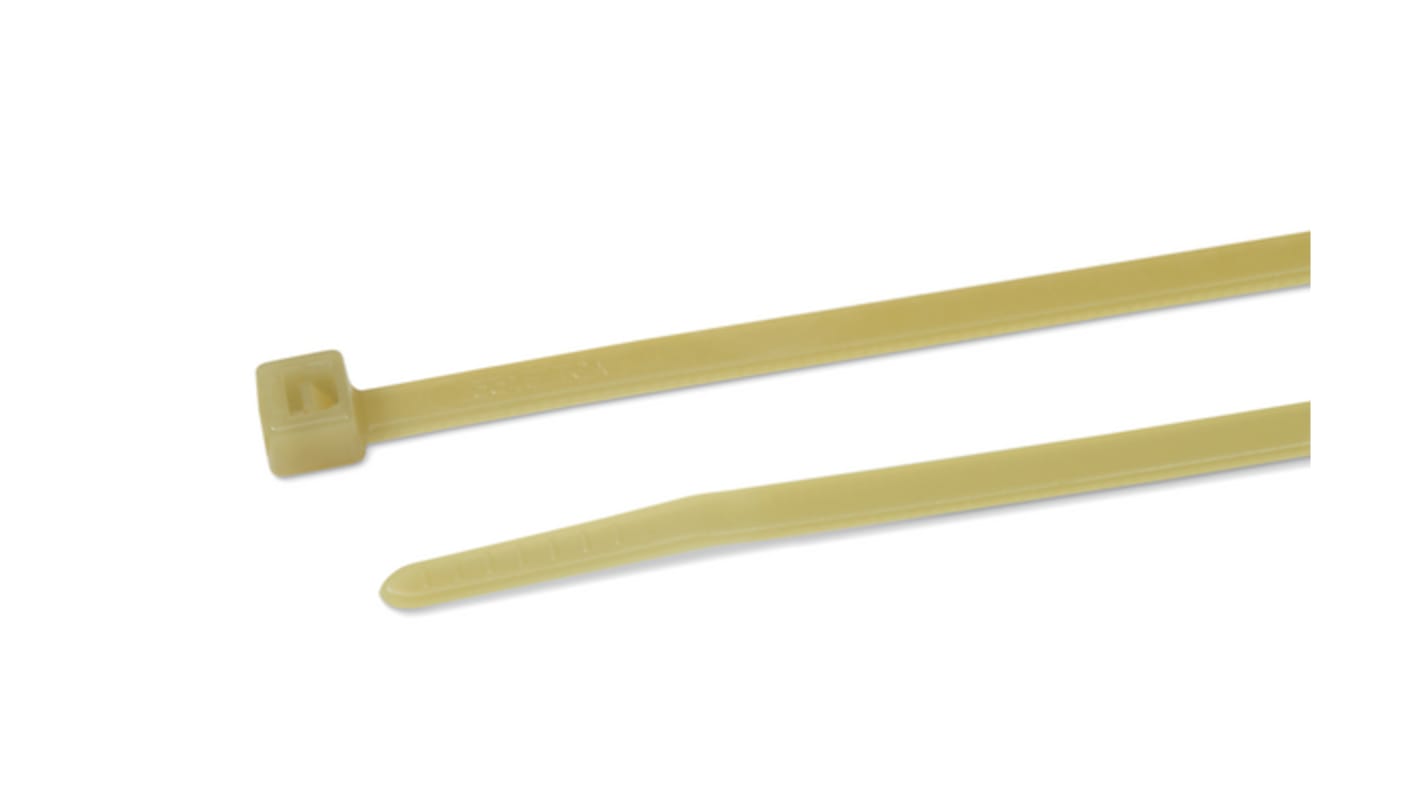

HellermannTyton Cable Tie

The HellermannTyton T18R HR series natural cable tie is made of nylon 4.6(PA66). It has a bundle diameter of 22mm, length of 100mm and width of 2.5mm. This product is made from 100% high-quality plastic that allows recycling. Nylon 46 is a type of polyamide and has a higher melting point than nylon 6 or nylon 66, thus it is useful in applications that have to withstand high-temperatures even for a short while. This cable tie also features inside serration for a stronghold around bundles. It can be used for almost any application. Each pack contains 100 units.

Features and Benefits

Easy application either manually or with a processing tool
Flame retardant
High tensile strength with low insertion force
High yield strength
Inside serration for a strong hold around bundles
Low smoke generation in the event of a fire
Operating temperature ranging between -40°C and 150°C for 5000 hours and 195°C for 500 hours
Simple to insert due to ergonomically bent tail
Tensile strength is 80N

Applications

Bundling
Securing cables, pipes and hoses

Certifications

cRUus certified
HF certified
UL 94 V2

Specifications
Attribute Value
Length 100 mm
Width 2.5 mm
Colour Blue
Material PA 4.6
Quantity 100
Minimum Operating Temperature -40°C
Maximum Operating Temperature +150°C
Series T18R HR
Maximum Bundle Diameter 22mm
28 Within 4 working day(s) (Global stock)
300 Within 4 working day(s) (Global stock)
Price 1 Bag of 100
Was MYR136.23
MYR 134.81
Bag(s)
Per Bag
Per unit*
1 - 14
MYR134.81
MYR1.348
15 - 49
MYR132.45
MYR1.324
50 +
MYR129.14
MYR1.291
*price indicative
