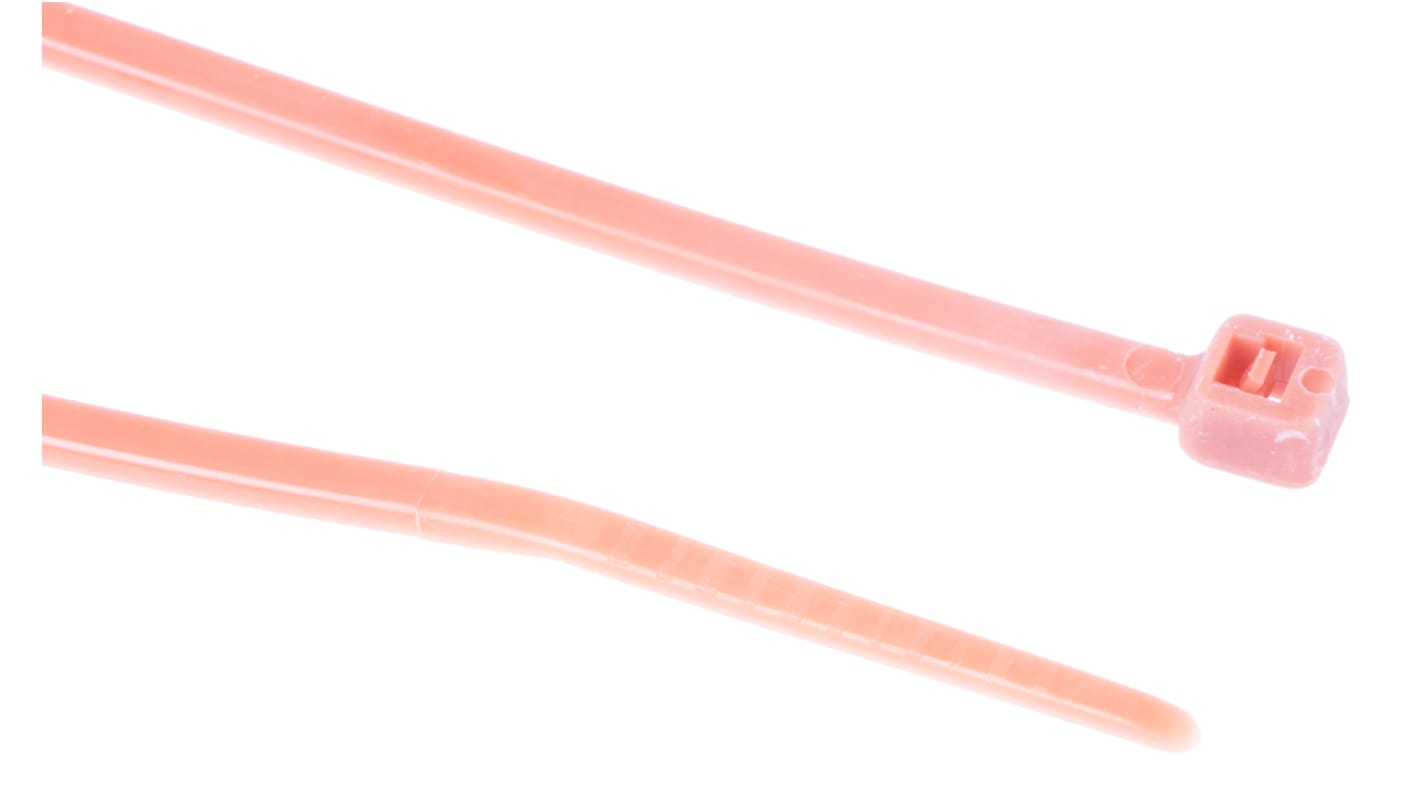

RS PRO Orange Nylon Cable Tie, 165mm x 2.5 mm

  • RS Stock No. 233-281
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

Single Colour

The ties enable colour coding of cables or other components and are manufactured from nylon 6.6.

Features and Benefits:

Temp rating: -50°C to +85°C.
Flammability rating UL94V-2

Typical applications:

Cable ties are used as a type of fastener, for holding items together, primarily electrical cable or wire. Cable ties are cheap, easy to use and strong and because of this they can be found in many different industries for various uses:
Automotive industry
Transportation
Aerospace Industry
Oil and Gas industry
Cable management
Home/DIY

FAQs
Can cable ties be reused?
Cable ties typically come in two varieties which are single-use and reusable. It is possible to undo a single-use cable tie without having to cut it open so it can be used again. When trying to undo a traditional cable tie, it can be quite simple. Just stick a pin or something small in the locking mechanism, press down and slide it out.

But bear in mind that single-use cable ties are designed for that purpose, so even though it’s possible to technically undo them and use them again, the plastic teeth can wear down the more they’re undone and re-tied. Also, manipulating the locking mechanism can damage it, meaning the tie develops a looser grip over time – so refrain from using old ones to tie anything that needs to be really secure.

What are the different types of cable tie?
There are many different types of cable tie, including heavy-duty metal ties, plastic ties, and Velcro cable ties in the form of a Velcro strap. Below are some of the main types:
• Standard
• Releasable
• Mounted head
• Push mount
• Self-adhesive
• Double-headed
• Stainless steel
• Reusable

Specifications
Attribute Value
Length 165 mm
Width 2.5 mm
Colour Orange
Material Nylon 66
Type Non-Releasable
Quantity 100
Minimum Operating Temperature -50°C
Maximum Operating Temperature +85°C
Tensile Strength 78.4N
Maximum Bundle Diameter 43mm
Fire Behaviour Flame Retardant
156 In Global stock for delivery within 4 - 6 working days
Price 1 Bag of 100
MYR 12.74
Bag(s)
Per Bag
Per unit*
1 - 14
MYR12.74
MYR0.127
15 - 49
MYR12.41
MYR0.124
50 +
MYR12.11
MYR0.121
*price indicative
