Thomas & Betts Blue Cable Tie Mount 12.7 mm x 19.05mm, 0.19in Max. Cable Tie Width

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

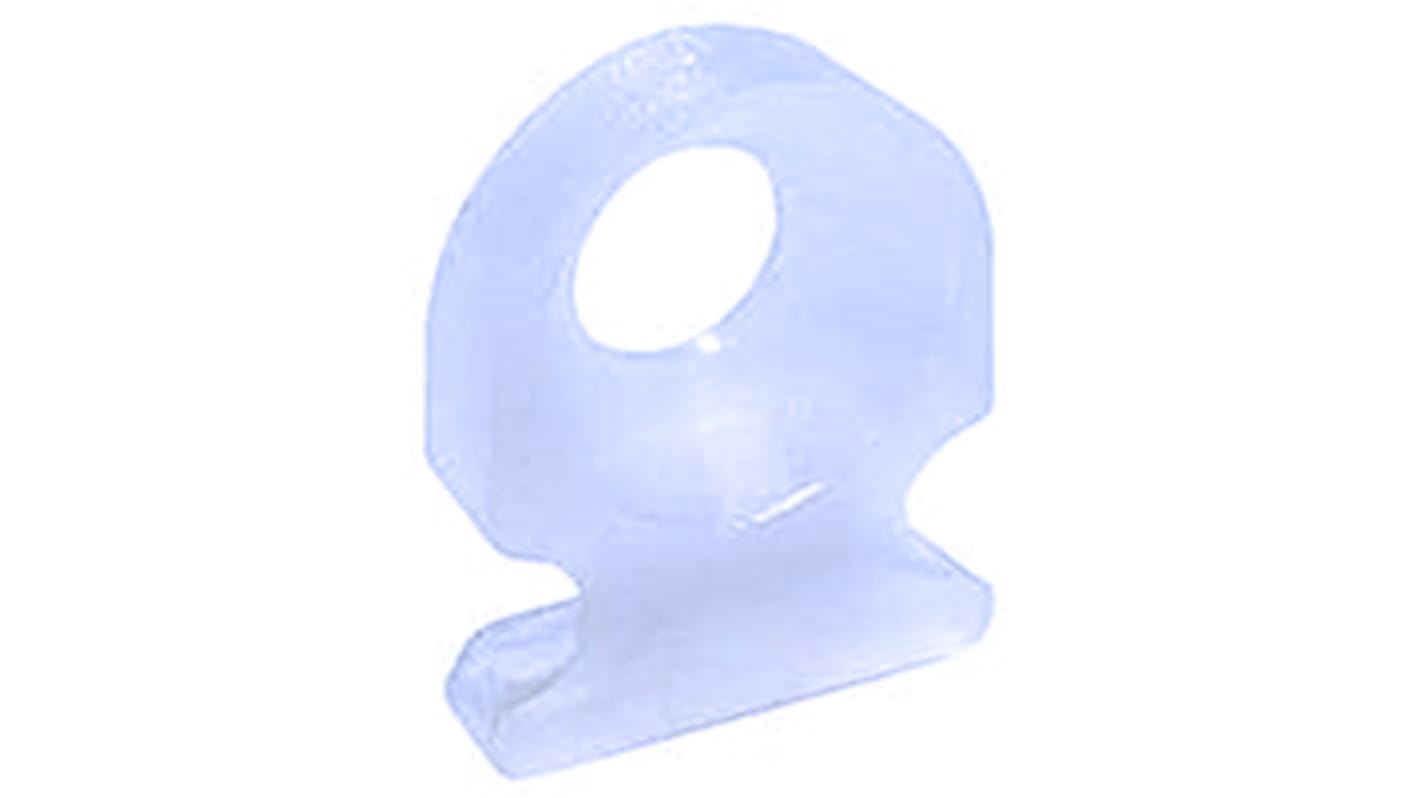

Thomas & Betts Detectable Miniature Cable Tie Base

This Thomas & Betts detectable miniature cable tie base 19.1 x 12.7 mm (0.75 x 0.5 in) is especially well-suited for use with high-density packaging. The threaded insert permits screwing from outside of the mounting surface. The Nylon version is supplied in a bag of 100 ( 812-5879 ) or bag of 1000 ( 812-5873 ). The Polypropylene version is supplied in a bag of 1000 ( 812-5882 ).

Screw mounting
Maximum tie width accepted 4.8 mm (0.19 in)
For cable ties up to 50 lb (22.6 kg)
Temperature range -40°C to +85°C
Flammability rating UL 94 V-2

Specifications
Attribute Value
Colour Blue
Cable Tie Width Acceptance 0.19in
Length 19.05mm
Width 12.7 mm
Material Nylon
Minimum Operating Temperature -40°C
Maximum Operating Temperature +85°C
Quantity 100
1 In Global stock for delivery within 4 - 6 working days
Price 1 Bag of 1000
MYR 940.89
Bag(s)
Per Bag
Per unit*
1 - 14
MYR940.89
MYR0.941
15 - 49
MYR893.89
MYR0.894
50 +
MYR771.59
MYR0.772
*price indicative
