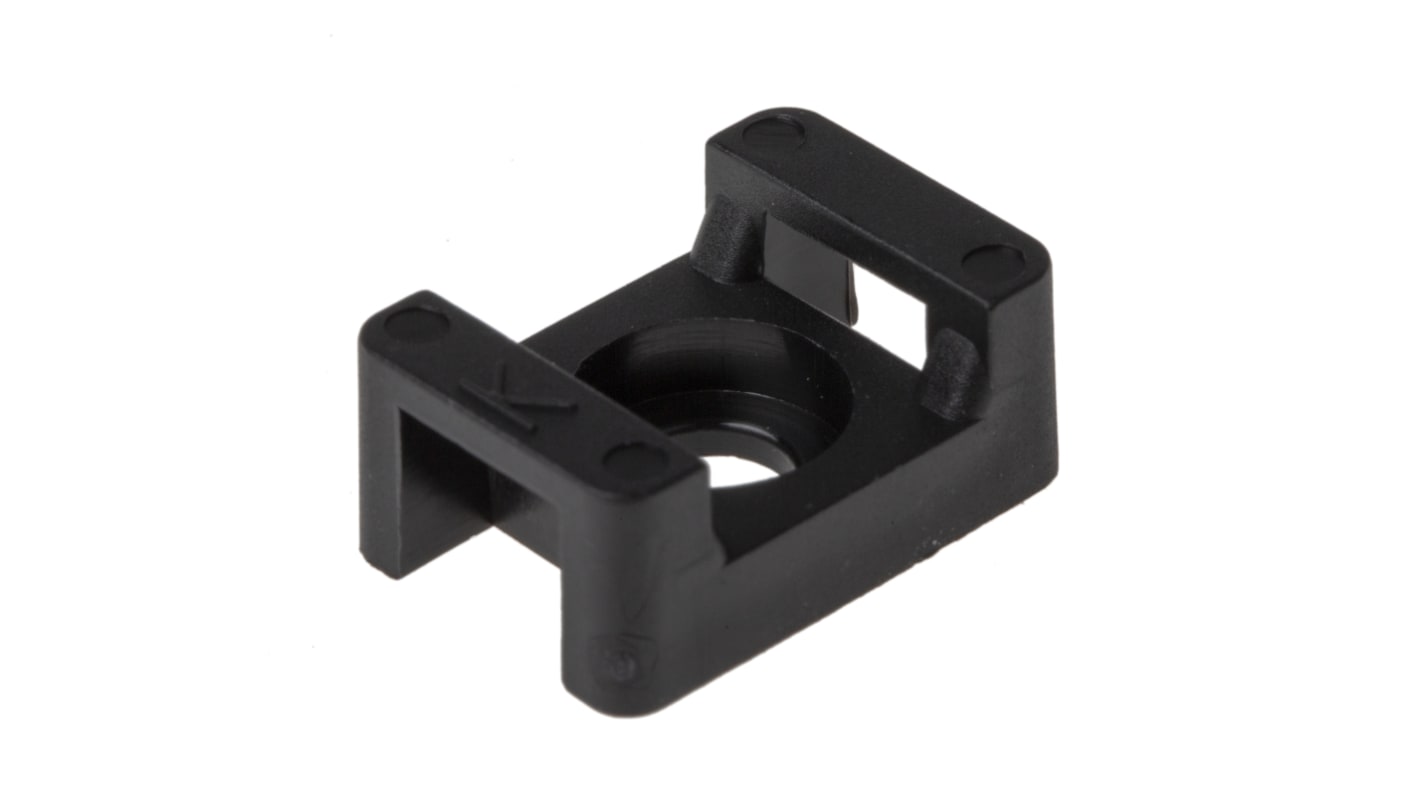

RS PRO Black Cable Tie Mount 16 mm x 23mm, 8mm Max. Cable Tie Width

  • RS Stock No. 233-685
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

Cable Tie Saddles

Saddle style screw-mounted cable tie bases, available in black and white for outdoor and indoor use respectively. The clamps are manufactured from nylon 6.6.

Features and Benefits:

• Saddle design offers excellent stability
• Simple cable mounting - screw mounting and not adhesive
• Available in black and white colours in a range of sizes
• Self-extinguishing UL 94 V-2

Typical Applications


Features and benefits
• Saddle design offers excellent stability
• Simple to mount by screw
• Available in black and natural colours in a range of sizes
• Self-extinguishing UL 94 V-2

FAQs

What is the importance of cable management?
Using the right products to organise and protect cables can improve performance and extend life span, as well as reducing maintenance time and repair costs. A key benefit of bundling and organising cables correctly is the improvement to health and safety in work environments.

What is Nylon 6.6?
Nylon 66 is also known as Polyamide 66 or PA 66 and is a semi-crystalline engineering plastic. This plastic is both hard and rigid with good abrasive and wear resistance along with low frictional properties. It also has good thermal dimensional stability which is the degree to which a material maintains its original dimensions when subjected to changes in temperature and humidity. This nylon type is frequently used when high mechanical strength, rigidity, good stability under heat and/or chemical resistance are required.

Specifications
Attribute Value
Colour Black
Cable Tie Width Acceptance 8mm
Length 23mm
Width 16 mm
Fixing Hole Diameter 6.3mm
Material Nylon 66
Series HC
Minimum Operating Temperature -45°C
Maximum Operating Temperature +85°C
Quantity 250
Stock check temporarily unavailable - call for stock availability
Price 1 Bag of 250
MYR 161.20
Bag(s)
Per Bag
Per unit*
1 - 14
MYR161.20
MYR0.645
15 - 49
MYR157.20
MYR0.629
50 +
MYR153.27
MYR0.613
*price indicative
