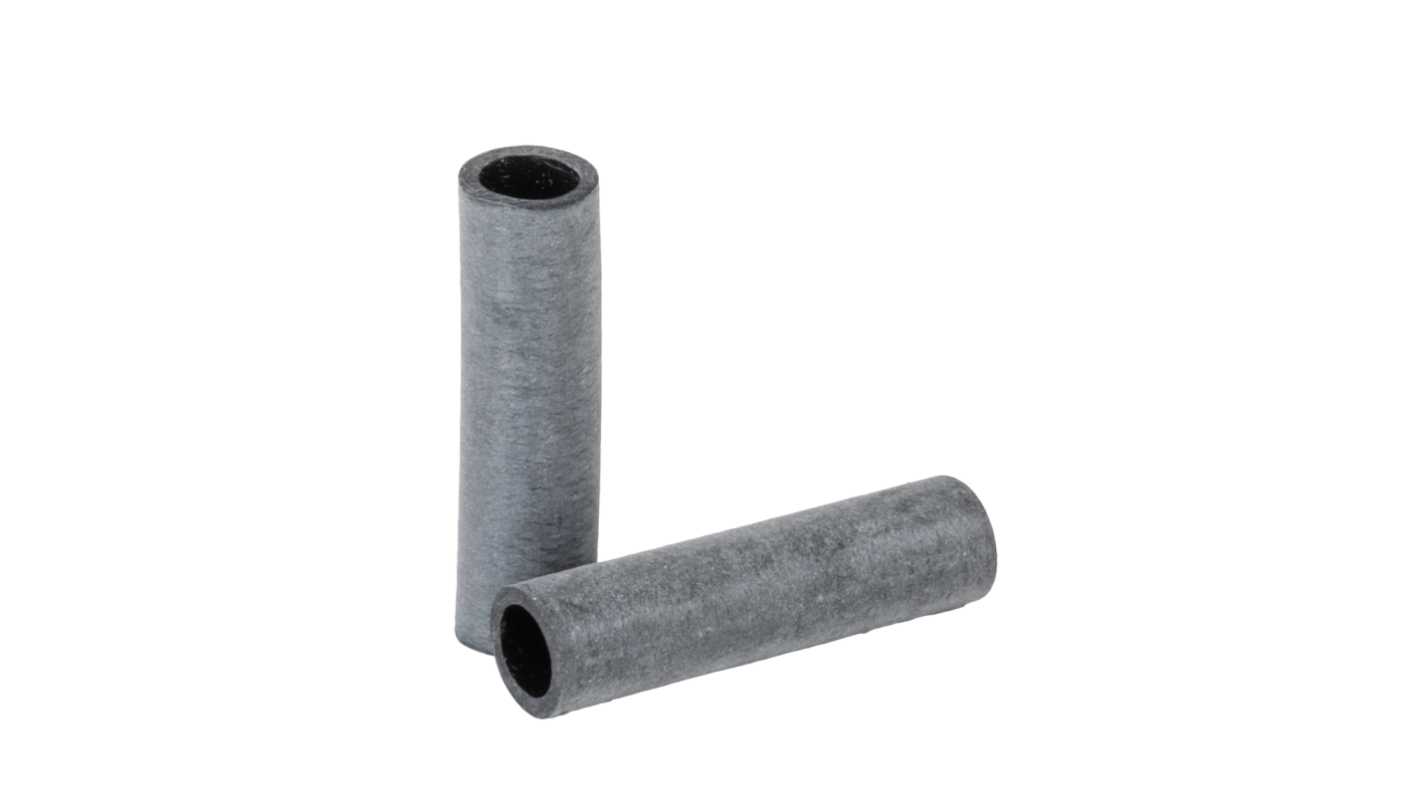

HellermannTyton Expandable Chloroprene Black Cable Sleeve, 5mm Diameter, 25mm Length, H50X25BK Series
- RS Stock No.:
- 920-3693
- Mfr. Part No.:
- 600-02949 H50X25BK-CR-BK
- Manufacturer:
- HellermannTyton
38 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price 1 Bag of 500
MYR230.49
| Bag(s) | Per Bag | Per Unit* |
| 1 - 14 | MYR230.49 | MYR0.461 |
| 15 - 49 | MYR226.40 | MYR0.453 |
| 50 + | MYR222.18 | MYR0.444 |
| *price indicative | ||
- RS Stock No.:
- 920-3693
- Mfr. Part No.:
- 600-02949 H50X25BK-CR-BK
- Manufacturer:
- HellermannTyton
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
Polychloroprene Expandable Sleeves
Manufactured from an extruded neoprene/chloroprene compound, this cable sleeve is ideal for binding and identification of cable harnesses; they also have good resistance to mineral and vegetable oils, fuel, acids, moisture, ozone and UV rays.
Features and Benefits
Supplied in pre-cut lengths
Highly elastic
Covers many cable diameters with one size
Easy to apply
Highly elastic
Covers many cable diameters with one size
Easy to apply
Applications
The rubber sleeves can be used in aerospace, automotive, construction, consumer electronics, defence, mass transit and telecommunications applications.
Specifications
Attribute | Value |
|---|---|
| Sleeve Diameter | 5mm |
| Colour | Black |
| Material | Chloroprene |
| Sleeve Length | 25mm |
| Expandable | Yes |
| Minimum Cable Diameter | 5mm |
| Minimum Operating Temperature | -65°C |
| Maximum Operating Temperature | +95°C |
| Wall Thickness | 1mm |
| Standards Met | BS-3858 Type 1, BS-4G-198 Part 1 Type 1, DEF STAN 59-15 D2 |
| Series | H50X25BK |
