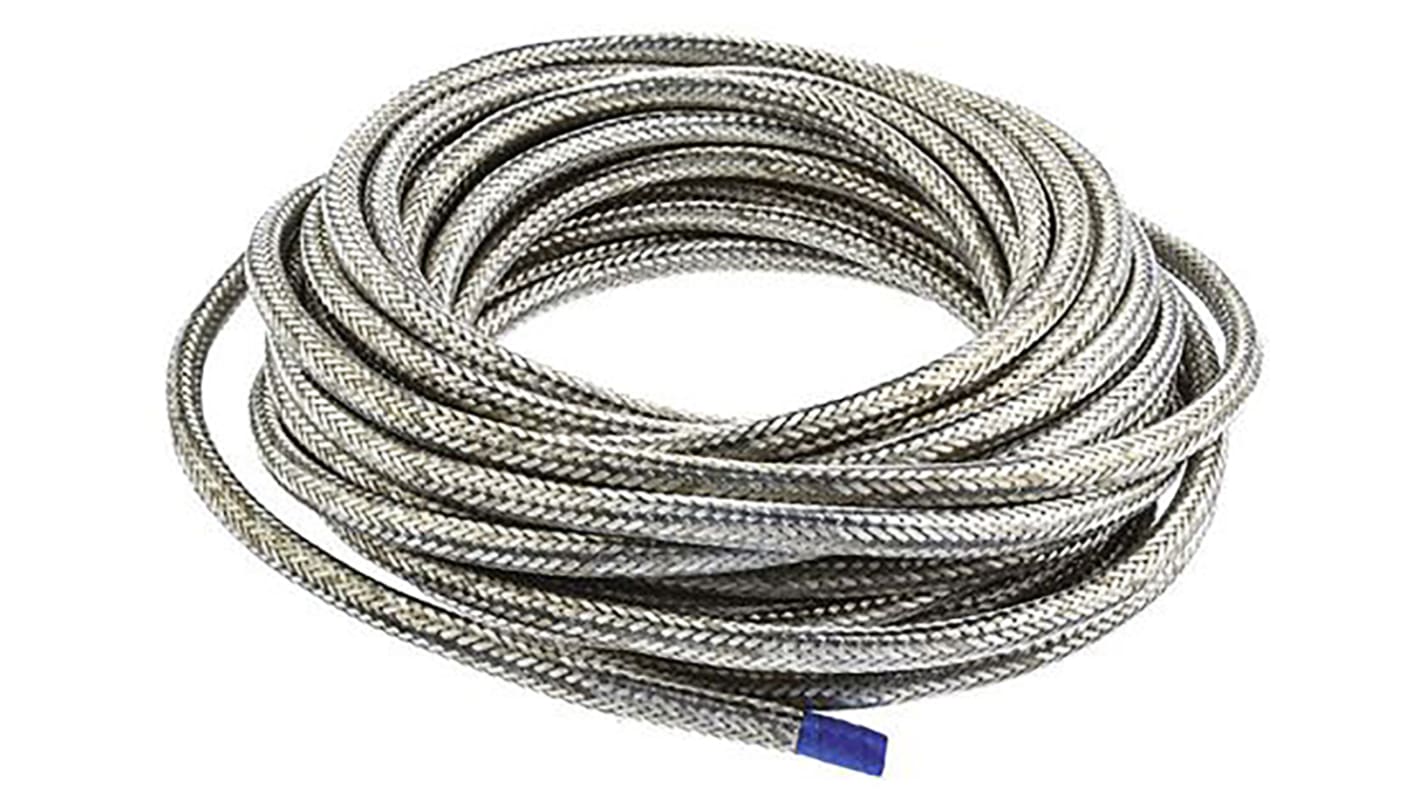

TE Connectivity Expandable Braided Nickel Plated Copper Alloy Cable Sleeve, 6mm Diameter, 10m Length, RayBraid Series
- RS Stock No.:
- 887-2856
- Mfr. Part No.:
- RAY-103-6.0(10)
- Manufacturer:
- TE Connectivity
90 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR139.738
| Units | Per Unit | Per Reel* |
| 10 - 140 | MYR139.738 | MYR1,397.38 |
| 150 - 490 | MYR132.755 | MYR1,327.55 |
| 500 + | MYR128.56 | MYR1,285.60 |
| *price indicative | ||
- RS Stock No.:
- 887-2856
- Mfr. Part No.:
- RAY-103-6.0(10)
- Manufacturer:
- TE Connectivity
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- GB
Product Details
Raybraid Plated Copper Braid
Braided sleeving designed for the electrical screening of wire bundles, protecting them against interference and physical damage. Raybraid is supplied on a tube former which facilitates assembly and is more robust than braid supplied in flattened form. The Ray-101 range has a tinned copper screen and Ray-103 has a nickel plated copper screen for use in harsh environments and in high temperatures.
Features and benefits
• Provides EMC screen for wires and cables
• Easy removal from PVC former
• Min. 93%, max. 100% optical coverage
• Highly usable expansion ratio (min 2:1)
• Tin-plated copper or Nickel-plated copper sleeving available
• Available in a wide range of sizes to cover 2.5 to 40mm diameters
Specifications
Attribute | Value |
|---|---|
| Sleeve Diameter | 6mm |
| Material | Nickel Plated Copper Alloy |
| Sleeve Length | 10m |
| Braided | Yes |
| Expandable | Yes |
| Minimum Cable Diameter | 4.5mm |
| Maximum Cable Diameter | 9.5mm |
| Shielded | Yes |
| Standards Met | WSD 1922 (Performance Standard) |
| Series | RayBraid |
