SES PVC Black Cable Sleeve, 1mm Diameter, 50m Length

  • RS Stock No. 321-1988
  • Mfr. Part No. 08010001010
  • Manufacturer SES
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): FR
Product Details

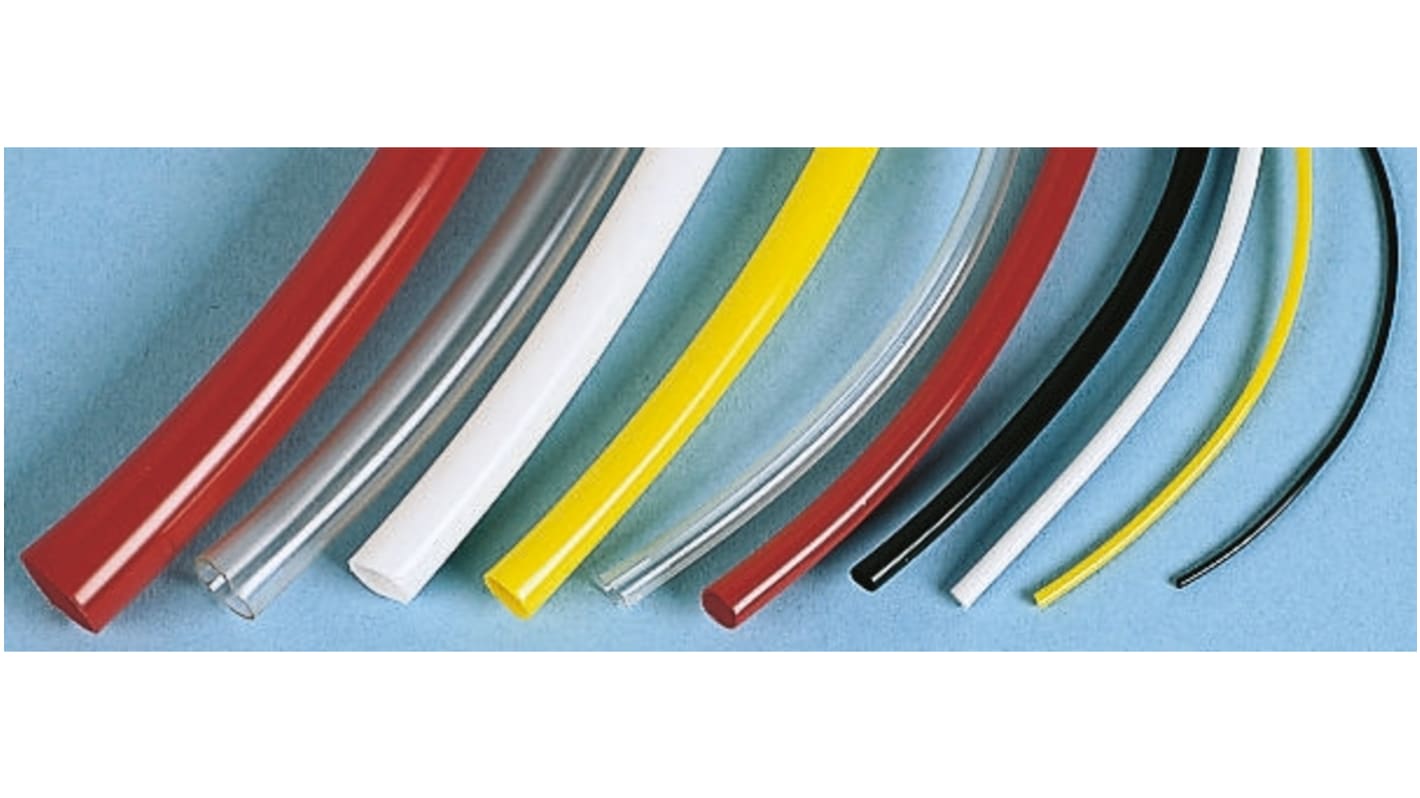

Insulating Sleeves in PLIO®-SUPER PVC

PLIO®-SUPER PVC insulating sleeves are mainly used for the insulation and mechanical protection of electrical cables. They are also used for transporting fluids at low pressure and ambient temperature.

Features and Benefits

• Ozone, aging and acid resistance
• Do not spread flames in the event of a fire
• Available in various colours and diameter

Standards

V2 UL94, NF C 93 641, DIN 40.621, VSM 11930

Specifications
Attribute Value
Sleeve Diameter 1mm
Colour Black
Material PVC
Sleeve Length 50m
Minimum Cable Diameter 1mm
Maximum Cable Diameter 1.8mm
Minimum Operating Temperature -20°C
Maximum Operating Temperature +90°C
Dielectric Strength 20kV/mm
Wall Thickness 0.4mm
10 Within 4 working day(s) (Global stock)
19 Within 4 working day(s) (Global stock)
Price 1 Reel of 50 Metre(s)
MYR 40.84
Reel(s)
Per Reel
Per Metre*
1 - 14
MYR40.84
MYR0.817
15 - 49
MYR39.83
MYR0.797
50 +
MYR39.20
MYR0.784
*price indicative
