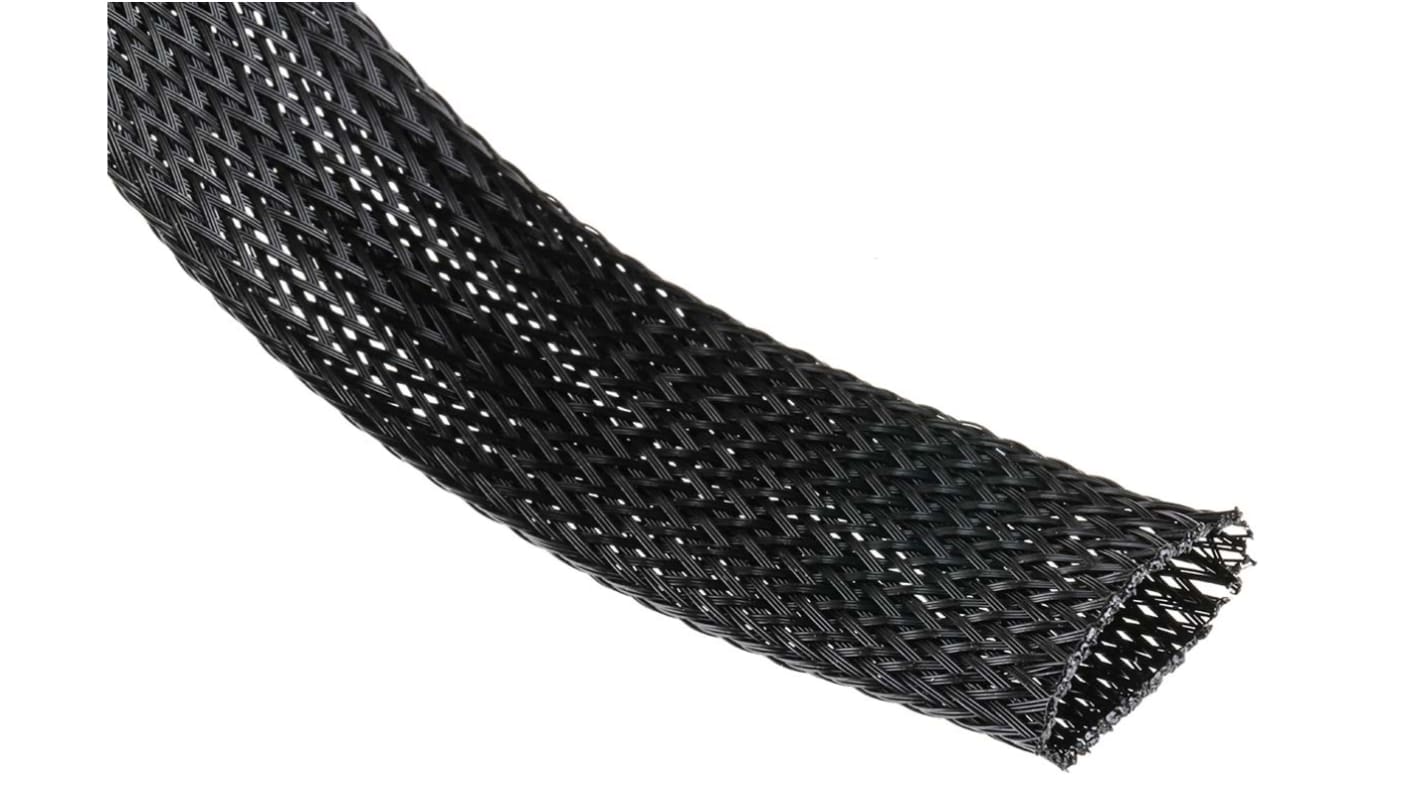

HellermannTyton Expandable Braided PET Black Cable Sleeve, 25mm Diameter, 10m Length, Helagaine HLB Series

  • RS Stock No. 302-9133
  • Mfr. Part No. 170-80250 HLB25-PET-BK
  • Manufacturer HellermannTyton
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): FR
Product Details

Helagaine HLB Braided Sleeving Dispenser/Bag

Helagaine HLB polyester braided sleeving has an expansion ratio of 3:1. Large differences in diameter, for instance due to cable jacks and connectors, are easy to handle. Supplied in practical dispenser boxes, it is ideal for both the professional and the home user. It bundles and effectively protects cables and wires, for instance in HiFi systems and in industrial plants providing good resistance to abrasion.

Made from polyester
Temperature rating -50° → 150°C
Melting Point: + 250°C
Oxygen Index: 34% (NFG 07-128)

Standards

MIL-STD-810B-METHOD 508

Specifications
Attribute Value
Sleeve Diameter 25mm
Colour Black
Material PET
Sleeve Length 10m
Braided Yes
Expandable Yes
Minimum Cable Diameter 10mm
Maximum Cable Diameter 30mm
Minimum Operating Temperature -50°C
Maximum Operating Temperature +150°C
Series Helagaine HLB
1560 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 13.122
units
Per unit
Per Box*
10 - 140
MYR13.122
MYR131.22
150 - 490
MYR12.893
MYR128.93
500 +
MYR12.654
MYR126.54
*price indicative
