HellermannTyton Expandable Braided PET Black Cable Sleeve, 6mm Diameter, 5m Length, Helagaine HEGP06 Series

  • RS Stock No. 187-4638
  • Mfr. Part No. 170-10600 HEGP06-PET-BK (100)
  • Manufacturer HellermannTyton
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): FR
Product Details

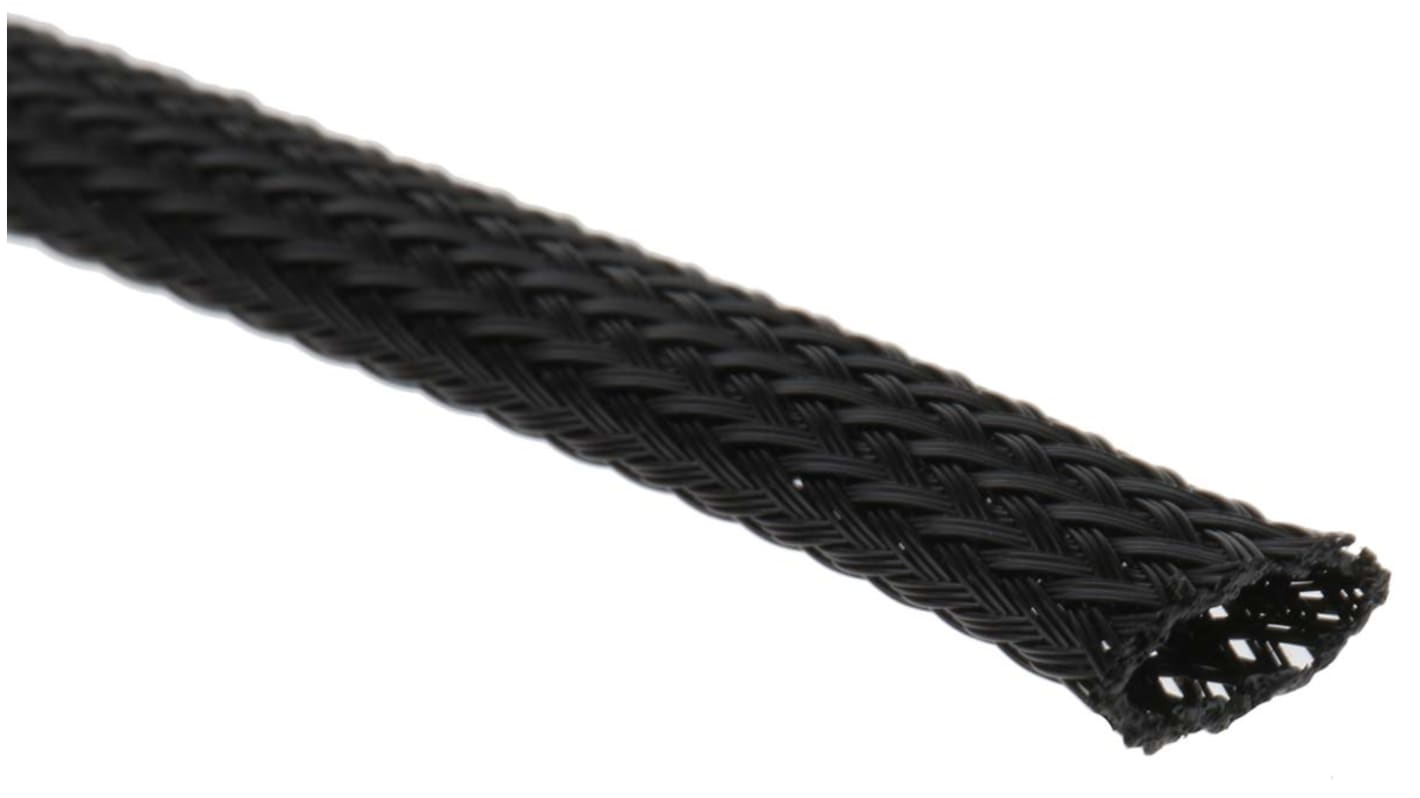

HellermannTyton Cable Sleeve

The HellermannTyton black cable sleeve is an expandable and braided protective cover with sleeve diameter of 6mm and length of 5m. It is made of sturdy polyethylene terephthalate (PET) material. This monofilament sleeving is used for bundling and protecting leads and cable. Its special woven structure allows it to be slipped on easily. The sleeve should be cut with a hot cutting tool, or the ends fused with a soldering iron or similar.

Features and Benefits

High abrasion resistance
Highly flexible
Maximum cable diameter is 11mm
Minimum cable diameter is 4mm
Operating temperature ranging between -50°C and 150°C
Melting point is 250°C
Reel length of 100m
Very high surface coverage

Applications

Automotive industry
Machine construction
Smaller electrical appliances to avoid pockets of high temperature
Railway applications

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
MIL-STD-810B-METHOD 508
EN 45545: 2013
DIN5510-2
UL94 V2 approved
HF approved

Specifications
Attribute Value
Sleeve Diameter 6mm
Colour Black
Material PET
Sleeve Length 5m
Braided Yes
Expandable Yes
Minimum Cable Diameter 4mm
Maximum Cable Diameter 11mm
Minimum Operating Temperature -50°C
Maximum Operating Temperature +150°C
Series Helagaine HEGP06
61 Within 4 working day(s) (Global stock)
544 Within 4 working day(s) (Global stock)
Price 1 Reel of 5 Metre(s)
MYR 54.00
Reel(s)
Per Reel
Per Metre*
1 - 14
MYR54.00
MYR10.80
15 - 49
MYR52.64
MYR10.528
50 +
MYR51.33
MYR10.266
*price indicative
