RS PRO Expandable Braided Tin Plated Copper Cable Sleeve, 6mm Diameter, 10m Length

  • RS Stock No. 181-1997
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

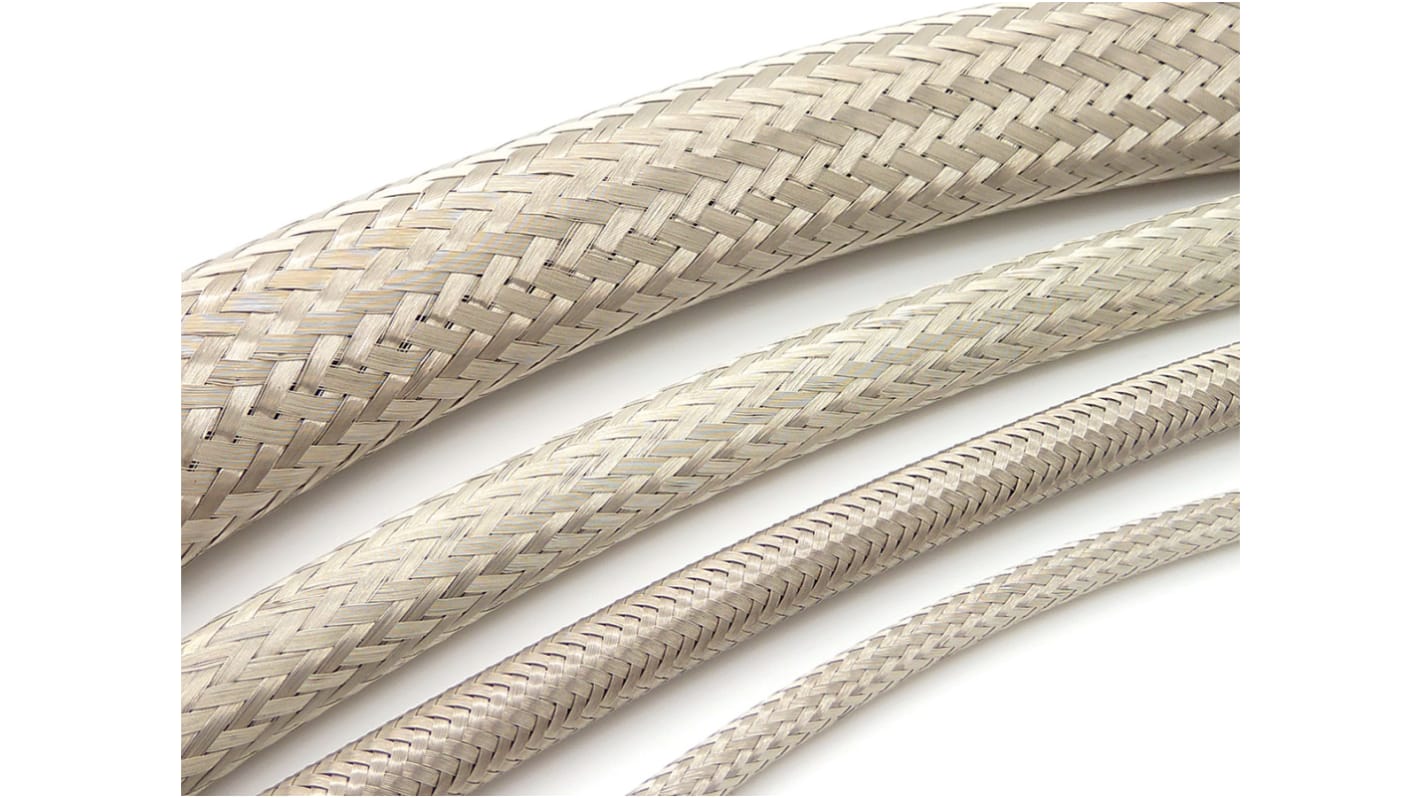

RS PRO Metal Screening Braid

The RS PRO 6mm screening braid provides exceptional protection for wire and cable harnesses from electromagnetic, electrostatic and radio frequency interference. It is a tin-plated copper braid and is supplied on an internal former to aid installation and maintain the shape and form of the braid in transit and before installation.

Features and Benefits

• 24 carriers
• High expansion ratio
• Operating temperature ranges between -65°C and 150°C
• Up to 90% optical coverage

Applications

• Electrical insulation and protection
• Industrial electrical network

Certifications

• ANSI/ESD S20.20:2014
• BS 2848 180T
• BS EN 61340-5-1:2007
• REACH compliant

Specifications
Attribute Value
Sleeve Diameter 6mm
Material Tin Plated Copper
Sleeve Length 10m
Braided Yes
Expandable Yes
Minimum Operating Temperature -65°C
Maximum Operating Temperature +150°C
Standards Met REACH
Temporarily out of stock - back order for despatch 11/11/2020, delivery within 4 working days from despatch date
Price Each
Was MYR36.593
MYR 36.213
units
Per unit
Per Reel*
10 +
MYR36.213
MYR362.13
*price indicative
