RS PRO Expandable Braided Tin Plated Copper Cable Sleeve, 3mm Diameter, 10m Length

RS Stock No.:: 181-1994
Manufacturer:: RS PRO

RS PRO Expandable Braided Tin Plated Copper Cable Sleeve, 3mm Diameter, 10m Length

10 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

Added

Price Each

MYR31.377

Units	Per Unit	Per Reel*
10 - 40	MYR31.377	MYR313.77
50 +	MYR25.823	MYR258.23
*price indicative

RS Stock No.:: 181-1994
Manufacturer:: RS PRO

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: GB

Product Details

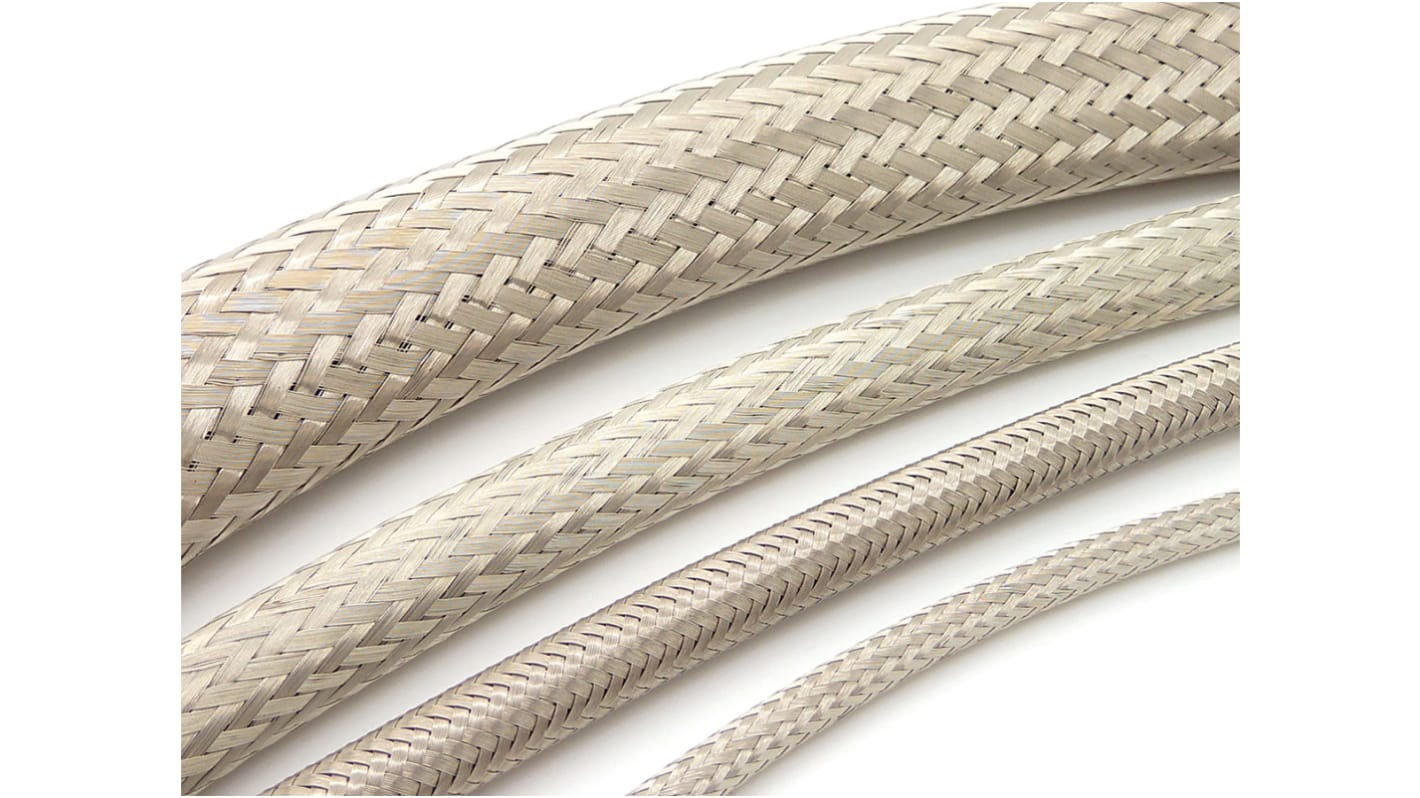

RS PRO Metal Screening Braid

The RS PRO 3mm screening braid provides exceptional protection for wire and cable harnesses from electromagnetic, electrostatic and radio frequency interference. It is a tin-plated copper braid and is supplied on an internal former to aid installation and maintain the shape and form of the braid in transit and before installation.

Features and Benefits

• 16 carriers
• High expansion ratio
• Operating temperature ranges between -65°C and 150°C
• Up to 90% optical coverage

Applications

• Electrical insulation and protection
• Industrial electrical network

Certifications

• ANSI/ESD S20.20:2014
• BS 2848 180T
• BS EN 61340-5-1:2007
• REACH compliant

Specifications

Attribute	Value
Sleeve Diameter	3mm
Material	Tin Plated Copper
Sleeve Length	10m
Braided	Yes
Expandable	Yes
Minimum Cable Diameter	2.5mm
Maximum Cable Diameter	5mm
Minimum Operating Temperature	-65°C
Maximum Operating Temperature	+150°C
Standards Met	REACH
