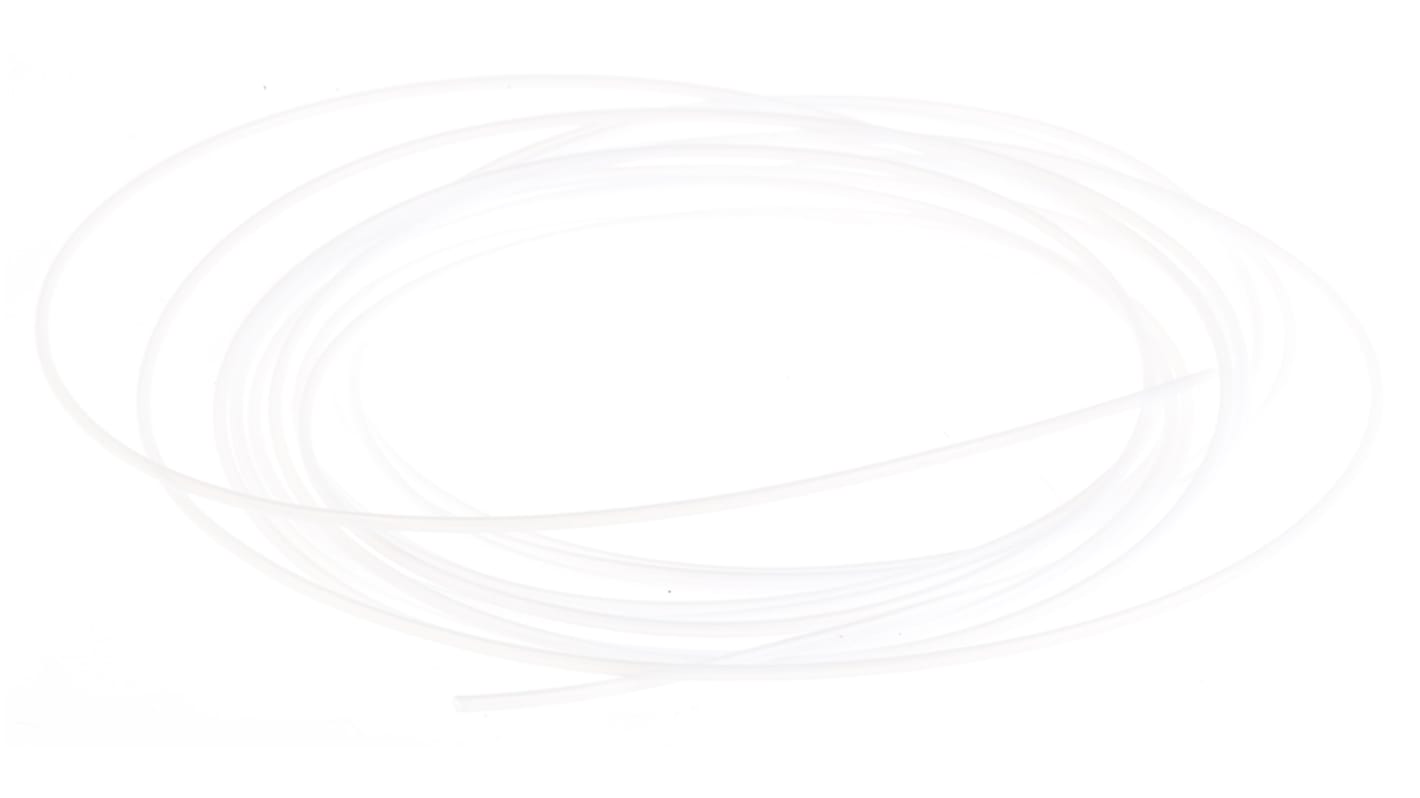

RS PRO PTFE Clear Cable Sleeve, 1.01mm Diameter

  • RS Stock No. 178-9507
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Applications
Provides insulation and mechanical protection in severe chemical and high temperature environments to prevent contamination and corrosion and abrasion resistance.
Characteristic
Highly flame retardant
Supreme chemical resistance
Excellent insulation, abrasion resistance
Non-contamination

Specifications
Attribute Value
Sleeve Diameter 1.01mm
Colour Clear
Material PTFE
Minimum Operating Temperature -65°C
Maximum Operating Temperature +260°C
Fire Behaviour Flame Retardant
Dielectric Strength <gteq/>45kV/mm
Wall Thickness 0.3mm
Series NSPTFE
581 In Global stock for delivery within 4 - 6 working days
Price 1 Bag of 5 Metre(s)
MYR 26.29
Bag(s)
Per Bag
Per Metre*
1 +
MYR26.29
MYR5.258
*price indicative
