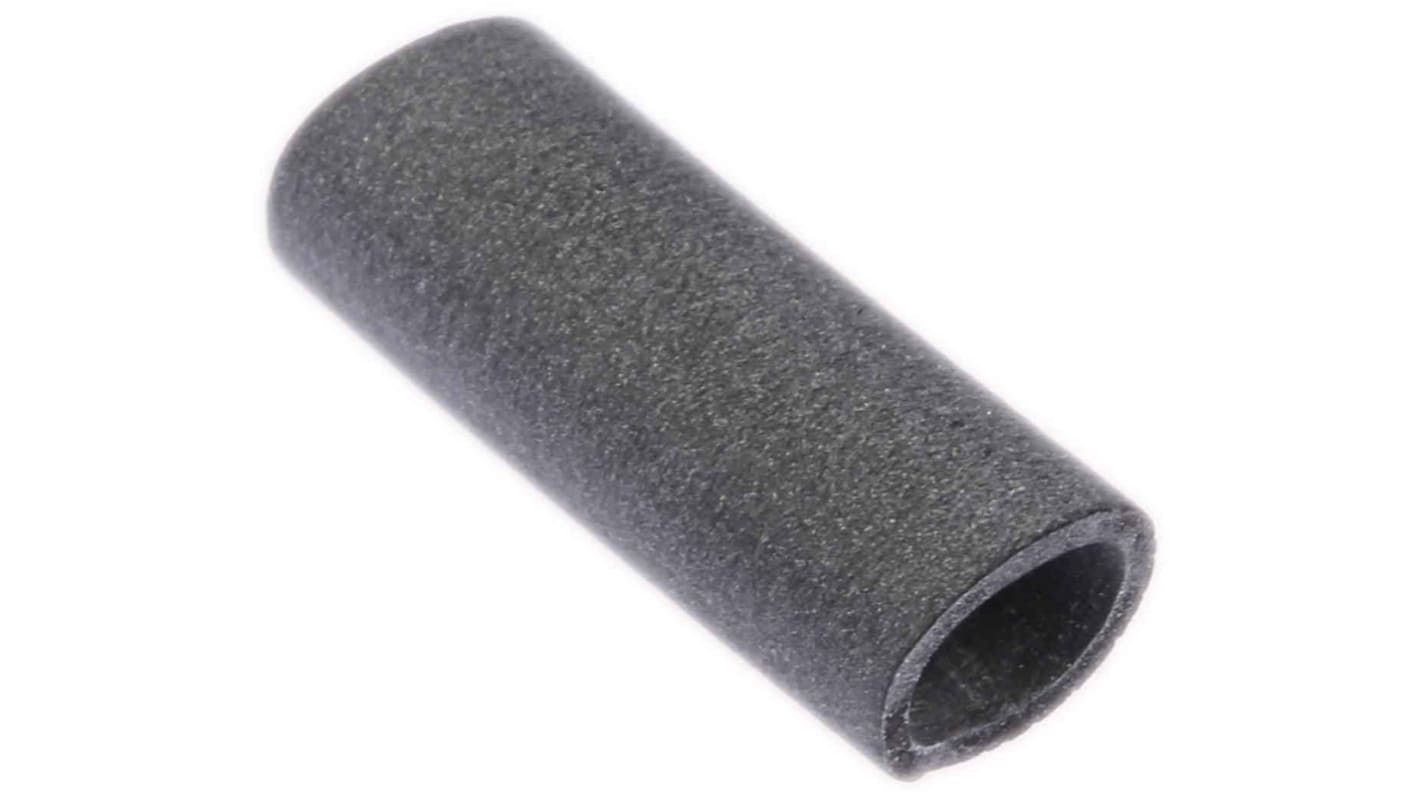

HellermannTyton Expandable Chloroprene Black Cable Sleeve, 7.5mm Diameter, 25mm Length

  • RS Stock No. 399-782
  • Mfr. Part No. 902-01462 T50RPRN-PA66-BN (100)
  • Manufacturer HellermannTyton
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

Polychloroprene Expandable Sleeves

Manufactured from an extruded neoprene/chloroprene compound, this cable sleeve is ideal for binding and identification of cable harnesses; they also have good resistance to mineral and vegetable oils, fuel, acids, moisture, ozone and UV rays.

Features and Benefits

Supplied in pre-cut lengths
Highly elastic
Covers many cable diameters with one size
Easy to apply

Applications

The rubber sleeves can be used in aerospace, automotive, construction, consumer electronics, defence, mass transit and telecommunications applications.

Specifications
Attribute Value
Sleeve Diameter 7.5mm
Colour Black
Material Chloroprene
Sleeve Length 25mm
Expandable Yes
Minimum Cable Diameter 7.5mm
Maximum Cable Diameter 15mm
Minimum Operating Temperature -65°C
Maximum Operating Temperature +95°C
Wall Thickness 1.3mm
172 In Global stock for delivery within 4 - 6 working days
Price 1 Bag of 100
MYR 43.00
Bag(s)
Per Bag
Per unit*
1 - 14
MYR43.00
MYR0.43
15 - 49
MYR41.93
MYR0.419
50 +
MYR40.85
MYR0.408
*price indicative
