RS PRO Heat Shrink Cable Marker, White, 4.7 → 10.8mm Cable
- RS Stock No.:
- 872-6261
- Manufacturer:
- RS PRO
43 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price 1 Box of 250
MYR394.37
| Box(es) | Per Box | Per Unit* |
| 1 - 14 | MYR394.37 | MYR1.577 |
| 15 - 74 | MYR374.65 | MYR1.499 |
| 75 + | MYR308.34 | MYR1.233 |
| *price indicative | ||
- RS Stock No.:
- 872-6261
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

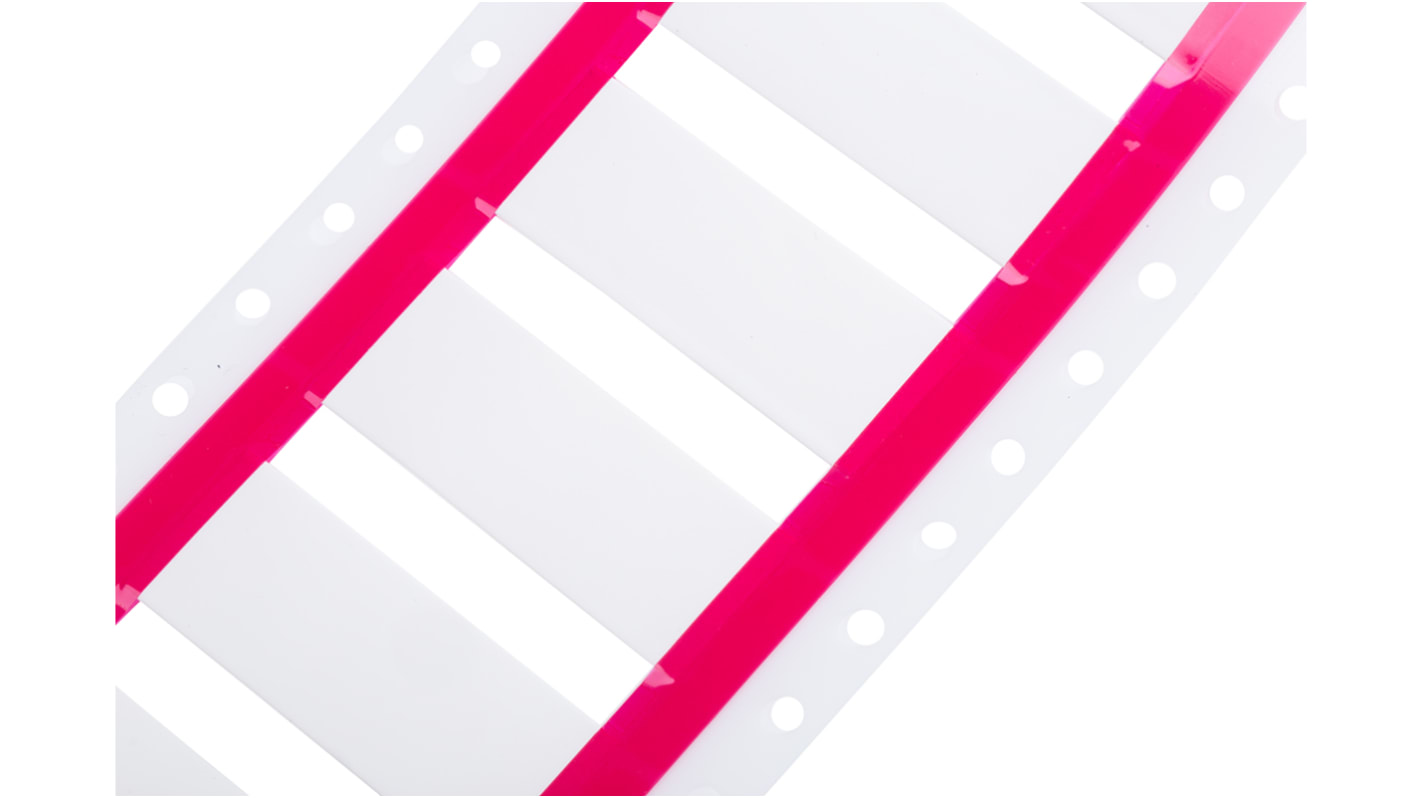

RS PRO Heat Shrink Cable Marker, White, 4.7 mm to 10.8 mm Diameter Range
When you need to organise and label your electrical wires, choose these RS PRO blank cable marker sleeves. You can easily use a laser printer to mark multiple labels and attach them to your cables with a heat gun.
The sleeves are quick and easy to tear off as they're supplied pre-cut with a dotted line. In case of an electrical fault, they won't easily catch fire thanks to their flame retardant polyolefin material.
These heat shrink sleeves are abrasion and chemical-resistant, so they're suitable for use in factories and other demanding environments. They're also safe to use in the insulation of electrical wiring thanks to their UL 224 (Underwriters Laboratories) certification.
The sleeves are quick and easy to tear off as they're supplied pre-cut with a dotted line. In case of an electrical fault, they won't easily catch fire thanks to their flame retardant polyolefin material.
These heat shrink sleeves are abrasion and chemical-resistant, so they're suitable for use in factories and other demanding environments. They're also safe to use in the insulation of electrical wiring thanks to their UL 224 (Underwriters Laboratories) certification.
Features and Benefits
- Heat shrink attaching method
- Cable diameter range of 4.7 mm to 10.8 mm
- Width of 12.7 mm
- White colour
- Operating temperature range of -55°C to +125°C
- Restriction of Hazardous Substances (RoHS) compliant
- Quantity of 250
Specifications
Attribute | Value |
|---|---|
| Affixing Method | Heat Shrink |
| Minimum Cable Diameter | 4.7mm |
| Maximum Cable Diameter | 10.8mm |
| Colour | White |
| Width | 12.7 mm |
| Quantity | 250 |
| Material | Polyolefin |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +125°C |
| Fire Behaviour | Flame Retardant |
| Resistant To | Abrasion, Chemicals |
| Cable Diameter Range | 4.7 → 10.8mm |
| Operating Temperature Range | -55 → +125 °C |
| Standards Met | cULus, RoHS Compliant |
