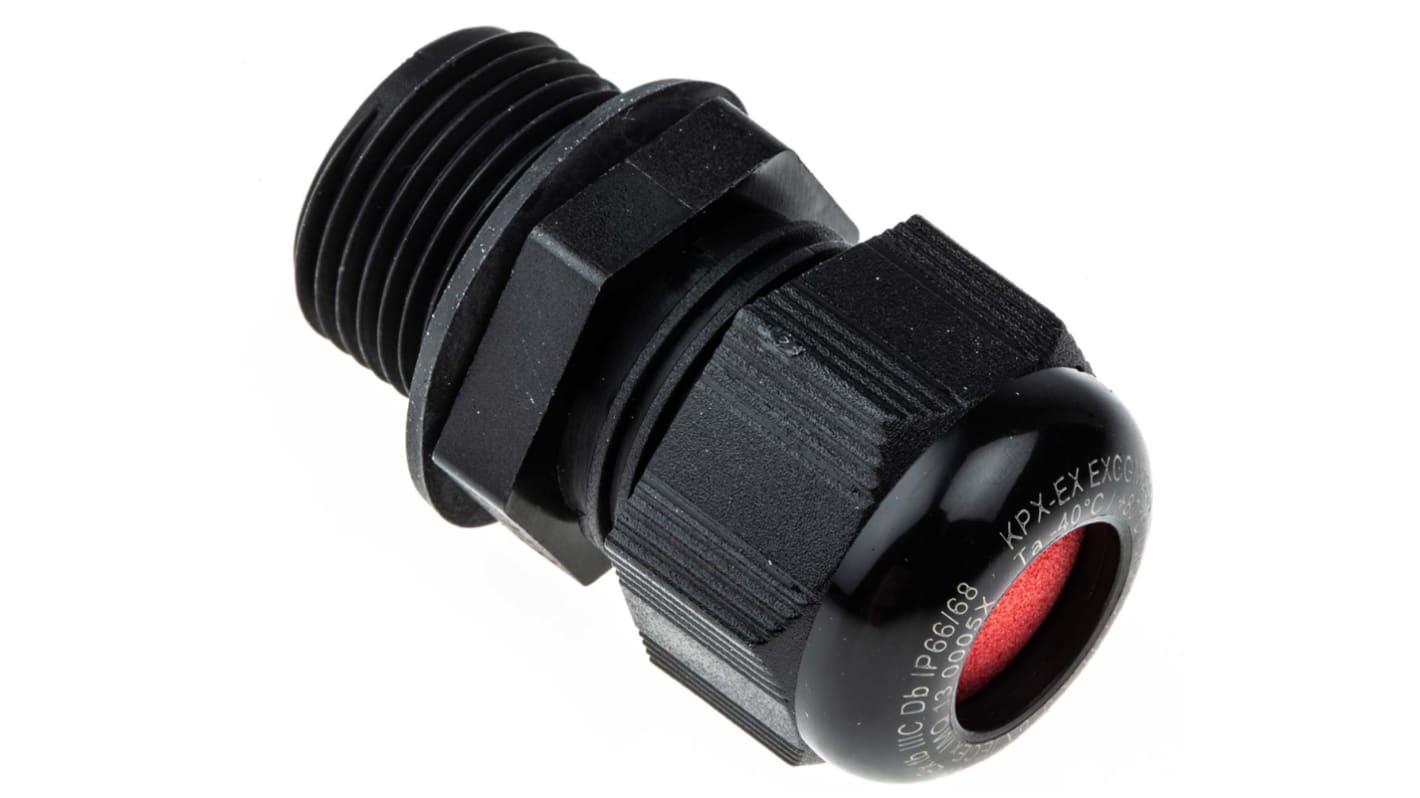

Kopex-EX CGM M20 Cable Gland Nylon, IP66, IP68, ATEX

  • RS Stock No. 813-4139
  • Mfr. Part No. EXCGM20SL
  • Manufacturer Kopex-EX
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Exe IIC Nylon Cable Gland

From Kopex, the CGM series of IP66 ATEX approved cable glands suitable for use in potentially explosive gas atmospheres. The EX rated cable glands are constructed from a tough nylon material for complete protection.

With a simple screw- on design the dome shaped glands are quick to fit, reducing precious assembly time. The IP66 dome shaped cable glands offer excellent cable retention and optimal strain relief when used through knock outs and threaded entries. This ensures a secure termination is maintained at all times.

Features and Benefits

• ATEX approved
• Exe & Extb
• IIC & IIIC
• Suitable for Zone 1, Zone 2, Zone 21 and Zone 22
• Increased safety “e” and intrinsic safety “I”
• IP66 Ingress protection
• Wide temperature range - 40°C to + 80°C
• Choice of M20, M25, M32, M40 and M50 standard metric threads
• Wide range of cable clamping sizes
• For use with Non-armoured cable

Applications

ATEX approved cable glands are intended for use areas where there is a greater risk of explosive gasses present. Some of the most common environments are

• Oil and gas
• Food and beverage
• Lighting
• Weatherproof warning lights and beacons
• Electrical enclosures

Environment

The CGM range of dome top cable glands are protected to IP66, which means they are dust tight and protected against powerful jets of water from all directions. The rugged cable glands are suitable for harsh indoor environments and some open air applications.

Note

Locknut is not included.

Standards

EC Type examination certificate: IMQ 13 ATEX 016X, IECEx IMQ 13.0005X, Ex e IIC Gb, Ex tb IIIC Db

Approvals

EN/IEC 60079-0, EN60079-7, EN60079-11, EN60079-31

Specifications
Attribute Value
Thread Size M20
Material Nylon
Maximum Cable Diameter 12mm
Minimum Cable Diameter 6mm
Colour Black
IP Rating IP66, IP68
Minimum Operating Temperature -20°C
Maximum Operating Temperature +80°C
Hazardous Area Certification ATEX
Series CGM
2200 In Global stock for delivery within 4 - 6 working days
Price Each (In a Pack of 10)
MYR 3.148
units
Per unit
Per Pack*
10 +
MYR3.148
MYR31.48
*price indicative
