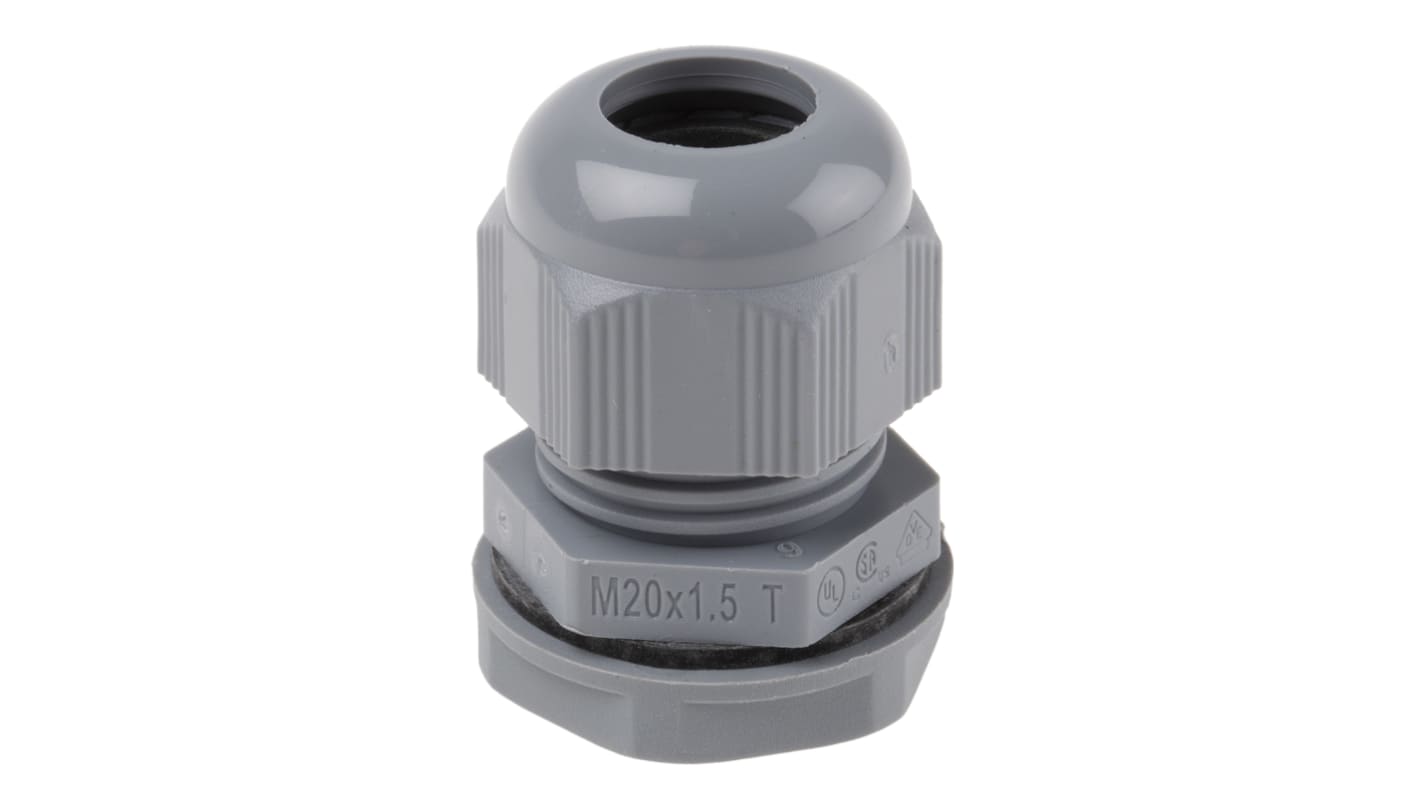

Alpha Wire FIT M20 Cable Gland With Locknut, Chloroprene Rubber (O-Ring/Seal), Polyamide, IP66, IP68

  • RS Stock No. 172-2275
  • Mfr. Part No. PMC20 SL080
  • Manufacturer Alpha Wire
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

Alpha Wire High-Quality Cable Glands

Alpha Wire offer a range of cable glands, also known as cable fittings, ideal for all of your strain relief needs. Cable glands fortify systems and protect your infrastructure against wear and tear. Providing strain relief for standard and flex focused applications. The cable glands are available in NPT, metric and PG threading options with a temperature rating up to 150° C.
The range of plastic cable glands from Alpha Wire include, threaded glands and flexible glands, both supplied with a gasket and locknut. Alpha Wire also provide hole plugs for sealing housing when no cable gland is used. The metal cable glands are made from brass with a rubber seal and NBR O-ring.

Features and Benefits

IP68 up to 5 bar rating for 30 min
Large clamping range
Robust rubber seals
Up to +150°C temperature rating
Flammability: V2 (According to UL94)

Product Application Information

Cable glands are watertight, dust resistant, dirt resistant and sand resistant (According to IP68). Cable glands can be used in telecommunications, control, instrumentation, data cables, and electrical power.

What is IP68?

The IP rating is a standard created by the IEC (International Electro-technical Commission). It determines whether a product is resistant to dirt, dust or fresh water. The first digit (6) indicates that the cable glands are resistant to harmful dust, and the second digit (8) indicates that the cable gland can be submerged beyond 1 metre under fresh water.

What is UL94?

UL94 is a flammability safety standard for plastic parts such as cable glands, designed to determine whether a flame will extinguish itself or spread once the material has been ignited. The V2 indicates that a flame will stop burning within 30 seconds on a vertical item such as a cable.

Standard Threaded Plastic Gland, PMC20 SL080

Temperature Range: -20°C to +100°C (Permanent), -30°C to +150°C (Intermittent)
Polyamide 6 body and Chloroprene rubber O-Ring/seal
Colour: Slate
Size: M-20x1.5
Clamping Range: 6 – 12 mm
Thread Length: 10 mm
Thread Diameter: 20 mm

Specifications
Attribute Value
Thread Size M20
Material Chloroprene Rubber (O-Ring/Seal), Polyamide
Maximum Cable Diameter 12mm
Minimum Cable Diameter 6mm
Colour Slate
IP Rating IP66, IP68
Minimum Operating Temperature -20°C
Maximum Operating Temperature +150°C
Fire Behaviour Flame Retardant, Self-extinguishing
Series FIT
Standards Met CSA C22.2 Certified, UL 514 Listed, UL 94 V-2
Locknut Included Yes
190 In Global stock for delivery within 4 - 6 working days
Price Each (In a Bag of 10)
MYR 6.54
units
Per unit
Per Bag*
10 - 140
MYR6.54
MYR65.40
150 - 240
MYR6.215
MYR62.15
250 - 490
MYR6.02
MYR60.20
500 +
MYR5.884
MYR58.84
*price indicative
