Texas Instruments, LM46002PWPT Switching Regulator, 1-Channel 2A Adjustable 16-Pin, HTSSOP

RS Stock No.:: 823-9293
Mfr. Part No.:: LM46002PWPT
Manufacturer:: Texas Instruments

Texas Instruments, LM46002PWPT Switching Regulator, 1-Channel 2A Adjustable 16-Pin, HTSSOP

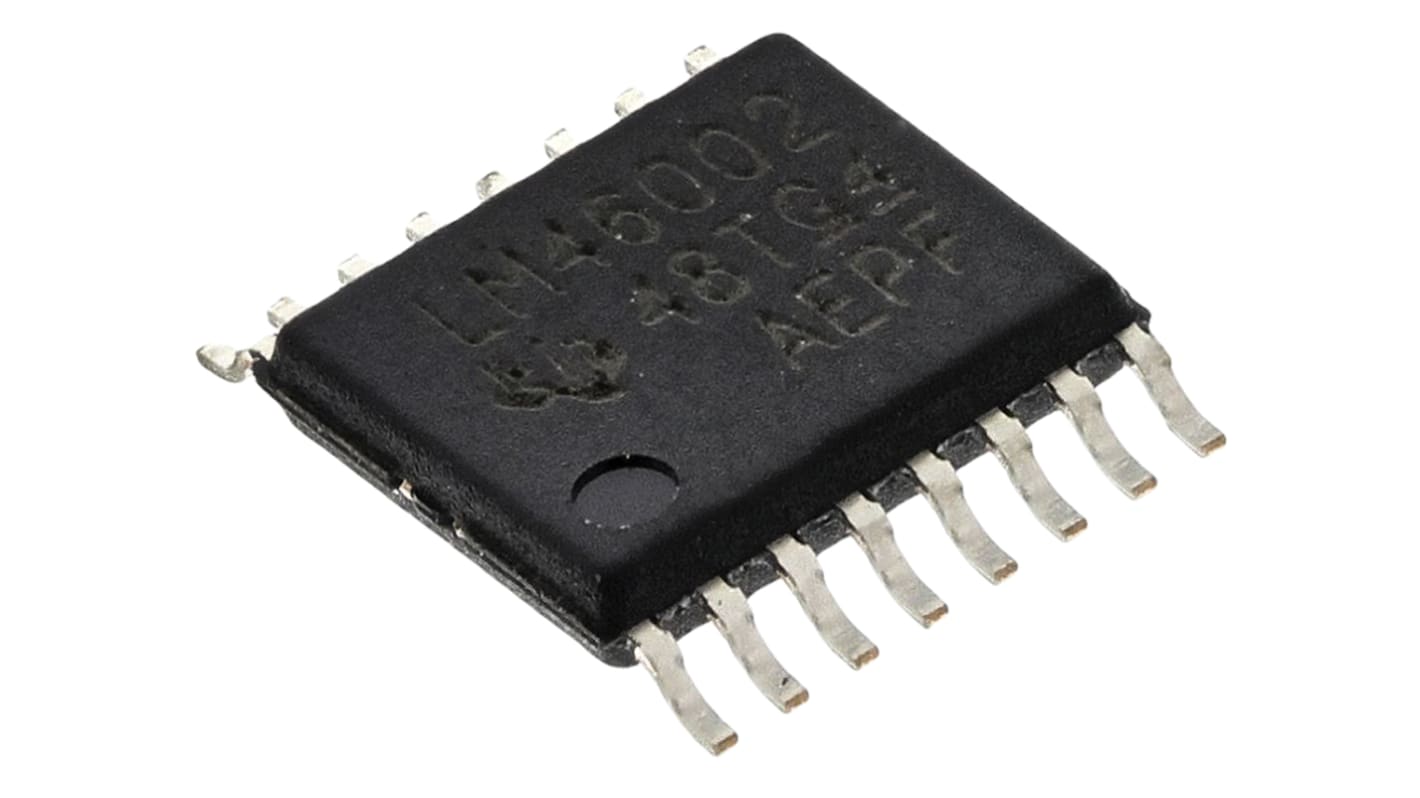

This image is representative of the product range

352 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

Added

Price Each (In a Pack of 2)

MYR25.82

Units	Per Unit	Per Pack*
2 - 62	MYR25.82	MYR51.64
64 - 124	MYR24.19	MYR48.38
126 +	MYR22.905	MYR45.81
*price indicative

RS Stock No.:: 823-9293
Mfr. Part No.:: LM46002PWPT
Manufacturer:: Texas Instruments

Legislation and Compliance

Product Details

SIMPLE SWITCHER® Step-Down Regulators, LM4360x & LM4600x Series

Synchronous step-down (buck) switching regulators from Texas Instruments' LM4360x and LM4600x range of SIMPLE SWITCHER® devices

Input voltage range: 3.5V to 36V (LM4360x)
Input voltage range: 3.5V to 60V (LM46002)
Microamperes Quiescent Current in Regulation
High Efficiency at Light Load (DCM and PFM)
Integrated Synchronous Rectification
Adjustable Frequency Range

Standards

EN55022/CISPR 22 EMI Standards

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

SIMPLE SWITCHER® Regulators, Texas Instruments

Use for wide voltage inputs designs up to 75V, and a balance between ease of use and flexibility.

Specifications

Attribute	Value
Maximum Output Current	2A
Maximum Output Voltage	28 V
Regulator Function	Step Down
Minimum Output Voltage	1 V
Minimum Input Voltage	3.5 V
Maximum Input Voltage	60 V
Output Type	Adjustable
Mounting Type	Surface Mount
Number of Outputs	1
Maximum Switching Frequency	2.2 MHz
Pin Count	16
Package Type	HTSSOP
Switching Regulator	Yes
Minimum Operating Temperature	-40 °C
Length	5.1mm
Height	1.05mm
Dimensions	5.1 x 4.5 x 1.05mm
Width	4.5mm
Maximum Operating Temperature	+125 °C
