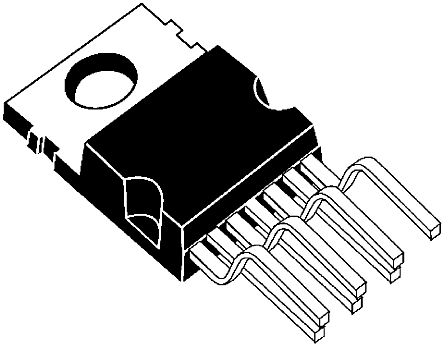

Linear Technology, LT1074CT7#PBF Step-Down Switching Regulator 5A Adjustable, 2.5 → 50 V 7-Pin, TO-220
- RS Stock No. 545-5859
- Mfr. Part No. LT1074CT7#PBF
- Manufacturer Analog Devices
Technical data sheets
Product Details
Step-down (Buck) Converters with Inverting Capability, Linear Technology
Switching Voltage Regulators, Linear Technology
Linear Technology product series of synchronous and non-synchronous internal switching regulator ICs offer high efficiency plus a wide input voltage range and switching frequencies up to 4MHz.
The controllers span over several types of configurations from buck (step-down), boost (step-up), buck-boost, forward, Isolated, Inverting and flyback controllers. The Flyback, Forward and Isolated Controllers primary and secondary side provide a solution to help replace the DC/DC bricks that get used in back-plane power conversion.
Specifications
| Attribute | Value |
|---|---|
| Maximum Output Current | 5A |
| Maximum Output Voltage | 50 V |
| Regulator Function | Buck Controller |
| Minimum Output Voltage | 2.5 V |
| Minimum Input Voltage | 7.3 V |
| Maximum Input Voltage | 45 V |
| Output Type | Adjustable |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Pin Count | 7 |
| Package Type | TO-220 |
| Switching Regulator | Yes |
| Line Regulation | 0.02 %/V |
| Maximum Operating Temperature | +70 °C |
| Length | 10.54mm |
| Width | 4.57mm |
| Dimensions | 10.54 x 4.57 x 9.4mm |
| Height | 9.4mm |
| Maximum Switching Frequency | 110 kHz |
| Minimum Operating Temperature | 0 °C |
Temporarily out of stock - back order for despatch 03/08/2020, delivery within 4 working days from despatch date
Price Each
MYR
59.22
units
Per unit
1 - 9
MYR59.22
10 - 49
MYR59.18
50 - 99
MYR54.94
100 - 249
MYR53.07
250 +
MYR51.42
