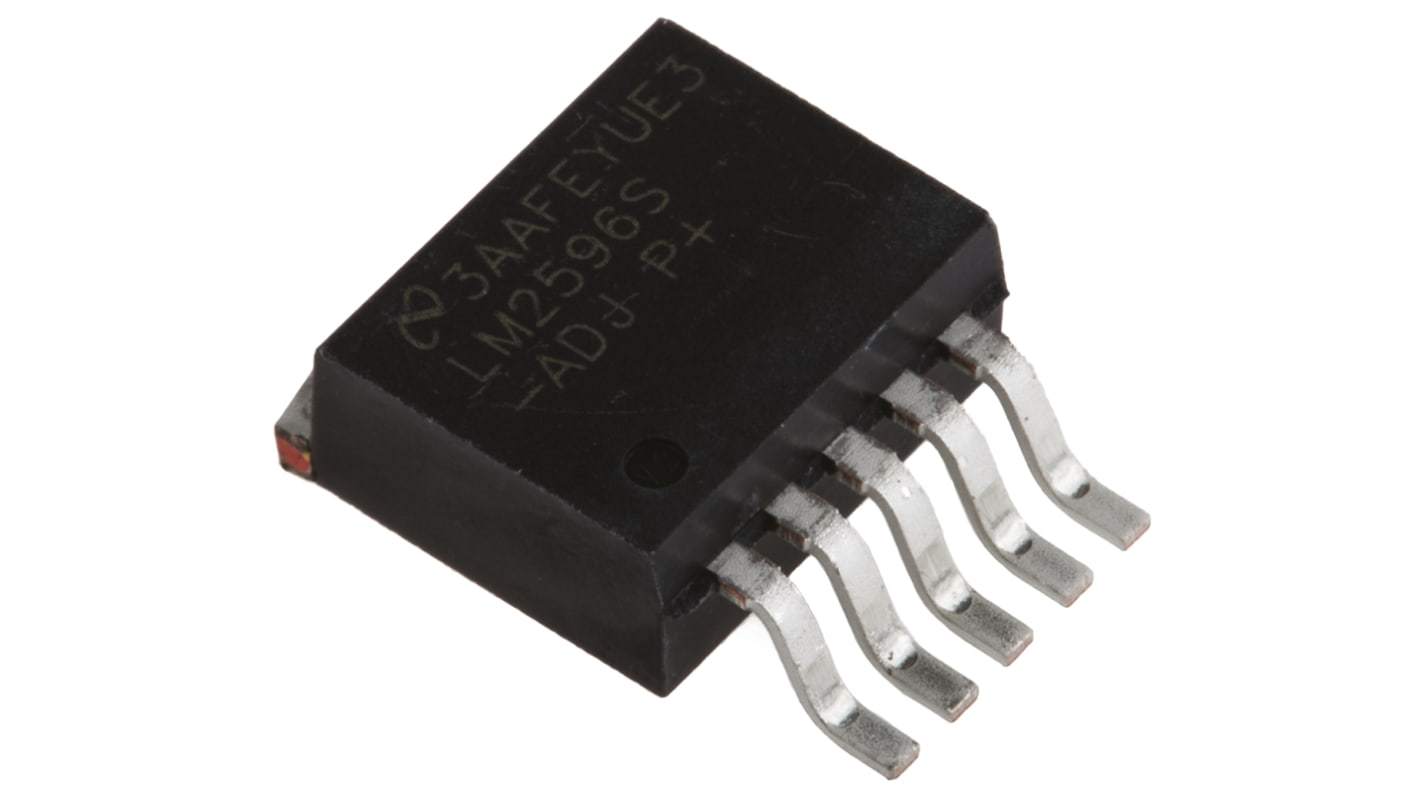

Texas Instruments, LM2596S-ADJ/NOPB Step-Down Switching Regulator, 1-Channel 3A Adjustable 5-Pin, D2PAK
- RS Stock No.:
- 533-3715
- Mfr. Part No.:
- LM2596S-ADJ/NOPB
- Manufacturer:
- Texas Instruments
13 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
182 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR40.46
| Units | Per Unit |
| 1 - 11 | MYR40.46 |
| 12 - 59 | MYR39.66 |
| 60 + | MYR32.63 |
- RS Stock No.:
- 533-3715
- Mfr. Part No.:
- LM2596S-ADJ/NOPB
- Manufacturer:
- Texas Instruments
Legislation and Compliance
Product Details
SIMPLE SWITCHER® Step-Down Regulators, LM259x Series
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
SIMPLE SWITCHER® Regulators, Texas Instruments
Use for wide voltage inputs designs up to 75V, and a balance between ease of use and flexibility.
Specifications
Attribute | Value |
|---|---|
| Maximum Output Current | 3A |
| Maximum Output Voltage | 37 V |
| Regulator Function | Buck Controller, Inverting |
| Minimum Output Voltage | 1.2 V |
| Minimum Input Voltage | 4.5 V |
| Maximum Input Voltage | 40 V |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Pin Count | 5 |
| Maximum Switching Frequency | 173 kHz |
| Package Type | D2PAK (TO-263) |
| Switching Regulator | Yes |
| Width | 8.64mm |
| Length | 10.16mm |
| Maximum Operating Temperature | +125 °C |
| Dimensions | 10.16 x 8.64 x 4.57mm |
| Height | 4.57mm |
| Efficiency | 73% |
| Minimum Operating Temperature | -40 °C |
