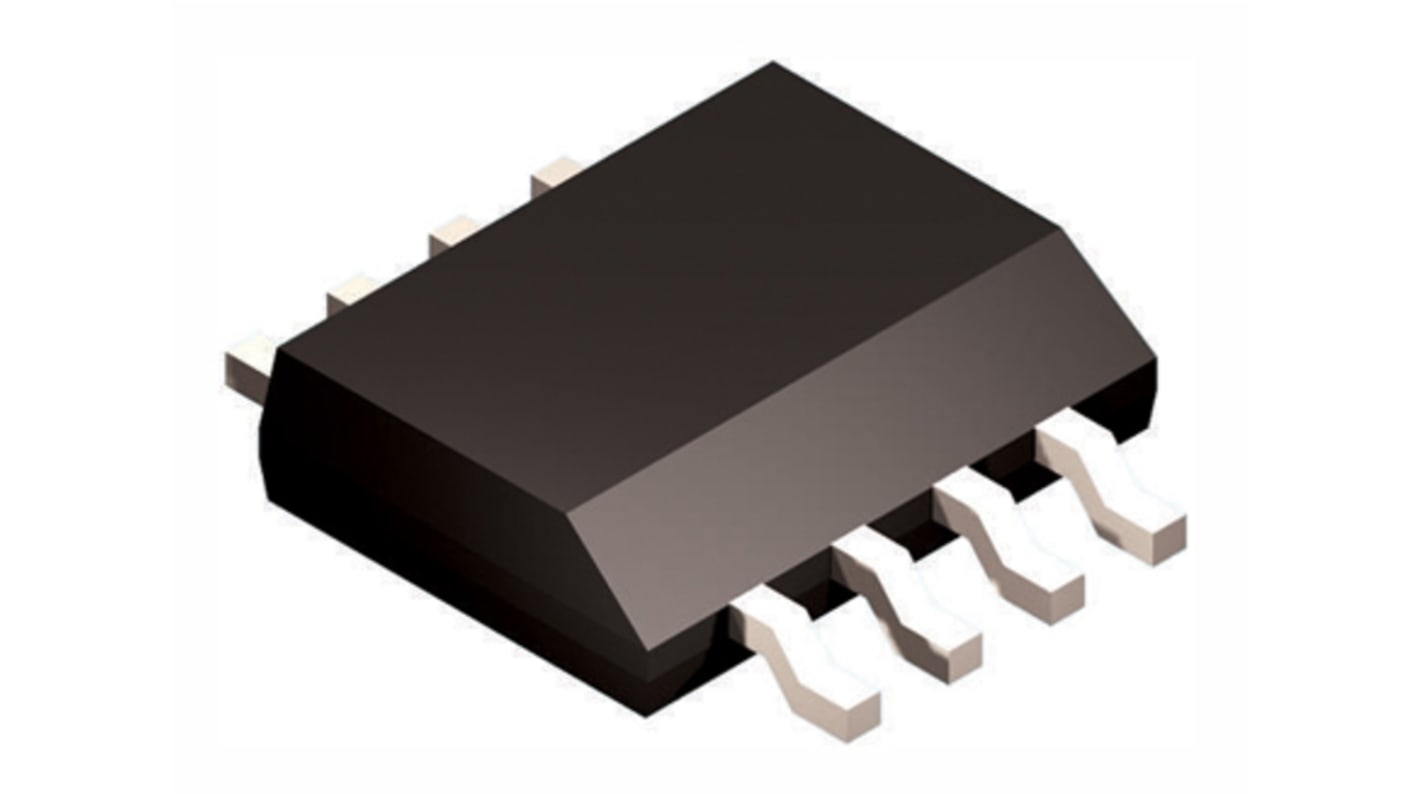

Texas Instruments, LM22676MRE-ADJ/NOPB Step-Down Switching Regulator 3A Adjustable 8-Pin, PSOP

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): MY
Product Details

SIMPLE SWITCHER® Step-Down Regulators, LM2267x & LM22680 Series

Wide input voltage range: 4.5V to 42V
Internally compensated voltage mode control for small BOM count
Stable with low ESR ceramic capacitors
Switching frequency of 500kHz, adjustable between 200kHz and 1MHz
Precision enable pin
Integrated boot diode
Integrated soft-start
Fully WEBENCH® Design enabled

SIMPLE SWITCHER® Regulators, Texas Instruments

Use for wide voltage inputs designs up to 75V, and a balance between ease of use and flexibility.

Attribute Value
Maximum Output Current 3A
Regulator Function Buck Controller
Minimum Output Voltage 1.258 V
Minimum Input Voltage 4.5 V
Maximum Input Voltage 42 V
Output Type Adjustable
Mounting Type Surface Mount
Number of Outputs 1
Pin Count 8
Package Type PSOP
Switching Regulator Yes
Width 3.94mm
Minimum Operating Temperature -40 °C
Height 1.47mm
Maximum Operating Temperature +125 °C
Length 4.93mm
Dimensions 4.93 x 3.94 x 1.47mm
Efficiency 90%
Maximum Switching Frequency 600 kHz
250 In Global stock for delivery within 4 - 6 working days
Price Each (On a Reel of 250)
MYR 13.62
Per unit
Per Reel*
250 +
*price indicative
