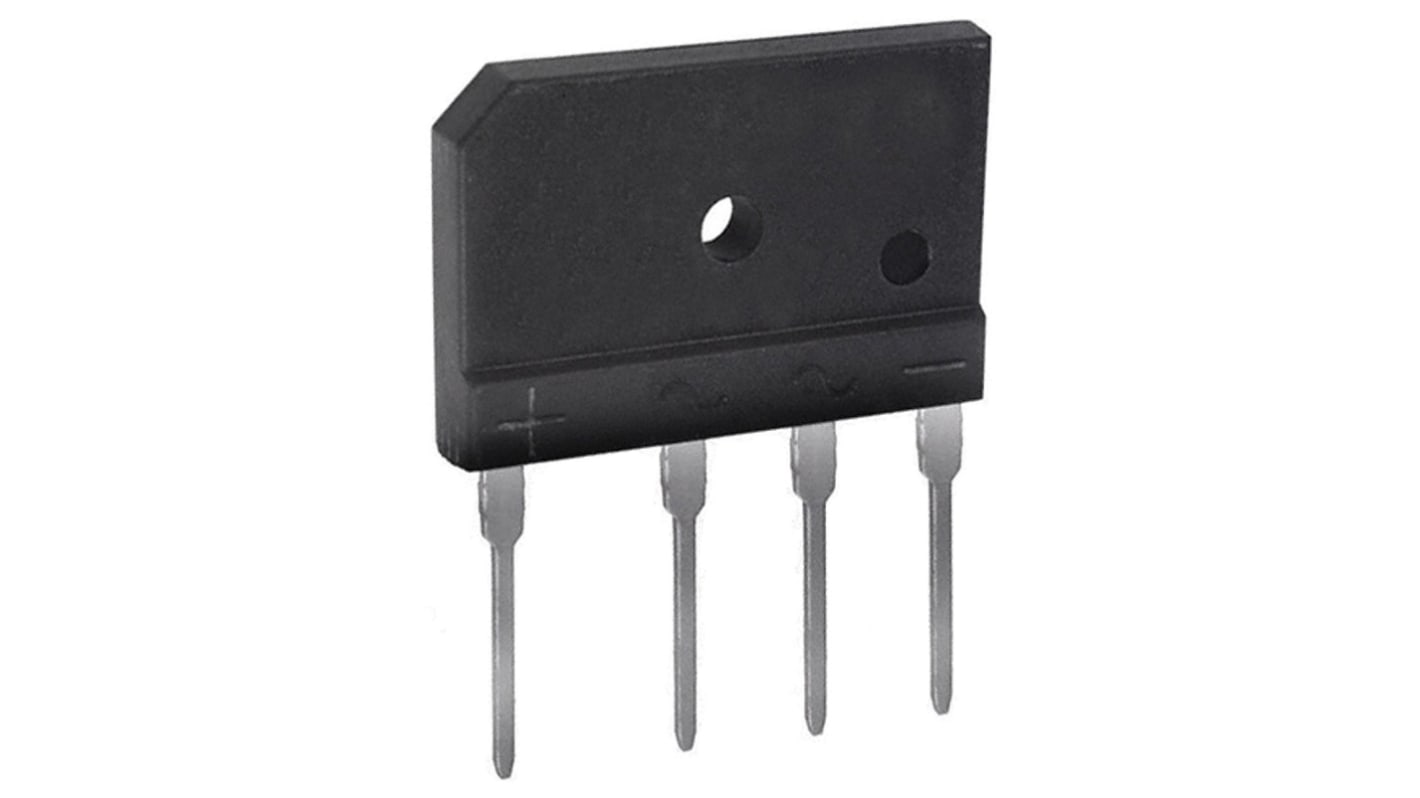

HY Electronic Corp Bridge Rectifier, 35A, 1000V, 4-Pin
- RS Stock No.:
- 923-5407
- Mfr. Part No.:
- GBJ3510
- Manufacturer:
- HY Electronic Corp
195 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
165 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Tube of 15)
MYR5.233
| Units | Per Unit | Per Tube* |
| 15 - 75 | MYR5.233 | MYR78.495 |
| 90 - 165 | MYR5.123 | MYR76.845 |
| 180 - 360 | MYR4.966 | MYR74.49 |
| 375 - 735 | MYR4.846 | MYR72.69 |
| 750 + | MYR4.741 | MYR71.115 |
| *price indicative | ||
- RS Stock No.:
- 923-5407
- Mfr. Part No.:
- GBJ3510
- Manufacturer:
- HY Electronic Corp
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Bridge Rectifier - GBJ Series
The GBJ series are glass passivated bridge rectifiers with a forward current that ranges from 6 A to 50 A and 600 V or 1000 VRRM. The HY Electronic (Cayman) Limited rectifier has a PRV rating of 1000 V and the plastic material have UL flammability classification. It can be mounted on the PCB and it transforms Alternating current (AC) into direct current (DC).
Flammability classification UL94V-0
Low forward voltage drop
High current capability
Low forward voltage drop
High current capability
Bridge Rectifiers - HY Electronic (Cayman) Limited
Specifications
Attribute | Value |
|---|---|
| Peak Average Forward Current | 35A |
| Bridge Type | Single Phase |
| Peak Reverse Repetitive Voltage | 1000V |
| Mounting Type | Through Hole |
| Package Type | GBJ |
| Pin Count | 4 |
| Configuration | Single |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
| Peak Forward Voltage | 1.1V |
| Peak Reverse Current | 500µA |
| Length | 30.3mm |
| Dimensions | 30.3 x 4.8 x 19.7mm |
| Width | 4.8mm |
| Height | 19.7mm |
| Junction Capacitance | 85pF |
