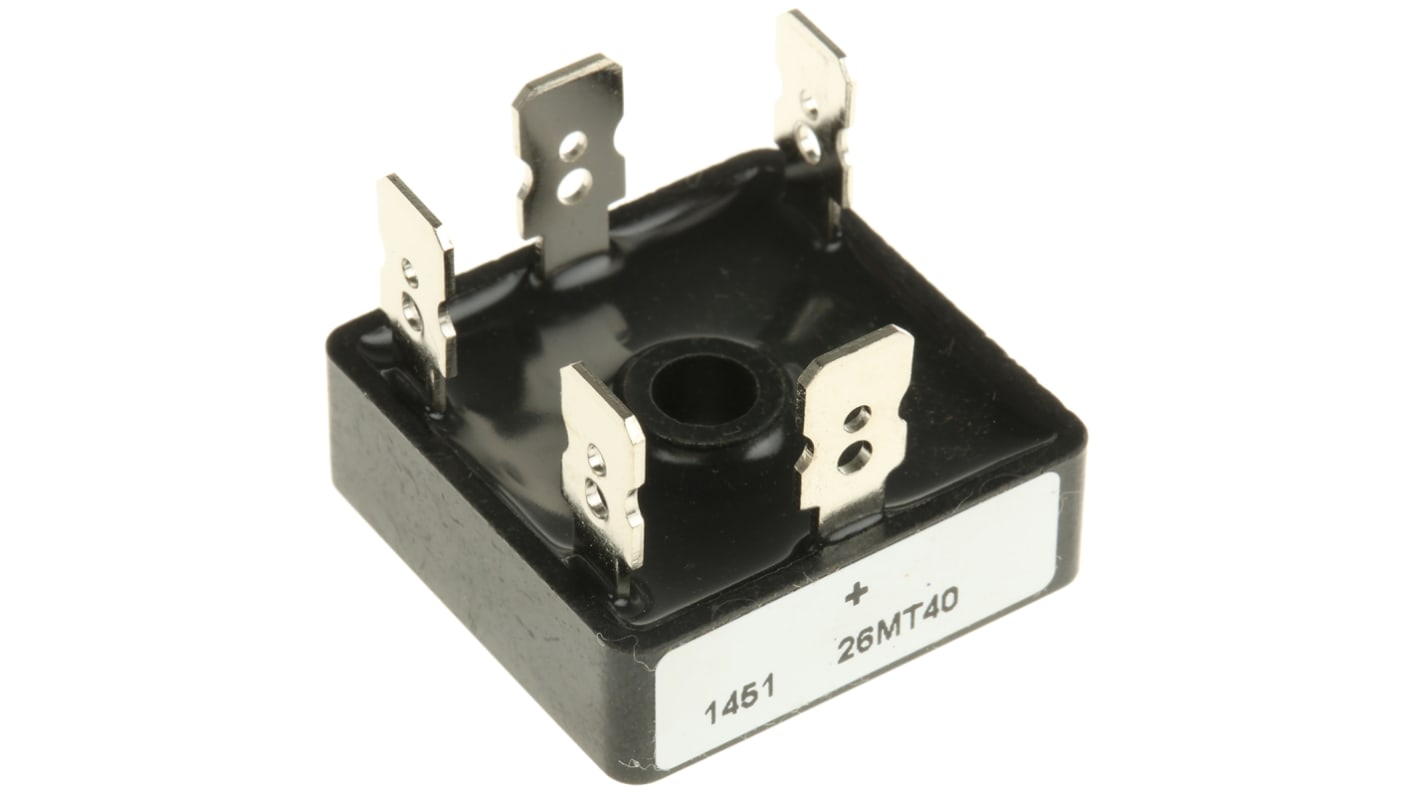

Vishay Bridge Rectifier, 25A, 400V, 3-phase, 5-Pin
- RS Stock No.:
- 700-5336
- Mfr. Part No.:
- VS-26MT40
- Manufacturer:
- Vishay
4 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR73.91
| Units | Per Unit |
| 1 - 4 | MYR73.91 |
| 5 - 9 | MYR69.20 |
| 10 + | MYR63.67 |
- RS Stock No.:
- 700-5336
- Mfr. Part No.:
- VS-26MT40
- Manufacturer:
- Vishay
Technical data sheets
Legislation and Compliance
Product Details
Three Phase Bridge Rectifiers with Push-on Terminals, VS-26MT Series, Vishay Semiconductor
Universal, 3-way terminals: Push-on, wrap around or solder
High thermal conductivity package, electrically insulated case
Center hole fixing
Excellent power/volume ratio
High thermal conductivity package, electrically insulated case
Center hole fixing
Excellent power/volume ratio
Approvals
UL E300359
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Bridge Rectifiers - Vishay Semiconductor
The Bridge Rectifier converts an Alternating Current (AC) input into a Direct Current (DC) output for full-wave rectification applications. The diode arrangement provides the same polarity of output for either polarity of input. A three-phase full-wave rectifier is an arrangement of six diodes in a bridge circuit configuration. The packages are designed for minimal size, highest reliability and maximum thermal performance.
Specifications
Attribute | Value |
|---|---|
| Peak Average Forward Current | 25A |
| Bridge Type | Three Phase |
| Peak Reverse Repetitive Voltage | 400V |
| Mounting Type | Through Hole |
| Package Type | D 63 |
| Pin Count | 5 |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 375A |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
| Peak Forward Voltage | 1.26V |
| Peak Reverse Current | 200µA |
| Dimensions | 28.5 x 28.5 x 10mm |
| Length | 28.5mm |
| Height | 10mm |
| Width | 28.5mm |
