Taiwan Semiconductor Bridge Rectifier, 35A, 1000V, 4-Pin

RS Stock No.:: 169-9167
Mfr. Part No.:: GBPC3510W T0
Manufacturer:: Taiwan Semiconductor

Taiwan Semiconductor Bridge Rectifier, 35A, 1000V, 4-Pin

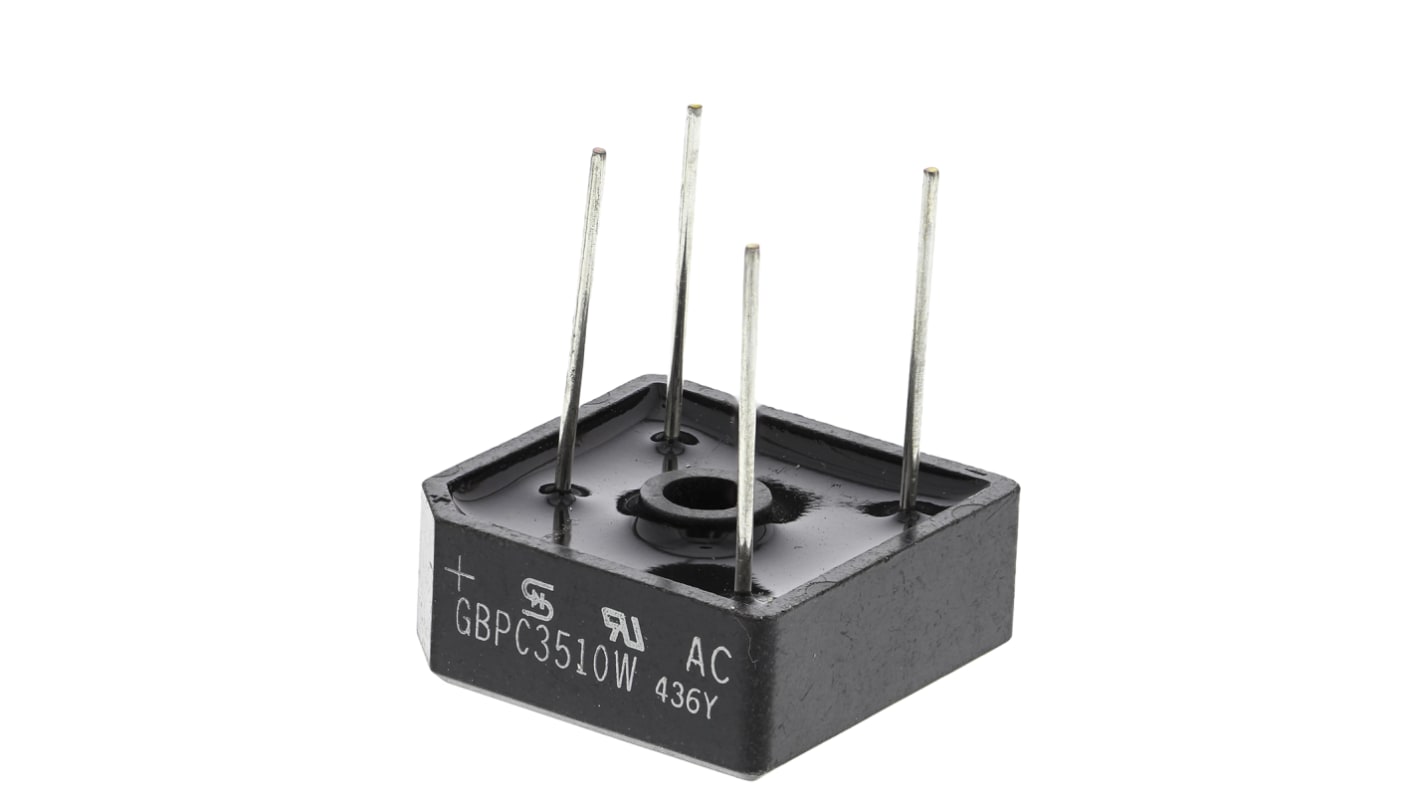

This image is representative of the product range

500 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

Added

Price Each (In a Tray of 100)

MYR19.818

Units	Per Unit	Per Tray*
100 - 100	MYR19.818	MYR1,981.80
200 - 300	MYR19.382	MYR1,938.20
400 +	MYR19.025	MYR1,902.50
*price indicative

RS Stock No.:: 169-9167
Mfr. Part No.:: GBPC3510W T0
Manufacturer:: Taiwan Semiconductor

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

Bridge Rectifiers with Wire Leads, GBPC35xxW Series, Taiwan Semiconductor

High Current 35 Amperes
Integrally molded heat-sink provided very low thermal resistance for maximum heat dissipation
Isolated voltage from case to lead over 2500V
Wire Lead structure for Printed Circuit Board (PCB) through hole mounting

Approvals

UL E-96005

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Bridge Rectifiers - Taiwan Semiconductor

A Bridge Rectifier is a diode common application, known for converting an Alternating Current (AC) input into Direct Current a (DC) output. A diode bridge is an arrangement of four diodes in a bridge circuit configuration that provides the same polarity of output for either polarity of input.

Specifications

Attribute	Value
Peak Average Forward Current	35A
Bridge Type	Single Phase
Peak Reverse Repetitive Voltage	1000V
Mounting Type	Through Hole
Package Type	GBPC-W
Pin Count	4
Diode Technology	Silicon Junction
Configuration	Single
Peak Non-Repetitive Forward Surge Current	400A
Maximum Operating Temperature	+150 °C
Minimum Operating Temperature	-50 °C
Peak Forward Voltage	1.1V
Peak Reverse Current	5µA
Dimensions	29 x 29 x 11.23mm
Length	29mm
Height	11.23mm
Width	29mm
