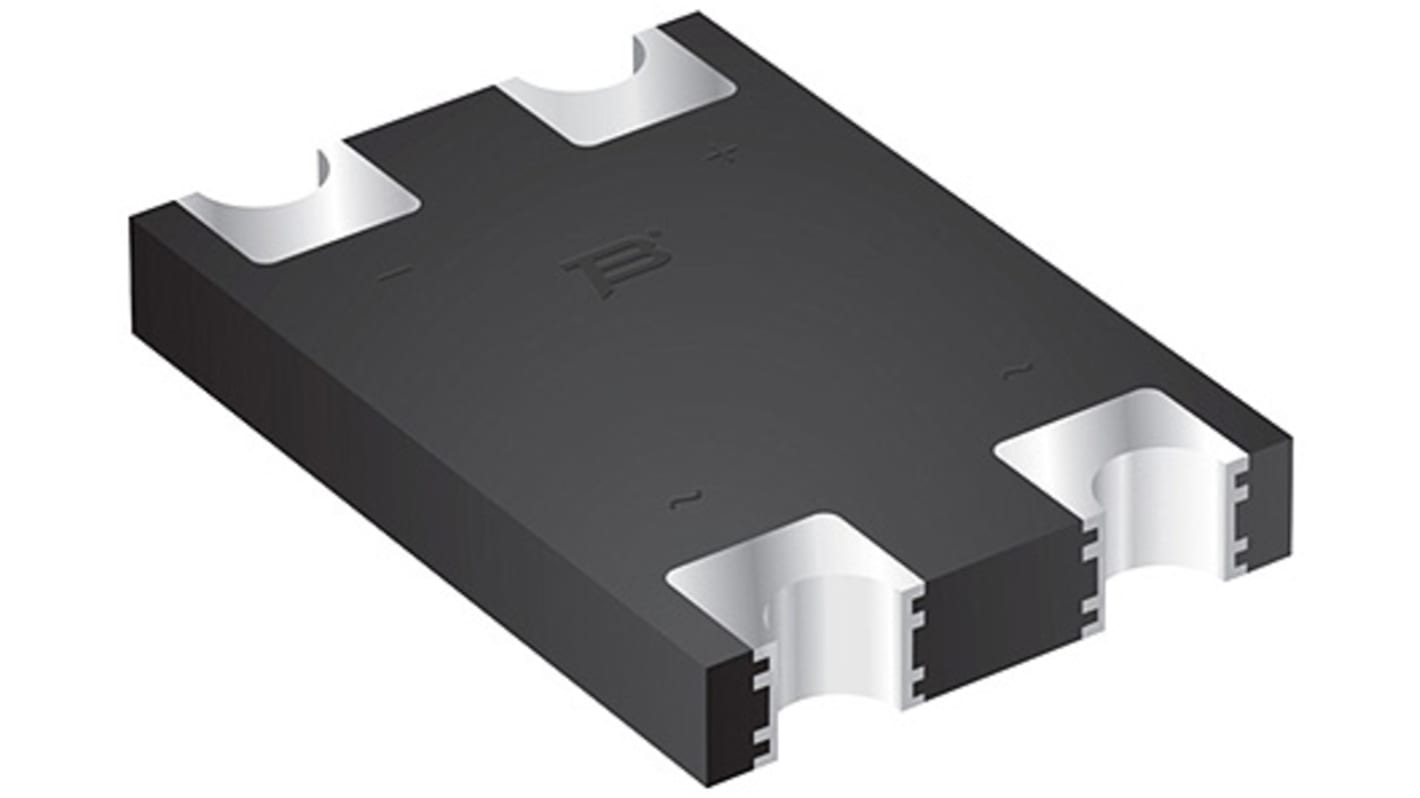

Bourns CD-HD2004, Bridge Rectifier, 2A 40V, 4-Pin SMT

  • RS Stock No. 126-1771
  • Mfr. Part No. CD-HD2004
  • Manufacturer Bourns
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

SMT Schottky Bridge Rectifiers, Bourns Electronics

A range of high performance Schottky diode bridge rectifiers in compact surface mounting chip packages from Bourns Electronics.

Schottky barrier technology provides ultra low forward voltage drop
Compact low-profile SMT package
Voltage ratings of 40V or 100V
Forward current ratings 1A or 2A

Bridge Rectifiers - Bourns Electronics

A Bridge Rectifier is a diode common application, known for converting an Alternating Current (AC) input into Direct Current a (DC) output. A diode bridge is an arrangement of four diodes in a bridge circuit configuration that provides the same polarity of output for either polarity of input.

Specifications
Attribute Value
Bridge Type Single Phase
Peak Average Forward Current 2A
Peak Reverse Repetitive Voltage 40V
Mounting Type Surface Mount
Package Type SMT
Pin Count 4
Diode Technology Schottky
Configuration Single
Peak Non-Repetitive Forward Surge Current 50A
Maximum Operating Temperature +125 °C
Minimum Operating Temperature -55 °C
Peak Forward Voltage 500mV
Peak Reverse Current 200µA
Length 6.25mm
Height 1.22mm
Junction Capacitance 250pF
Dimensions 6.25 x 4.85 x 1.22mm
Width 4.85mm
