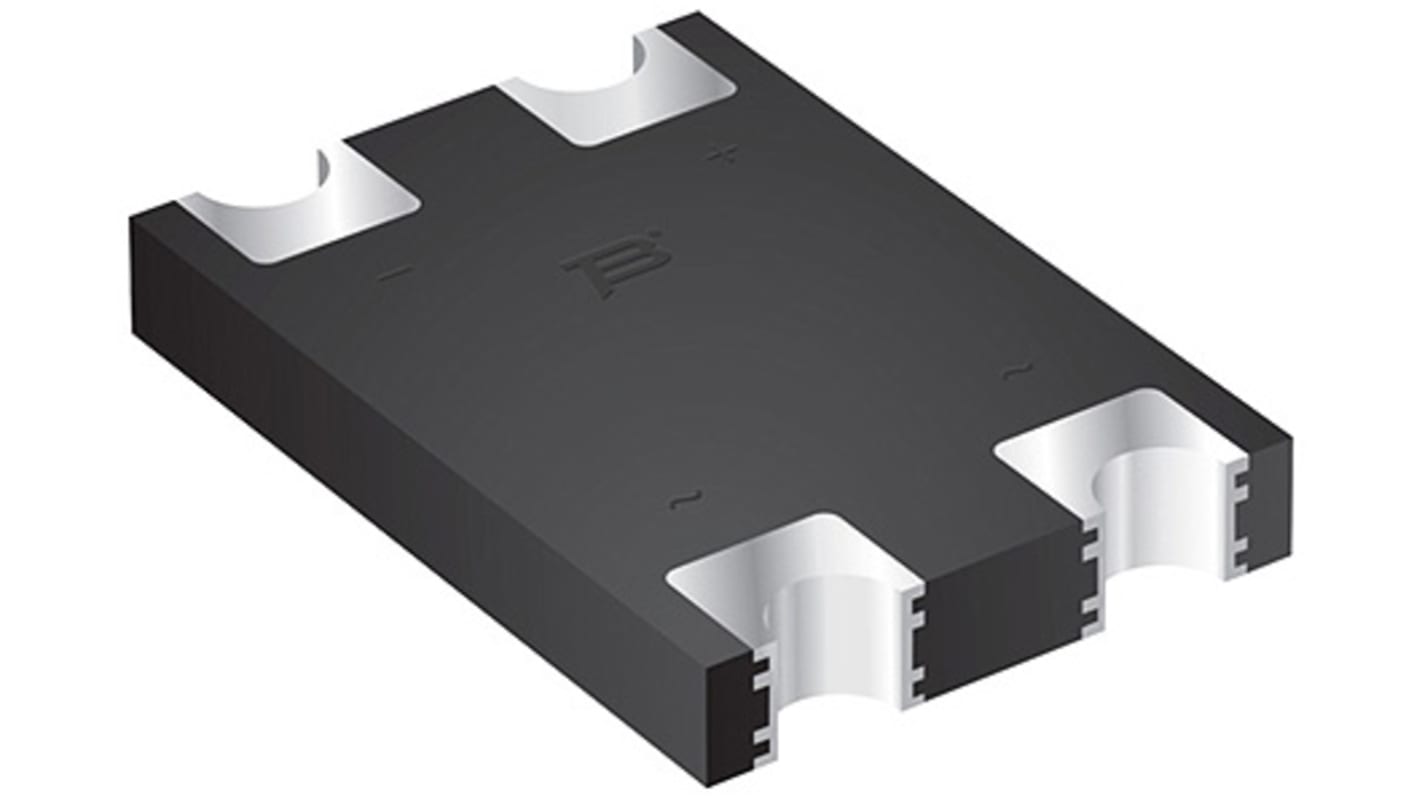

Bourns Bridge Rectifier, 2A, 600V, 4-Pin
- RS Stock No.:
- 126-1768
- Mfr. Part No.:
- CD-MBL206SL
- Manufacturer:
- Bourns
12500 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Pack of 25)
MYR1.772
| Units | Per Unit | Per Pack* |
| 25 - 75 | MYR1.772 | MYR44.30 |
| 100 - 475 | MYR1.735 | MYR43.375 |
| 500 - 975 | MYR1.682 | MYR42.05 |
| 1000 - 4975 | MYR1.642 | MYR41.05 |
| 5000 + | MYR1.606 | MYR40.15 |
| *price indicative | ||
- RS Stock No.:
- 126-1768
- Mfr. Part No.:
- CD-MBL206SL
- Manufacturer:
- Bourns
Technical data sheets
Legislation and Compliance
Product Details
Compact SMT Bridge Rectifiers, Bourns Electronics
A range of high performance bridge rectifiers in compact surface mounting chip packages from Bourns Electronics.
Compact low-profile SMT package
Voltage ratings of 600V or 1000V
Forward current ratings 2A or 4A
Voltage ratings of 600V or 1000V
Forward current ratings 2A or 4A
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Bridge Rectifiers - Bourns Electronics
A Bridge Rectifier is a diode common application, known for converting an Alternating Current (AC) input into Direct Current a (DC) output. A diode bridge is an arrangement of four diodes in a bridge circuit configuration that provides the same polarity of output for either polarity of input.
Specifications
Attribute | Value |
|---|---|
| Peak Average Forward Current | 2A |
| Bridge Type | Single Phase |
| Peak Reverse Repetitive Voltage | 600V |
| Mounting Type | Surface Mount |
| Package Type | SMT |
| Pin Count | 4 |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 60A |
| Maximum Operating Temperature | +175 °C |
| Minimum Operating Temperature | -55 °C |
| Peak Forward Voltage | 960mV |
| Peak Reverse Current | 5µA |
| Dimensions | 5.9 x 5.4 x 1.35mm |
| Length | 5.9mm |
| Width | 5.4mm |
| Junction Capacitance | 35pF |
| Height | 1.35mm |
