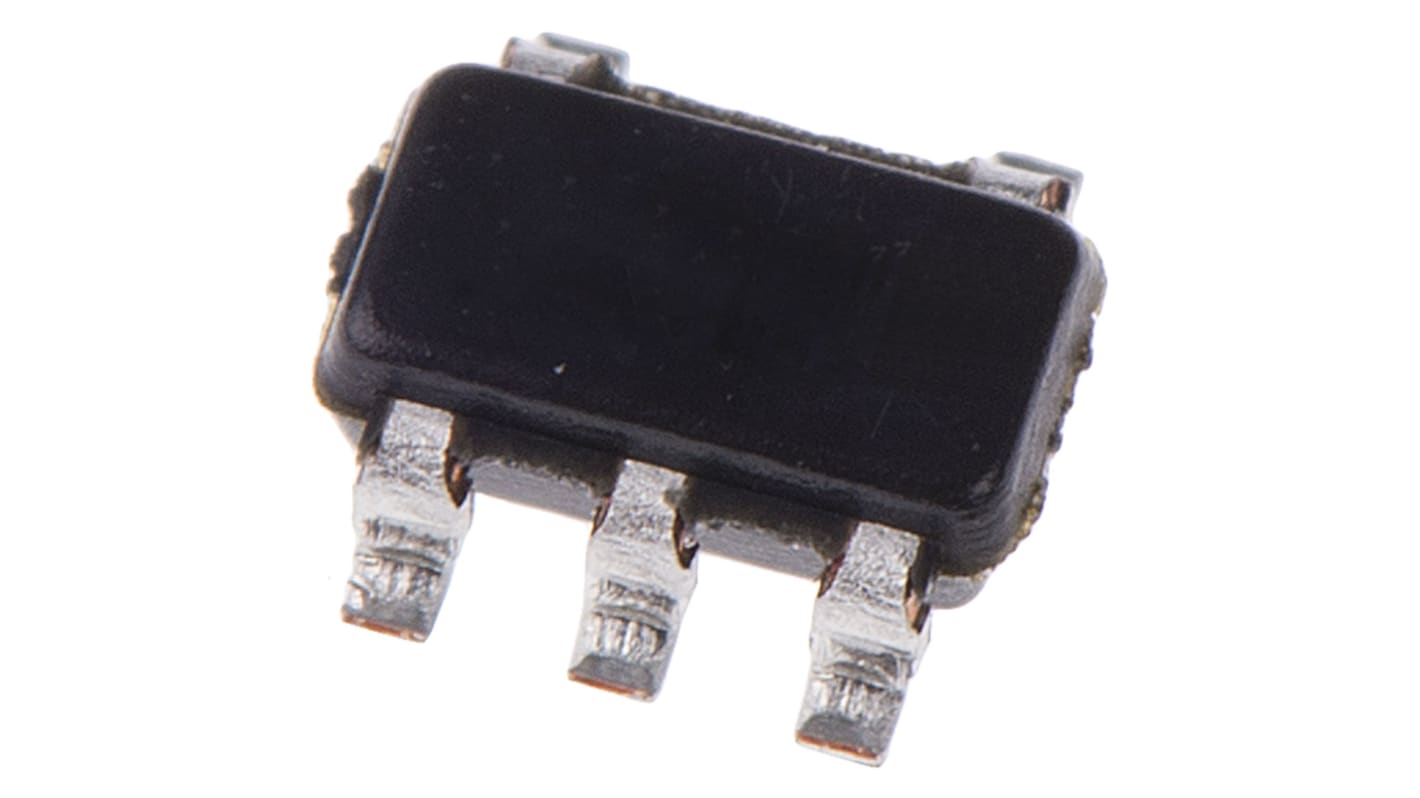

Texas Instruments LMR62421XMFE/NOPB, Boost Converter, Step Up 3A Adjustable, 2000 kHz 5-Pin, SOT-23

RS Stock No.:: 811-5863
Mfr. Part No.:: LMR62421XMFE/NOPB
Manufacturer:: Texas Instruments

Texas Instruments LMR62421XMFE/NOPB, Boost Converter, Step Up 3A Adjustable, 2000 kHz 5-Pin, SOT-23

50 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

Added

Price Each (In a Pack of 10)

MYR6.707

Units	Per Unit	Per Pack*
10 - 120	MYR6.707	MYR67.07
130 +	MYR6.505	MYR65.05
*price indicative

RS Stock No.:: 811-5863
Mfr. Part No.:: LMR62421XMFE/NOPB
Manufacturer:: Texas Instruments

Legislation and Compliance

Product Details

LMR6 Nano SIMPLE SWITCHER® Step-Up Regulator Series

LMR64010 Output Voltage up to 40V, 1A (2.7V to 14V)
LMR62014 Output Voltage up to 20V, 1.4A (2.7V to 14V)
LMR62421 Output Voltage up to 24V, 2.1A (2.7V to 5.5V)
Current-mode Step-Up (boost) converter
1.6MHz Switching Frequency
Low Shutdown Quiescent Current
Cycle-by-Cycle Current Limiting

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

SIMPLE SWITCHER® Regulators, Texas Instruments

Use for wide voltage inputs designs up to 75V, and a balance between ease of use and flexibility.

Specifications

Attribute	Value
Regulator Function	Step Up
Maximum Output Current	3A
Number of Outputs	1
Maximum Input Voltage	5.5 V
Line Regulation	0.06 %/V
Mounting Type	Surface Mount
Package Type	SOT-23
Pin Count	5
Output Type	Adjustable
Maximum Switching Frequency	2000 kHz
Switching Regulator	Yes
Dimensions	3.05 x 1.75 x 1.3mm
Maximum Output Voltage	24 V
Height	1.3mm
Minimum Operating Temperature	-40 °C
Length	3.05mm
Maximum Operating Temperature	+125 °C
Minimum Output Voltage	3 V
Minimum Input Voltage	2.7 V
Width	1.75mm
