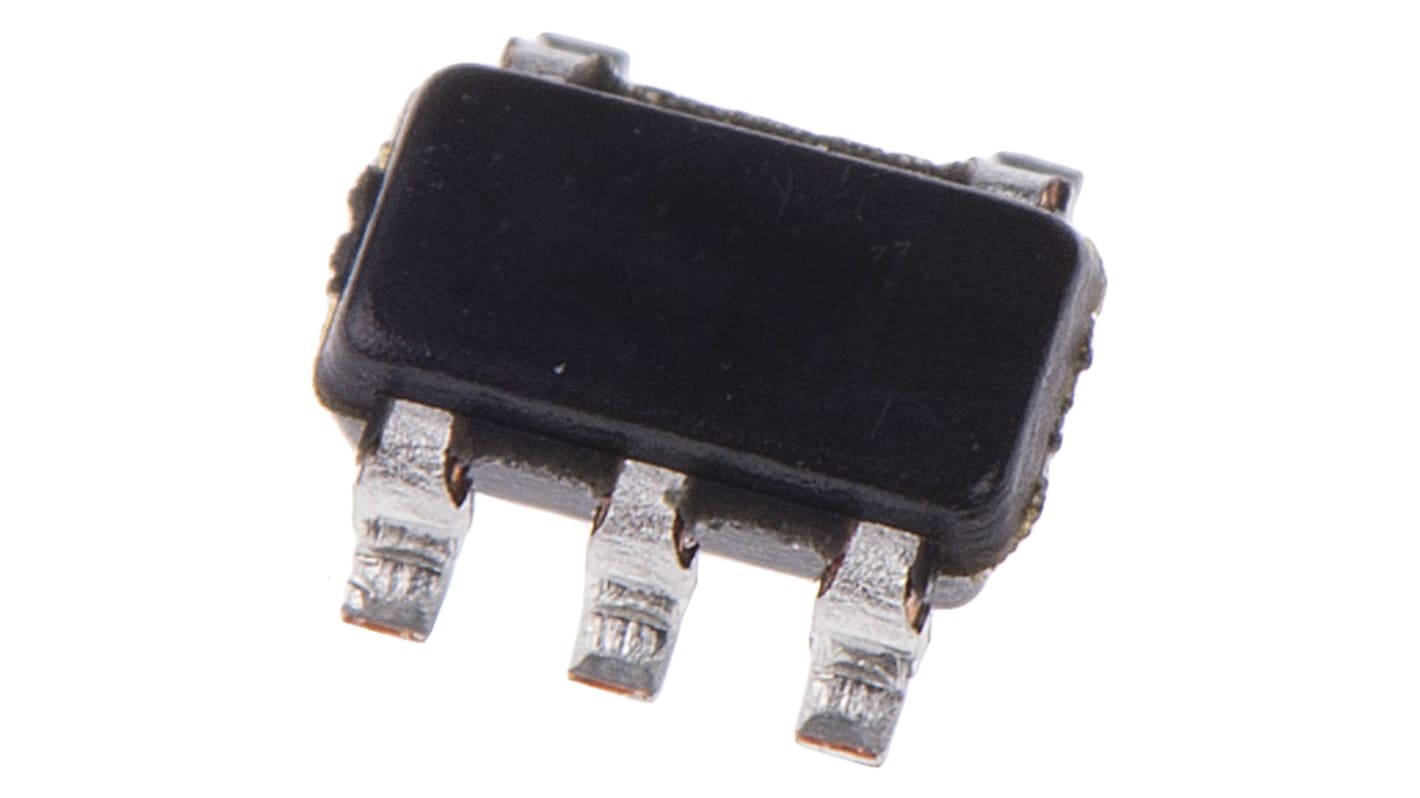

Texas Instruments LMR62014XMFE/NOPB, Boost Converter, Step Up 2A Adjustable, 3 → 20 V, 1.85 MHz 5-Pin, SOT-23

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

LMR6 Nano SIMPLE SWITCHER® Step-Up Regulator Series

LMR64010 Output Voltage up to 40V, 1A (2.7V to 14V)
LMR62014 Output Voltage up to 20V, 1.4A (2.7V to 14V)
LMR62421 Output Voltage up to 24V, 2.1A (2.7V to 5.5V)
Current-mode Step-Up (boost) converter
1.6MHz Switching Frequency
Low Shutdown Quiescent Current
Cycle-by-Cycle Current Limiting

SIMPLE SWITCHER® Regulators, Texas Instruments

Use for wide voltage inputs designs up to 75V, and a balance between ease of use and flexibility.

Specifications
Attribute Value
Regulator Function Step Up
Maximum Output Current 2A
Number of Outputs 1
Line Regulation 0.02 %/V
Mounting Type Surface Mount
Package Type SOT-23
Pin Count 5
Output Type Adjustable
Maximum Switching Frequency 1.85 MHz
Switching Regulator Yes
Dimensions 3.05 x 1.75 x 1.3mm
Height 1.3mm
Length 3.05mm
Maximum Output Voltage 20 V
Minimum Input Voltage 2.7 V
Maximum Operating Temperature +125 °C
Width 1.75mm
Maximum Input Voltage 14 V
Minimum Output Voltage 3 V
Minimum Operating Temperature -40 °C
500 In Global stock for delivery within 4 - 6 working days
Price Each (In a Pack of 10)
MYR 5.69
units
Per unit
Per Pack*
10 - 10
MYR5.69
MYR56.90
20 - 40
MYR5.419
MYR54.19
50 - 90
MYR4.923
MYR49.23
100 - 190
MYR4.882
MYR48.82
200 +
MYR4.295
MYR42.95
*price indicative
Packaging Options:
