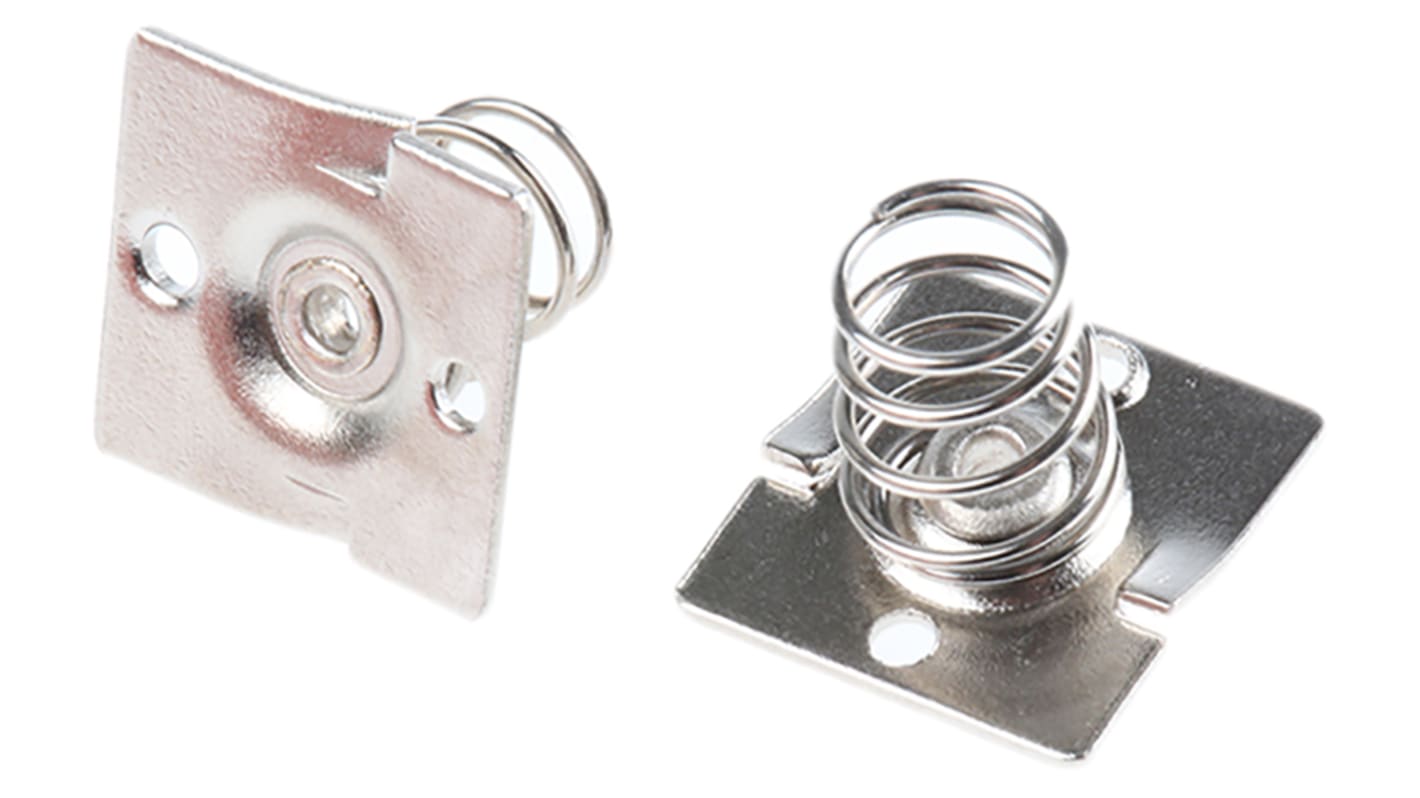

Keystone A, AA Battery Contact, Coil Spring Contact

  • RS Stock No. 324-7303
  • Mfr. Part No. 5202
  • Manufacturer Keystone
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

Contacts for battery types A; AA / AAA; AAAA; N

Single contacts for wires type A; AA (5224, 5202) or AAA; AAAA; N (5225, 52039)
Double contacts for wires type A; AA (5212) or AAA; AAAA; N (5213 with pole + right or 5214 with pole + left)
Compact size:  8 mm2 for 5225 // 5204 and 10.8 mm2 for 5224 // 5202.

Specifications
Attribute Value
For Battery Size A, AA
Number of Cells 1
Terminal Contact Material Spring Steel
Terminal Contact Type Coil Spring
260 Within 4 working day(s) (Global stock)
690 Within 4 working day(s) (Global stock)
Price Each (In a Bag of 10)
MYR 1.23
units
Per unit
Per Bag*
10 - 140
MYR1.23
MYR12.30
150 - 490
MYR1.22
MYR12.20
500 - 990
MYR1.204
MYR12.04
1000 - 4990
MYR1.188
MYR11.88
5000 +
MYR1.173
MYR11.73
*price indicative
