Mascot Lead Acid 12V 2.7A Battery Charger with UKplug
- RS Stock No. 301-4838
- Mfr. Part No. 9640000052
- Manufacturer Mascot

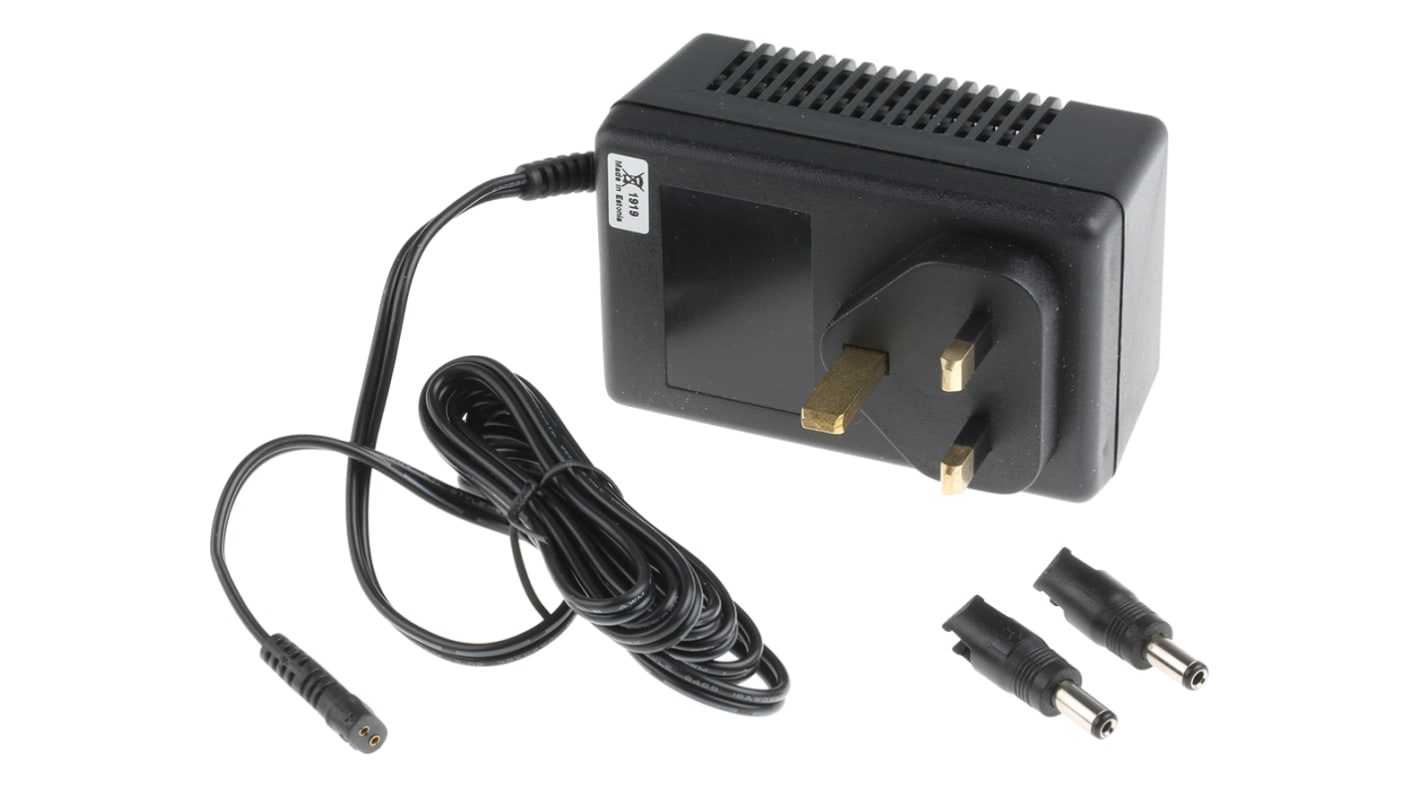

Mascot Battery Charger
The Mascot 9640 series plug-in, 3-stage, switch-mode lead-acid battery charger comes with a 3-colour LED charge status indicator. It requires input voltage between 190VAC to 264VAC or 240VDC to 360VDC. The output voltage rating is 12 and the current rating is 2.7A.
Note:
Supplied with 2.1mm and 2.5mm DC connectors
This product is supplied with a UK plug
Features and Benefits
Reverse polarity protection
Maximum output power is 32W
Low leakage current, unit can be left connected without mains input
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
| Attribute | Value |
|---|---|
| Number of Batteries Charged | 1 |
| Chemistries Charged | Lead Acid |
| Plug Type | UK |
| Batteries Included | No |
| Dimensions | 100 x 51 x 63mm |
| Charge Current | 2.7A |
| Input Voltage | 190 → 264 V ac, 240 → 360 V dc |
| Maximum Output Power | 32W |
| Number of Charge Stages | 3 |
| Output Voltage | 12V |
| Weight | 250g |
