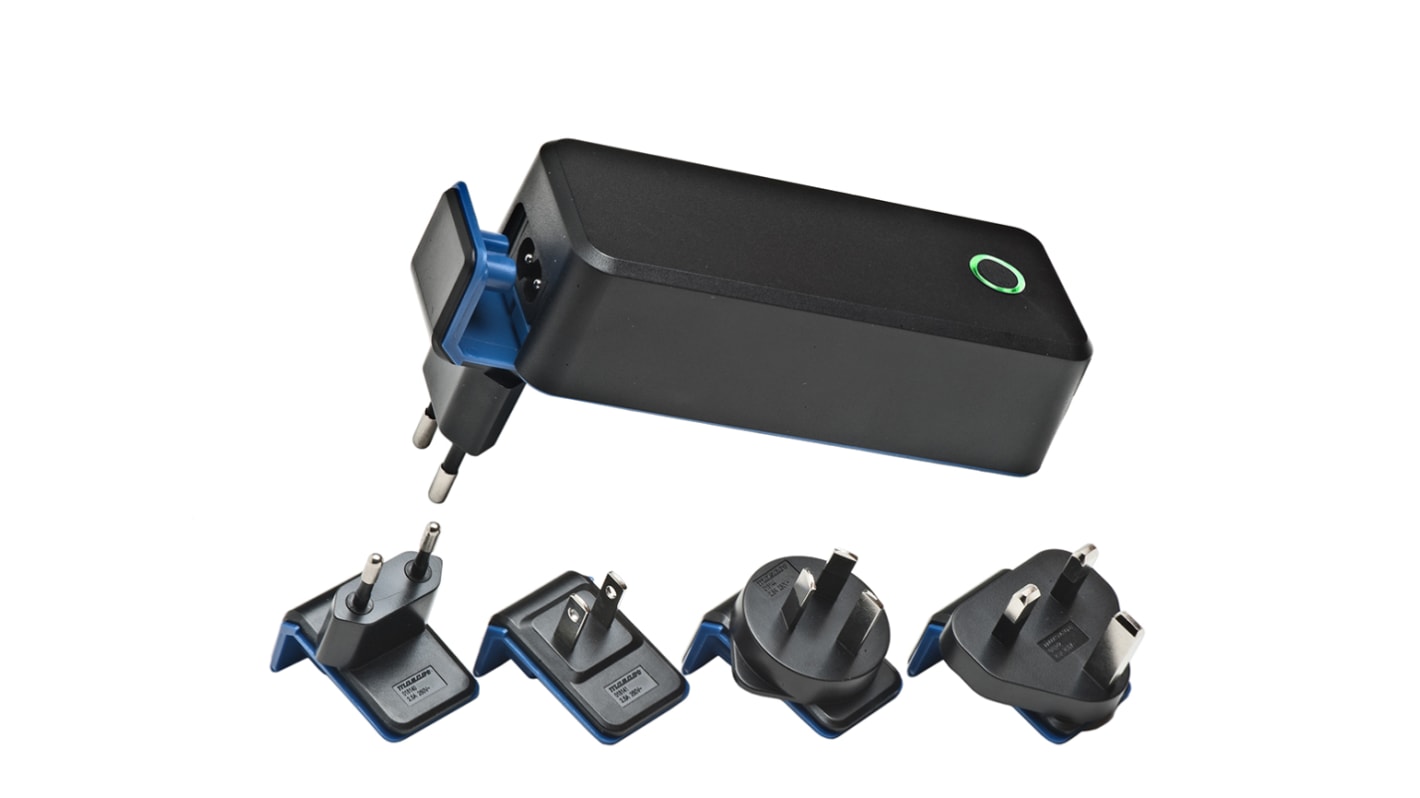

Mascot 4 Cell 28W Battery Pack Charger for Lithium-Ion batteries

  • RS Stock No. 183-1594
  • Mfr. Part No. 3546000054
  • Manufacturer Mascot
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): EE
Product Details

3-step charge control with current detection
Universal input voltage (90-264 VAC)
Wake up and low current start-up of deeply discharged batteries
Error indication for reverse polarity, short circuit, charging of lower voltage batteries and safety timer run-out

Specifications
Attribute Value
Battery Sizes Charged Battery Pack
Number of Cells Charged 4
Chemistries Charged Lithium-Ion
Plug Type AUS, EU, UK, USA
Dimensions 124 <font face="symbol">´</font> 50 <font face="symbol">´</font> 37mm
Input Voltage 90 → 264V ac
Maximum Output Power 28W
Output Connectors 2.1mm & 2.5mm DC Plugs
Weight 220g
1 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 408.67
units
Per unit
1 +
MYR408.67
