SIP Variable Voltage, 45A Battery Charger, EU Plug

  • RS Stock No. 137-0768
  • Mfr. Part No. 5536
  • Manufacturer SIP
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): IT
Product Details

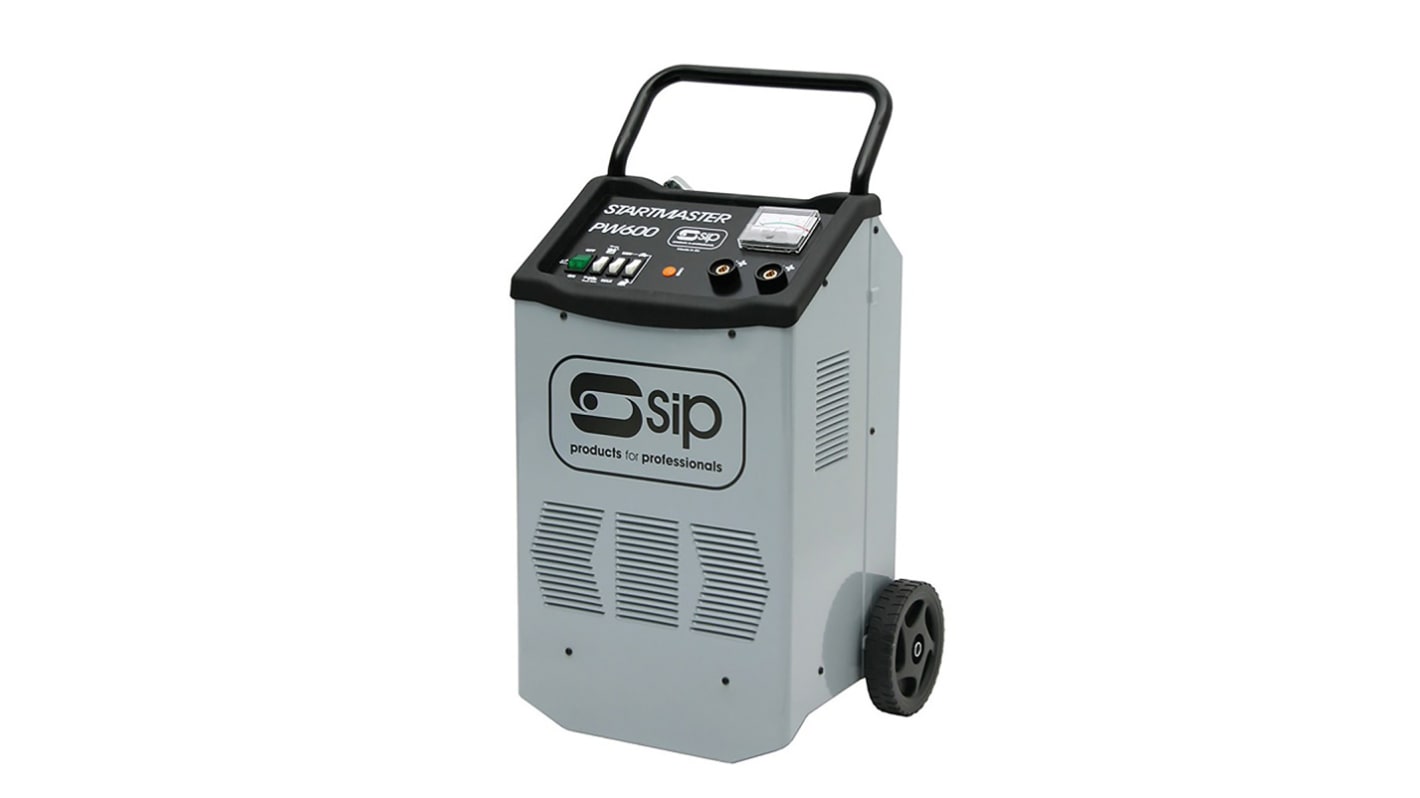

SIP Professional Startmaster Charger/Starter

SIP Professional Startmaster Charger/Starters, professional and reliable starter/charger ideal for all garages and workshops. Offers an ammeter which clearly and accurately indicates charging levels and 3 charge rate levels for fast and slow charging.

Feature and Benefits

• Ammeter • 3 charge rate levels
• Fast and slow charging
• 12 /24 V

PW600

• 230 V (16amp) supply • 12/24 V charging voltages
• 45 A maximum charging current
• 300 A maximum boost rate
• 280 Ah battery capacity
• Ammeter for charging indication
• 3 charge rate levels
• Insulation class: class F
• Weight 21 kg

PW760

• 230 V (20amp) supply • 12/24 V charging voltages
• 57 A maximum charging current
• 380 A maximum boost rate
• 340 Ah battery capacity
• Ammeter for charging indication
• 3 charge rate levels
• Insulation class: class F
• Weight 21 kg

Options

PW600 - RS Stock no: 137-0768 PW760 - RS Stock no: 137-0769

Application information

SIP Startmaster professional battery chargers designed with a reliable tough steel case making it ideal for garages and workshops.

SIP Battery Charger

The SIP PW600 professional starter and charger is capable of providing a reliable service for indoor applications requiring 12V to 24V charging voltage and 45A charging current. The heavy-duty charge leads and crocodile clips as standard ensures long life and lasting performance. Its input supply electric current rating is 16A and voltage rating is 230VAC.

Features and Benefits

Tough steel casing Dual voltage charging for high versatility 300amp maximum boost rate 280Ah maximum battery capacity 45amp maximum charging current Clear and easy-to-read ammeter Wheel mount for easy movement 3 different charge levels Short-circuit and overload protection Reverse polarity protection

Applications

Workshops Garages

Certifications

CE certified Class F insulation CE EN 55014-1:2006 EN 55014-2/A1:2008 EN 61000-3-2:2006 EN 61000-3-3:2008 EN 61029-1:2009 EN ISO 12100-2/A1:2009

Specifications
Attribute Value
Chemistries Charged Lead Acid
Plug Type EU
Model Number 05536
Battery Type Charged Lead Acid
Input Voltage 230V ac
Number of Charge Stages 3
Weight 21kg
5 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 2,078.35
units
Per unit
1 +
MYR2,078.35
