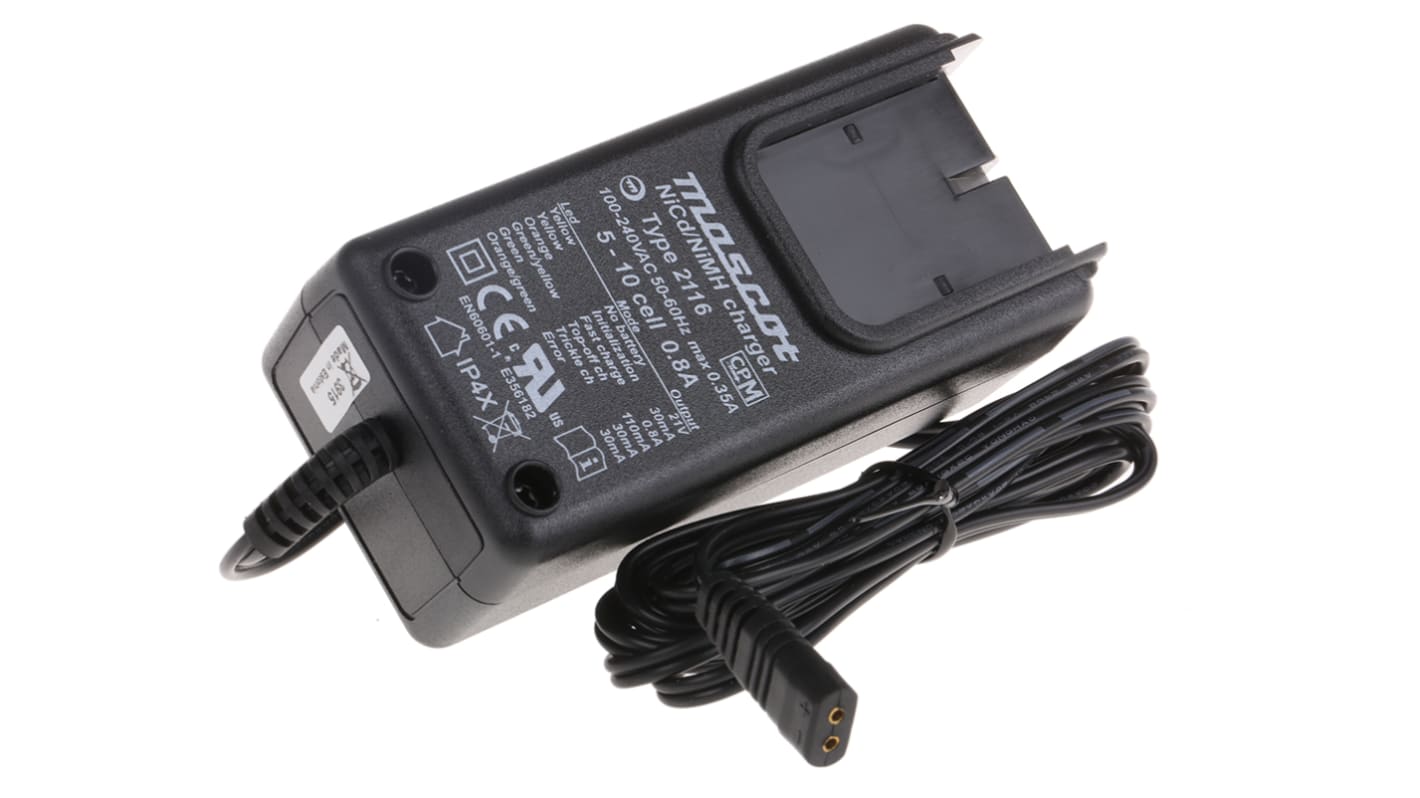

Mascot 5 → 10 Cell 800mA 16W Battery Pack Charger for NiCd, NiMH batteries, AUS, EURO, UK, USA Plug

  • RS Stock No. 211-354
  • Mfr. Part No. 2116 5-10 ELEMENTS
  • Manufacturer Mascot
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): NO
Product Details

Chargers for NiMH and NiCd batteries, 16 W, 2116 Series

Fast, programmable Ni/Cd and Ni/MH battery charger.
Automatic detection of completed charge.
Protected against current overloads and polarity reversal.
Includes EU, UK, US & AUS input plugs plus 2.1mm & 2.5mm output plugs
Approved for medical devices: EN 60601

Supplied with

EU, UK, US & AUS input plugs plus 2.1mm & 2.5mm output plugs

Mascot NIMH Charger Cells

The Mascot 800mA programmable battery pack charger is used for charging 5 to 10 cells of NIMH/NICD batteries. This battery charger requires an input voltage that ranges between 90VAC and 264VAC. This battery charger is ideal for medical applications.

Features and Benefits

• Maximum output power is 16W
• CPM-computer programmable
• Microprocessor offering: charge detection options (one or more): dV, dt/dt, 0 dV, timer
• Safety timer, dV threshold, and temperature gradient adjustment
• Exchangeable AC and DC plugs
• Custom specifications on request

Certifications

• UL approved
• EN 60601-1 3ed

Approvals

EN 60601 - Medical

Specifications
Attribute Value
Battery Sizes Charged Battery Pack
Chemistries Charged NiCd, NiMH
Number of Cells Charged 5 → 10
Plug Type AUS, EURO, UK, USA
Dimensions 90 x 45 x 32mm
Input Voltage 90 → 264V ac
Maximum Output Power 16W
Weight 125g
9 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 312.70
units
Per unit
1 +
MYR312.70
