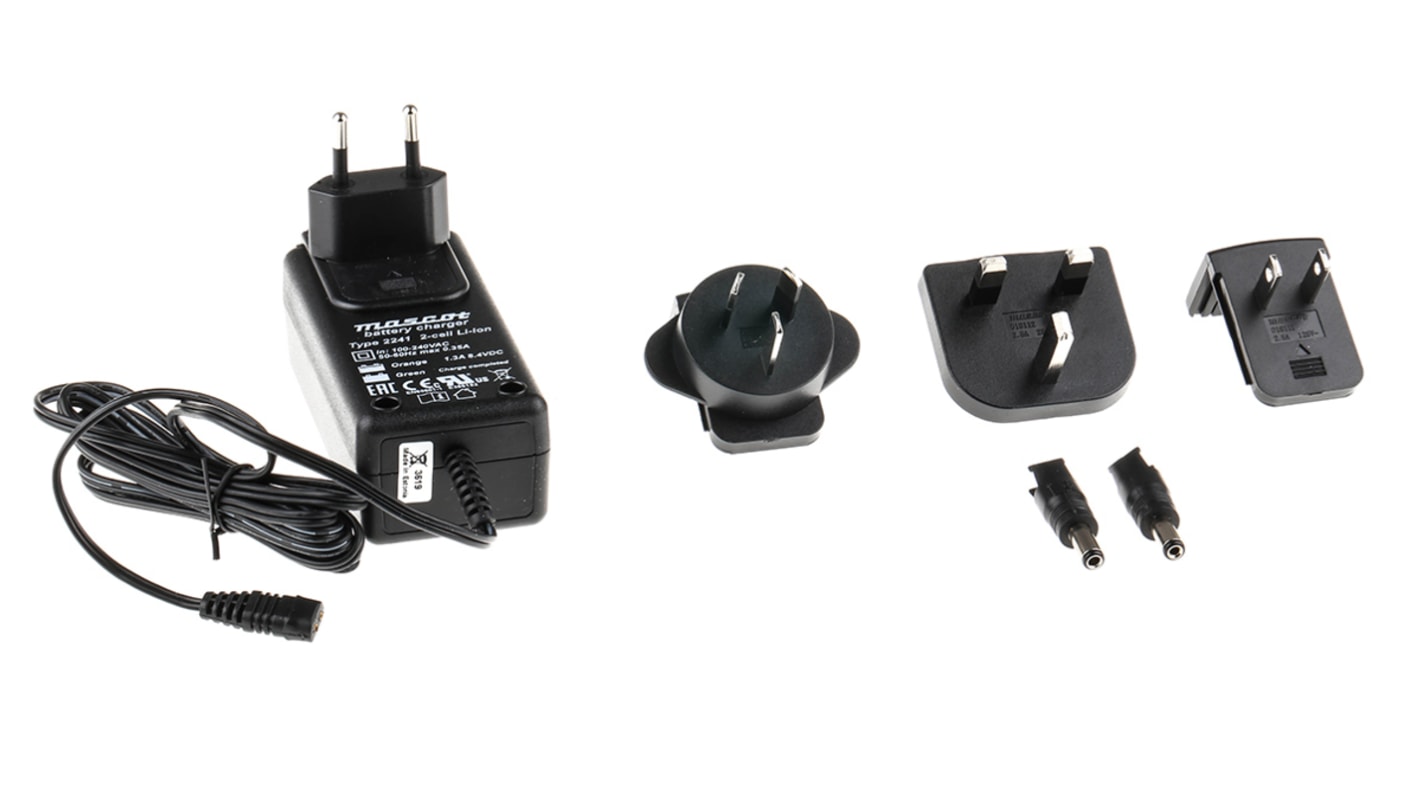

Mascot 2 Cell 8.4V 1.3A 10.9W Battery Pack Charger for Lithium-Ion batteries, AUS, EURO, UK, USA Plug

  • RS Stock No. 211-247
  • Mfr. Part No. 2241 LI 2 ELEMENTS
  • Manufacturer Mascot
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): NO
Product Details

Li-Ion battery pack chargers, 2240 LI series

Cut-out power supply charger for Li-Ion batteries.
3 charge control stages.
Automatic detection of completed charge.
Protected against current overloads and polarity reversal.
Includes EU, UK, US & AUS input plugs plus 2.1mm & 2.5mm output plugs
Approved for medical devices: EN 60601

Supplied with

EU, UK, US & AUS input plugs plus 2.1mm & 2.5mm output plugs

Mascot Battery Charger

The Mascot Li-Ion charger is used for charging lithium-ion batteries. This 3-stage battery charge requires input supply voltage ranging between 90VAC and 264VAC. This lithium-ion battery charger is ideal for medical applications. The 3-stage regime permits the charger to be left connected indefinitely. The output supply voltage rating is 8.4V.

Features and Benefits


3-step charge control with current detection as charge termination
• Charging 1-7 battery cells
• Order mains cord separately
• Waterproof (IP67) version available
• Exchangeable AC and DC plugs
• Custom specifications on request

Certifications


EN 60601-1 3ed
• EN 60950,
• EN 60335-2-29

Li-Ion battery pack chargers

Specifications
Attribute Value
Battery Sizes Charged Battery Pack
Chemistries Charged Lithium-Ion
Number of Cells Charged 2
Plug Type AUS, EURO, UK, USA
Dimensions 90 x 45 x 32mm
Input Voltage 90 → 264V ac
Maximum Output Power 10.9W
Output Connectors Plug
Weight 115g
6 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 315.98
units
Per unit
1 +
MYR315.98
