- RS Stock No.:
- 180-6655
- Manufacturer:
- RS PRO
6 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR17.55
Units | Per Unit |
1 - 4 | MYR17.55 |
5 - 24 | MYR15.80 |
25 + | MYR13.00 |
- RS Stock No.:
- 180-6655
- Manufacturer:
- RS PRO
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
The RS PRO A standard in-line 4mm banana plug with a stainless steel contact spring and gold plated brass pin. The large rear diameter of this plug will accept cables with a conductor diameter of up 5.5mm (10 awg). The lead wire is held by soldering in a large solder bucket. The product is also supplied with a large diameter insulating cover that accepts cables with a maximum outside diameter of 7,1mm.

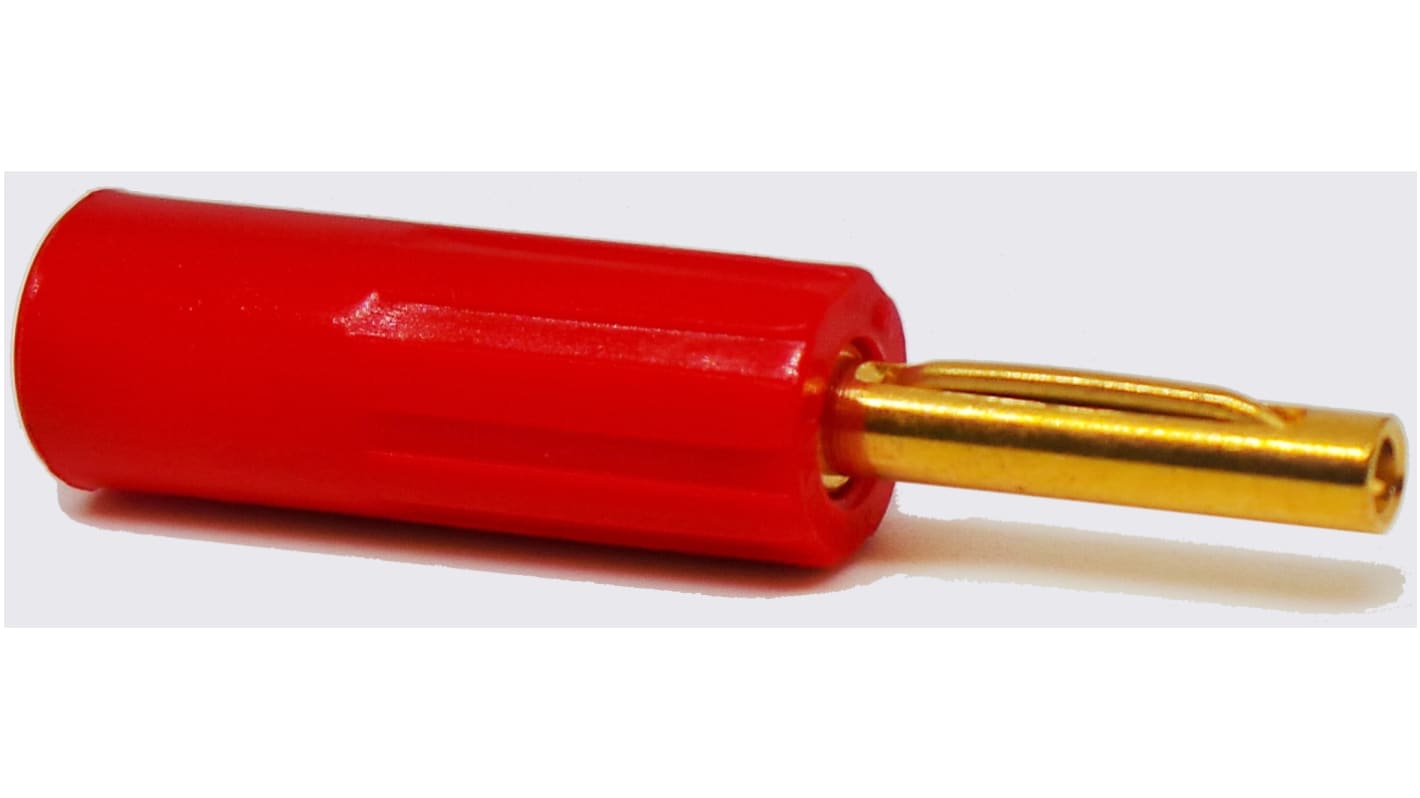

4mm Banana Plug - Red
Specifications
Attribute | Value |
---|---|
Colour | Red |
Gender | Male |
Termination Method | Solder |
Voltage Rating | 50V |
Connector Size | 4 mm |
Current Rating | 16A |
Contact Plating | Gold |
Length | 48.75mm |
Contact Material | Brass |
Type | Banana Plug |
Insulation Material | Acetal |
