- RS Stock No.:
- 180-6652
- Manufacturer:
- RS PRO
2 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
1028 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
Was MYR4.63
You pay
MYR4.40
Units | Per Unit |
1 - 2 | MYR4.40 |
3 - 14 | MYR4.31 |
15 + | MYR3.54 |
- RS Stock No.:
- 180-6652
- Manufacturer:
- RS PRO
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

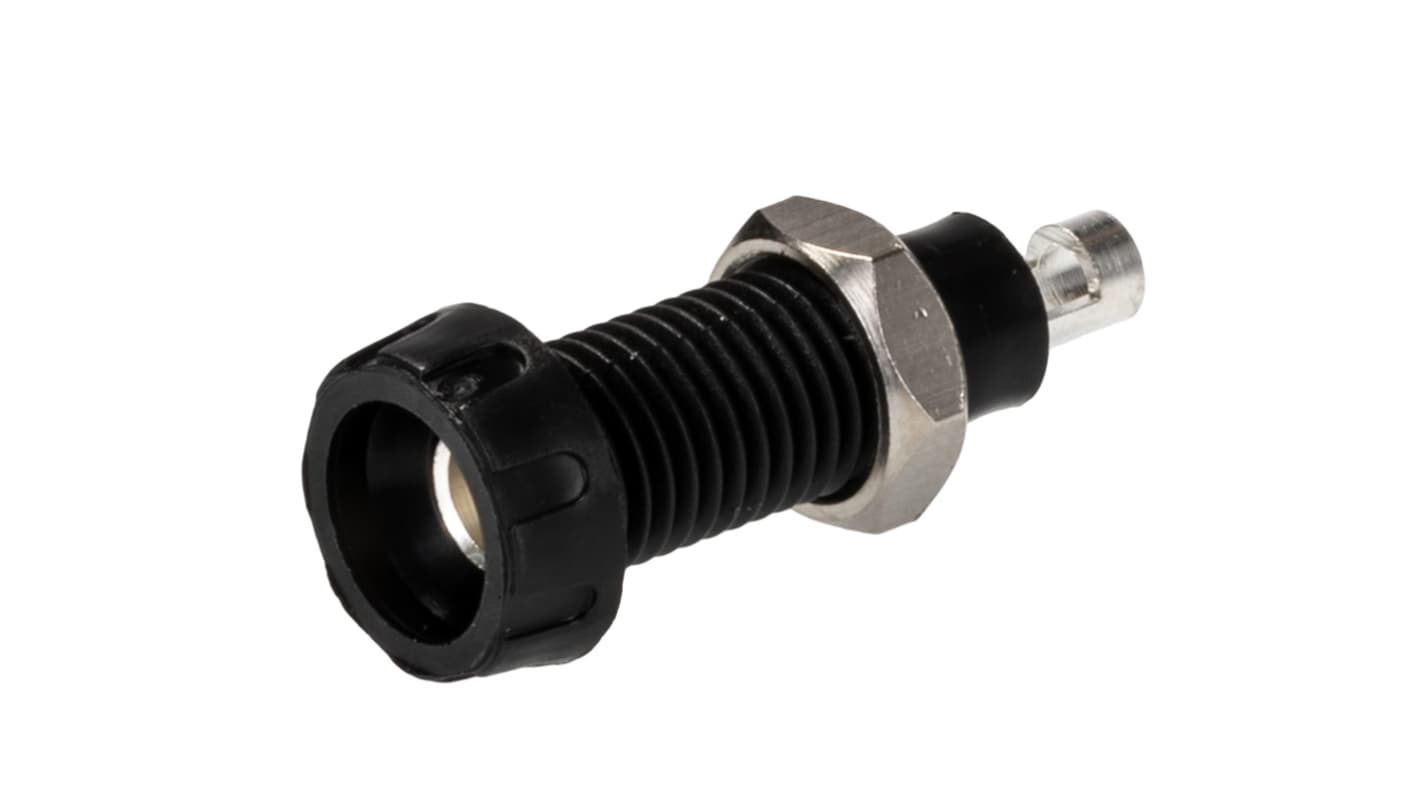

The RS PRO Rigid panel mounting socket retained in place by a nut, which accepts 4mm diameter plugs. It is suitable for panels up to 13.5mm thick. Connection is via solder bucket although a solder tag version is available. The socket is silver plated for low contact resistance and is available in a range of standard colours
4mm panel mount socket - Black
Specifications
Attribute | Value |
---|---|
Colour | Black |
Gender | Female |
Termination Method | Solder |
Voltage Rating | 50V |
Current Rating | 10A |
Connector Size | 4 mm |
Contact Plating | Silver Plated |
Length | 28.5mm |
Contact Material | Brass |
Type | Banana Plug |
Insulation Material | Polypropylene |
