Hirschmann Test & Measurement Red Female Banana Socket, 4 mm Connector, Solder Termination, 32A, 1000V ac/dc, Gold

RS Stock No.:: 737-819
Mfr. Part No.:: 972354101
Manufacturer:: Hirschmann Test & Measurement

Hirschmann Test & Measurement Red Female Banana Socket, 4 mm Connector, Solder Termination, 32A, 1000V ac/dc, Gold

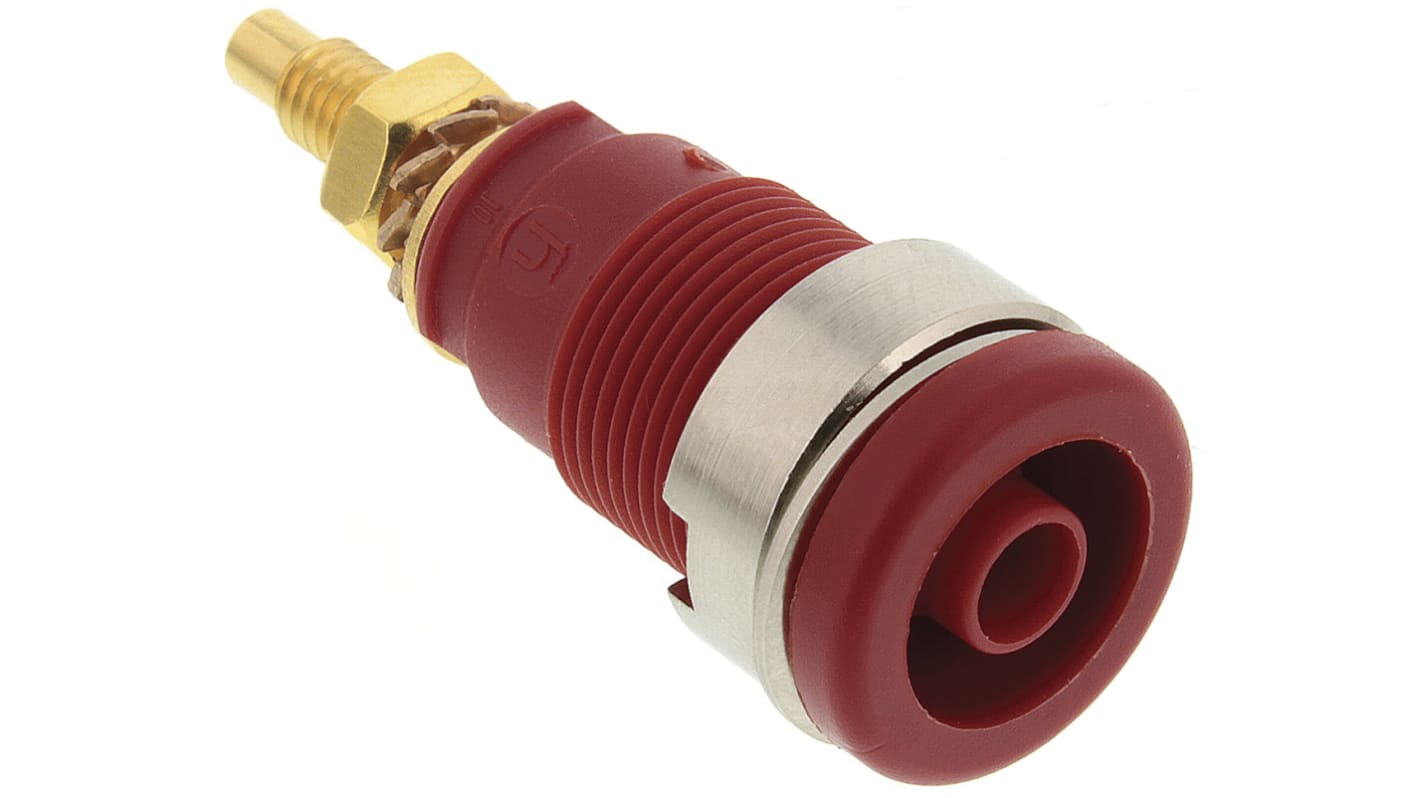

This image is representative of the product range

24 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

641 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

Added

Price Each

Was MYR24.22

You pay

MYR23.01

Units	Per Unit
1 - 124	MYR23.01
125 - 249	MYR22.53
250 +	MYR21.85

RS Stock No.:: 737-819
Mfr. Part No.:: 972354101
Manufacturer:: Hirschmann Test & Measurement

Technical data sheets

SEB 2600 M4 Sockets

Legislation and Compliance

COO (Country of Origin):: DE

Product Details

SEB 2600 G CAT III M4 4mm Safety Test Sockets

Hirschmann Test and Measurement SEB 2600 G M4, CAT III 4mm gold plated brass chassis mount touch protected safety test sockets, M12 threaded plastic body (PA) and M4 threaded termination with solder connection. These SEB 2600 G M4 4mm test sockets are ideal for installation in equipment chassis and switch panels with a wall thickness of to up 6mm, installation hole required is 12.2mm in diameter.

Length: 38.5 mm
Mounting hole Ø: 12 mm
4 mm safety panel socket
M4 screw connection
For installation in control panels and unit chassis up to a maximum wall thickness of 6 mm
Installation opening: Ø 12.2 mm
Connection type: Screws/soldering
CATII, IEC61010

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Specifications

Attribute	Value
Colour	Red
Gender	Female
Termination Method	Solder
Voltage Rating	1000V ac/dc
Current Rating	32A
Connector Size	4 mm
Contact Plating	Gold
Length	39mm
Contact Material	Brass
Type	Banana Socket
