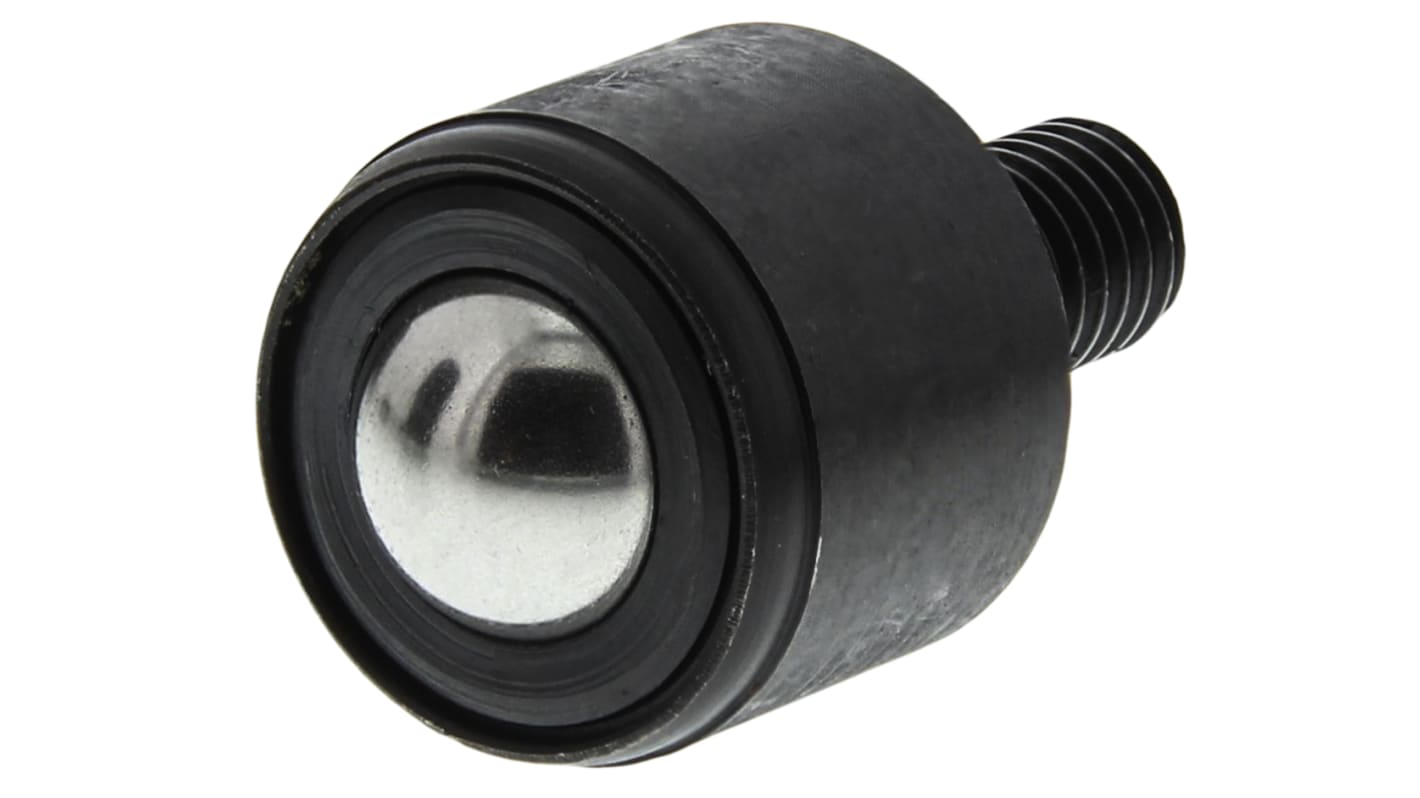

ALWAYSE Ball Transfer Unit with 12.7mm diameter Steel ball

RS Stock No.:: 331-5743
Mfr. Part No.:: 7106
Manufacturer:: ALWAYSE

ALWAYSE Ball Transfer Unit with 12.7mm diameter Steel ball

4012 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

Added

Price Each

MYR80.15

Units	Per Unit
1 - 5	MYR80.15
6 - 11	MYR78.46
12 +	MYR76.11

RS Stock No.:: 331-5743
Mfr. Part No.:: 7106
Manufacturer:: ALWAYSE

Technical data sheets

Legislation and Compliance

RoHS Status: Not Applicable

COO (Country of Origin):: GB

Product Details

ALWAYSE Hevi-load Ball Transfer Unit

The ALWAYSE bolt mount Hevi-load ball transfer unit is a highly efficient device with a maximum load capacity is 35kg. This unit is used to move or transfer loads in all direction with a maximum speed of 1m/s. This unit is plated with zinc/iron alloy finish for protection in use and is available in a wide choice of load capacities, sizes and fixings.

Features and Benefits

Ball diameter is 12.7mm
Two spanner flats for fixing and removing
Pattern Hevi-load 1
Bolt fixing
Case material is steel
Load ball material is steel
Operating temperature ranging between -30°C and 70°C

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Specifications

Attribute	Value
Ball Diameter	12.7mm
Mounting Type	Bolt
Maximum Load	35kg
Load Ball Material	Steel
Case Material	Steel
