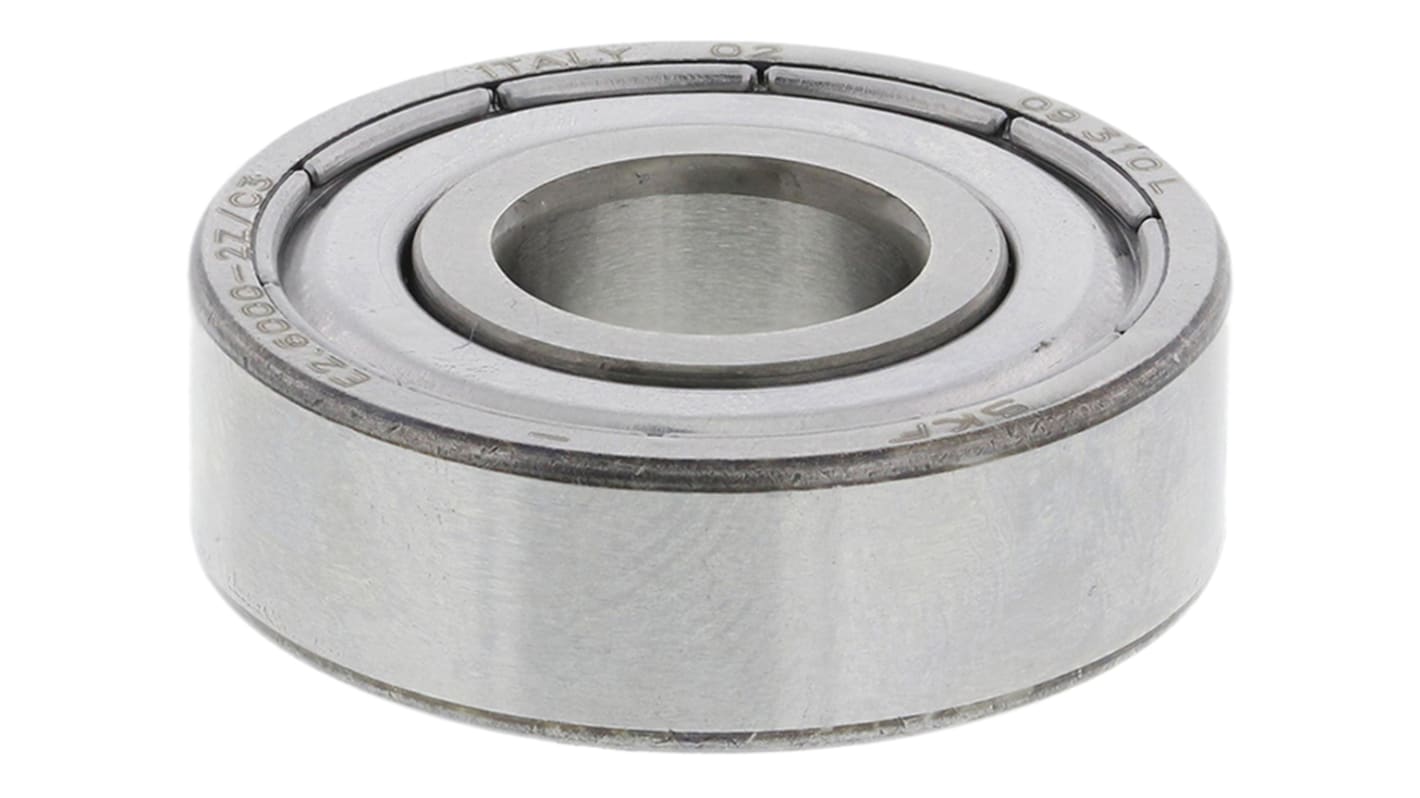

10mm Deep Groove Ball Bearing 26mm O.D

  • RS Stock No. 719-2014
  • Mfr. Part No. E2.6000-2Z/C3
  • Manufacturer SKF
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
Product Details

SKF E2 Energy Efficient Bearings

SKF E2 Energy Efficient Bearings are deep-groove, shielded, ultra-low friction bearings that feature an optimised design, balanced between internal geometry, grease and cage type.

With 30 to 50% lower friction when compared with standard SKF bearings, the energy savings achievable when using SKF Energy Efficient Bearings are substantial, and the bearing life is extended significantly - in most cases more than double.

SKF E2 Energy Efficient Bearings offer ultra-low friction and typically generate less heat and can operate at higher speeds than ISO or SKF Explorer Bearings.

Dimensionally fully-compatible with standard bearings

Typical applications for SKF Energy Efficient Bearings include:

Electric motors up to 37kW (50HP)
Light to medium-loaded machines with shaft diameters up to 60mm
Excellent drop-in replacement for in-service electric motors

//media.rs-online.com/t_line/L0286745-02.gif
Specifications
Attribute Value
Inside Diameter 10mm
Outside Diameter 26mm
Ball Bearing Type Deep Groove
Race Width 8mm
End Type Shielded
Number of Rows 1
Static Load Rating 1.93kN
Material Steel
Cage Material Fibreglass Reinforced Composite Polymer
Race Type Plain
Dynamic Load Rating 4.62kN
Bore Type Parallel
87 Within 4 working day(s) (Global stock)
140 Within 4 working day(s) (Global stock)
Price Each
MYR 53.03
units
Per unit
1 - 5
MYR53.03
6 - 24
MYR51.11
25 +
MYR49.65
